Rear Window Wiper Motor -V12-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

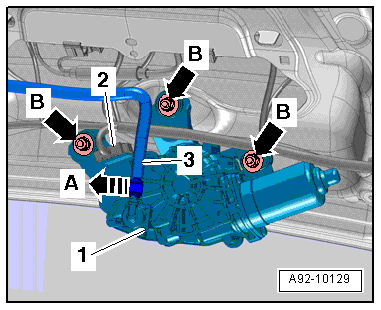

Fig 1: Disconnecting Electrical Connector

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Remove the wiper arm, refer to WIPER ARM, REMOVING AND INSTALLING .

-- Remove the lower rear lid trim panel, refer to LOWER REAR LID TRIM PANEL, REMOVING AND INSTALLING .

-- Disconnect the connector -2-.

-- Remove the clip -arrow A- and remove the washer fluid line -3- from the spray nozzle connecting pipe.

-- Remove the nuts -B arrows- and remove the Rear Window Wiper Motor -V12- -1-.
