Left/Right Front Entry Lamp -W31- / -W32-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

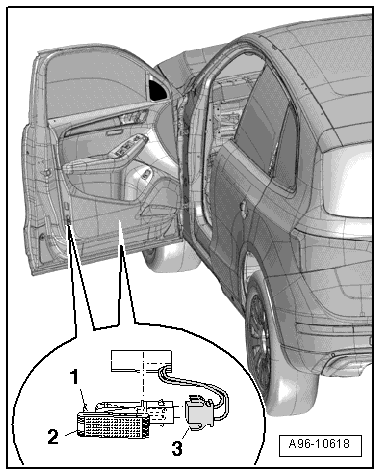

Fig 1: Identifying Entry Lights And Door Warning Lights

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Press the retaining tab -1- in using a flat-head screwdriver and pry the door warning lamp or entry lamp -2- out.

-- Disconnect the connector -3-.

-- Release the retaining clips -arrows- and remove the cover -1- over the bulb.

Fig 2: Releasing Clips And Pulling Cover Off Above Light Bulb

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bulb -1- on the rear side of the entry lamp from the socket -2-.

Fig 3: Door Safety Light/Entry Light Bulb

Courtesy of AUDI OF AMERICA, LLC
