Rear Lid Lock Cylinder Unlock Button -F248-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Rear Lid Lock Cylinder Unlock Button Harness Connectors

Courtesy of AUDI OF AMERICA, LLC

-- Remove the lower rear lid trim panel, refer to LOWER REAR LID TRIM PANEL, REMOVING AND INSTALLING .

-- Disconnect the connectors -2 and 4- and the antenna wire -1-.

-- Remove the nuts -3 and 5- and bolts -2 and 6-.

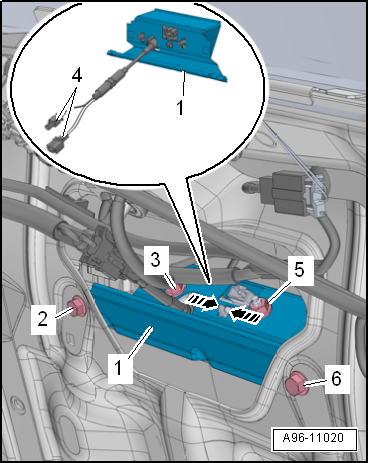

Fig 2: Removing Anti-Theft Protection Plate

Courtesy of AUDI OF AMERICA, LLC

-- Open the tabs -arrows- and remove the anti-theft protection -1- by guiding the wires -4- through the opening.

-- Release the side tabs -A arrows- and remove the button -1- toward the outside -arrow B-.

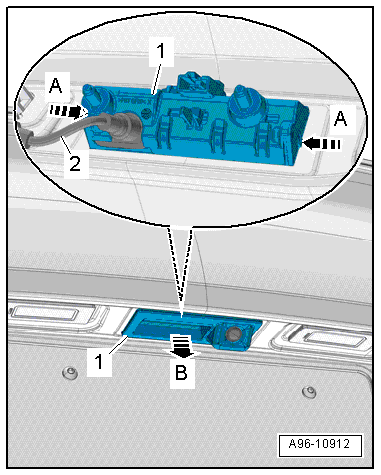

Fig 3: Removing Rear Lid Lock Cylinder Unlock Button

Courtesy of AUDI OF AMERICA, LLC

-- Guide the electric wire -2- out through the opening.
