Rear Lid Lock Button in Luggage Compartment -E406-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

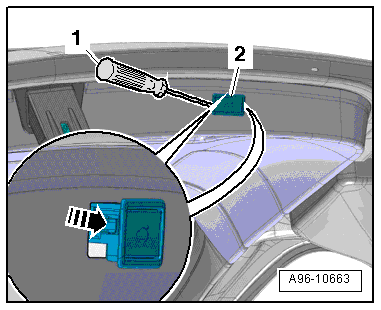

Fig 1: Identifying Rear Lid Lock Button In Luggage Compartment
GWWA96-10663Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Release the left and right clips -arrow- with a narrow screwdriver -1- on the Rear Lid Lock Button in Luggage Compartment -E406- -2-.

-- Carefully remove the button from the rear lid trim panel.

-- Disconnect the connector.
