Parts Location [08/2013 - ]: Illustration

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

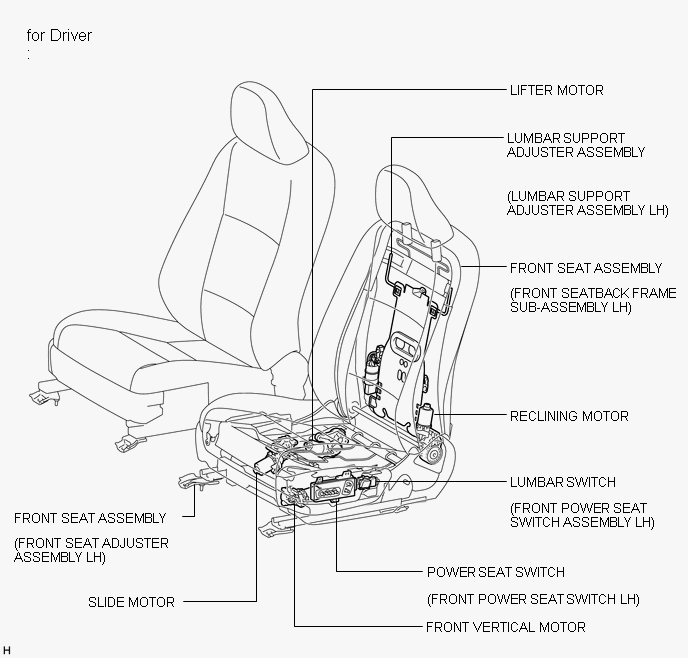

Fig 1: Identifying Front Power Seat Control System Components Location (W/O Memory) (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

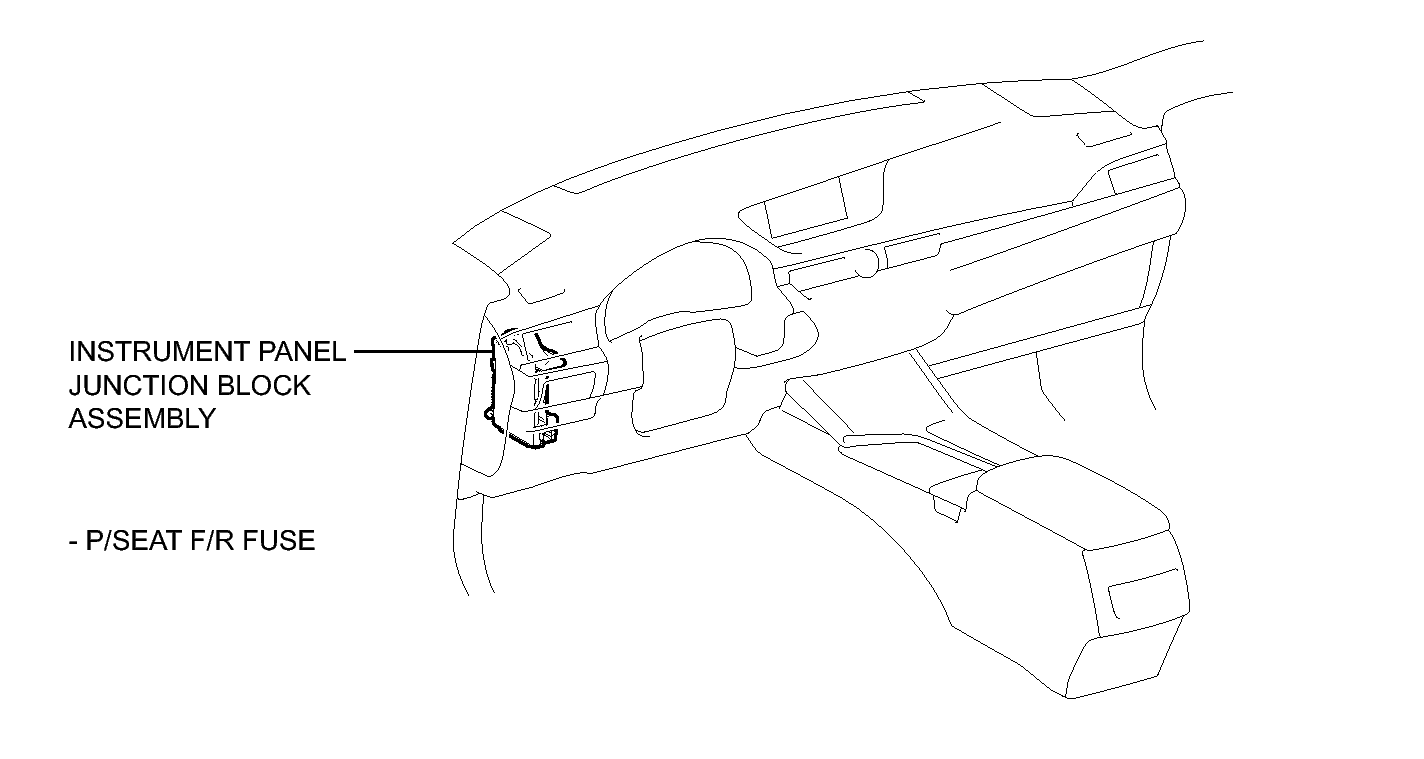

Fig 1: Identifying Front Power Seat Control System Components Location (W/O Memory) (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

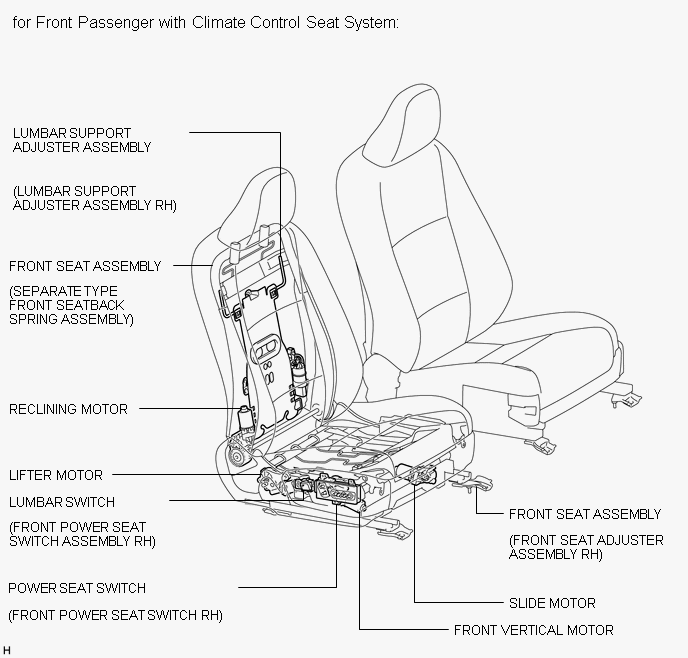

Fig 1: Identifying Front Power Seat Control System W/ Climate Control Seat System Components Location (W/O Memory) (3 Of 4)

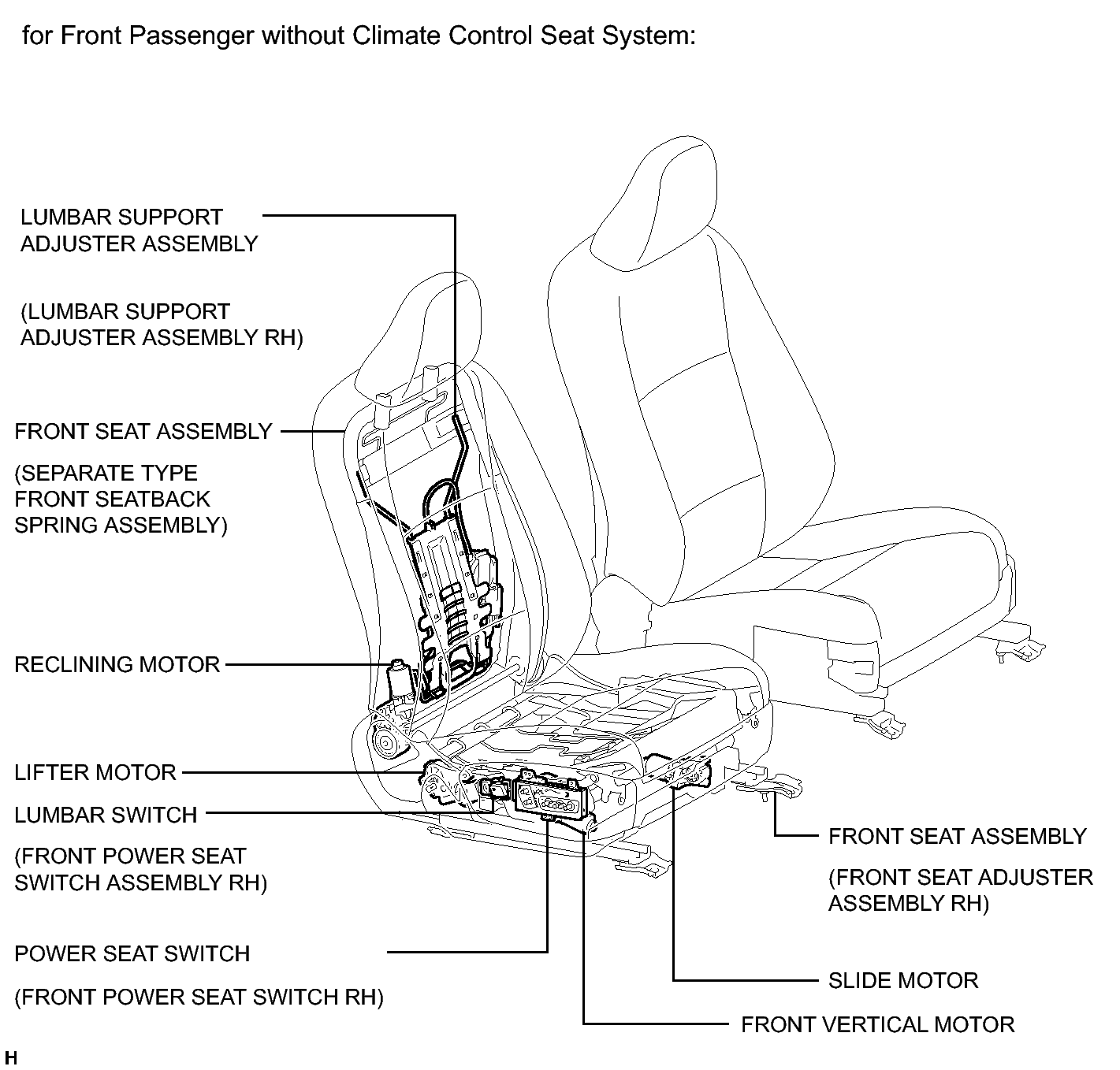

Fig 1: Identifying Front Power Seat Control System W/O Climate Control Seat System Components Location (W/O Memory) (4 Of 4)
