Power Source Mode does not Change to ON (IG and ACC) [08/2013 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

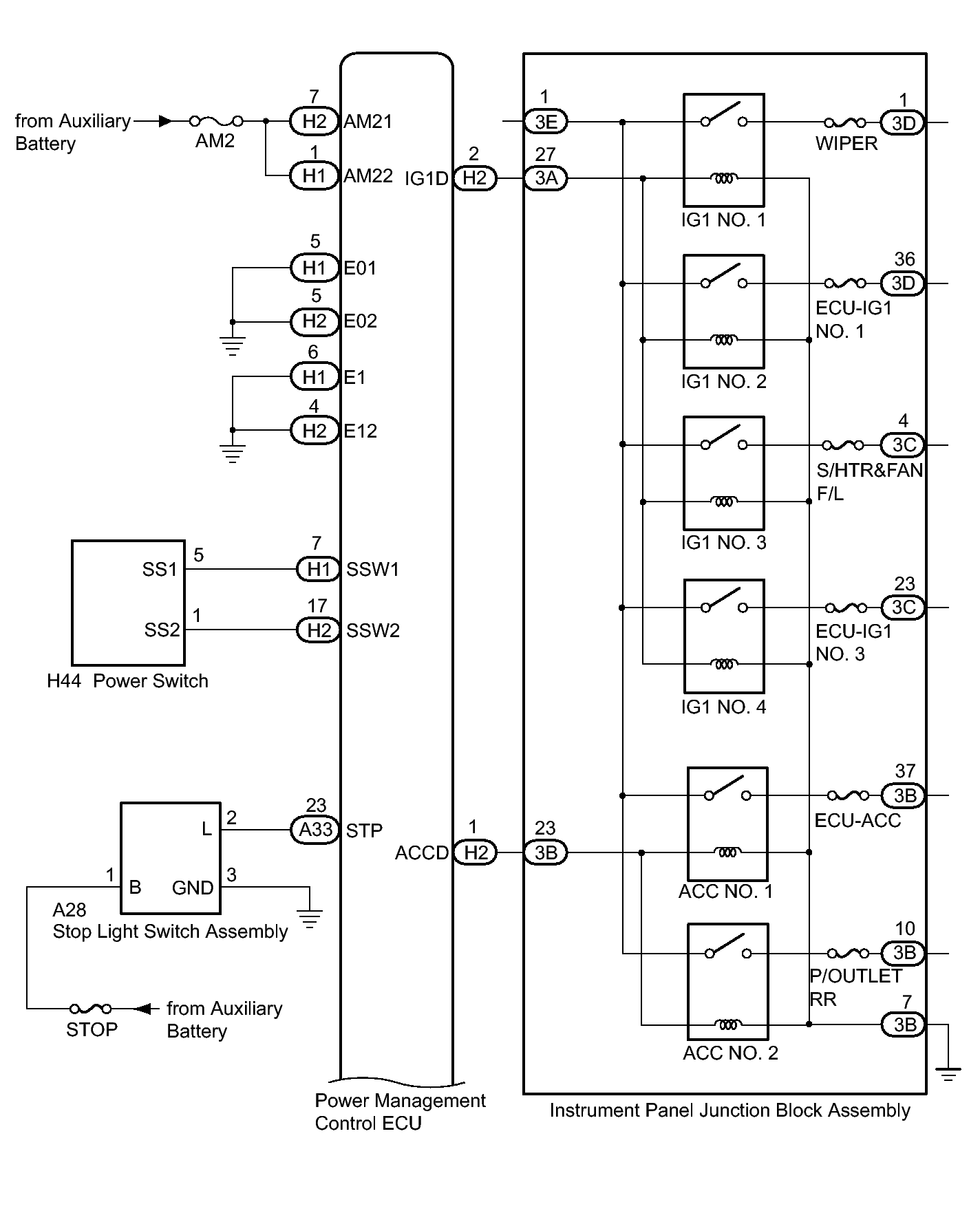

Fig 1: Identifying Power Source Mode Wiring Diagram (1 Of 2)
GTY459290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Power Source Mode Wiring Diagram (2 Of 2)
GTY407100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
