Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work. Refer to PRECAUTION [08/2013 - ] .

  2. REMOVE LUGGAGE TRIM SERVICE HOLE COVER  . Refer to REMOVAL [08/2013 - ] - Step 2
  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION [08/2013 - ] .

  4. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG  . Refer to DISASSEMBLY [08/2013 - ] - Step 4
  5. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL  . Refer to DISASSEMBLY [08/2013 - ] - Step 5
  6. REMOVE DOOR PULL HANDLE COVER  . Refer to DISASSEMBLY [08/2013 - ] - Step 6
  7. REMOVE REAR DOOR NO. 1 STIFFENER CUSHION  . Refer to DISASSEMBLY [08/2013 - ] - Step 7
  8. REMOVE COURTESY LIGHT ASSEMBLY  . Refer to REMOVAL [08/2013 - ] - Step 2
  9. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY  . Refer to DISASSEMBLY [08/2013 - ] - Step 9
  10. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP  . Refer to DISASSEMBLY [08/2013 - ] - Step 13
  11. REMOVE REAR SIDE CURTAIN ASSEMBLY (w/ Rear Door Sunshade)  . Refer to DISASSEMBLY [08/2013 - ] - Step 14
  12. REMOVE REAR SPEAKER ASSEMBLY  . Refer to REMOVAL [08/2013 - ] - Step 7
  13. REMOVE REAR DOOR ARMREST SET BRACKET  . Refer to DISASSEMBLY [08/2013 - ] - Step 16
  14. REMOVE REAR DOOR SERVICE HOLE COVER  . Refer to DISASSEMBLY [08/2013 - ] - Step 17
  15. DISCONNECT REAR DOOR WEATHERSTRIP
    1. Disconnect the upper part of the rear door weatherstrip as shown in the illustration.

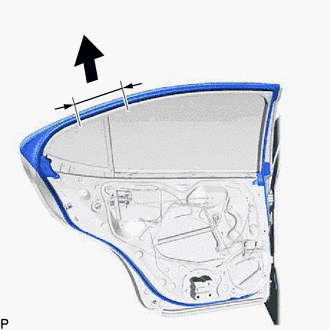

      Fig 1: Rear Door Weatherstrip
      GTY418884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE REAR DOOR GLASS RUN  . Refer to DISASSEMBLY [08/2013 - ] - Step 21
  17. REMOVE REAR DOOR LOWER WINDOW FRAME SUB-ASSEMBLY  . Refer to DISASSEMBLY [08/2013 - ] - Step 23
  18. REMOVE REAR DOOR QUARTER WINDOW GLASS
    1. Remove the rear door quarter window glass with the rear door quarter window weatherstrip as shown in the illustration.

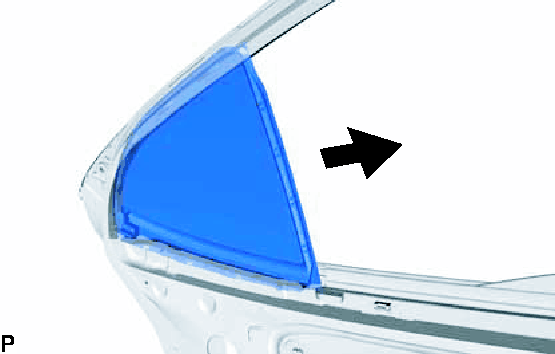

      Fig 2: Rear Door Quarter Window Glass
      GTY397289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE REAR DOOR GLASS ASSEMBLY  . Refer to DISASSEMBLY [08/2013 - ] - Step 25
  20. REMOVE REAR DOOR WINDOW REGULATOR ASSEMBLY  . Refer to DISASSEMBLY [08/2013 - ] - Step 28
  21. REMOVE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY  . Refer to DISASSEMBLY [08/2013 - ] - Step 29
