Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedure for both the RH and LH sides.
The procedure described below is for the LH side.

REMOVE OUTER MIRROR

Push the upper part of the mirror surface and tilt it.

Apply protective tape to the areas shown in the illustration.

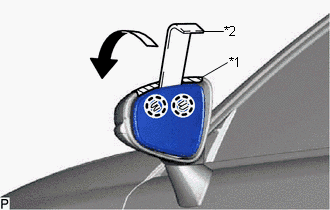

Fig 1: Removing Outer Mirror

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Protective Tape
*2	Moulding Remover

Using a moulding remover, disengage the 2 claws at the lower part of the outer rear view mirror.
Push the lower part of the mirror surface and tilt it.

Apply protective tape to the areas shown in the illustration.

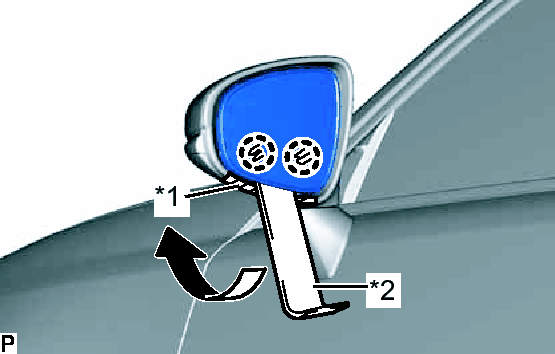

Fig 2: Removing Outer Mirror

TEXT IN ILLUSTRATION

*1	Protective Tape
*2	Moulding Remover

Using a moulding remover, disengage the 2 claws at the upper part of the outer rear view mirror.
w/o Blind Spot Monitor System:
1. Disengage the 2 clamps.

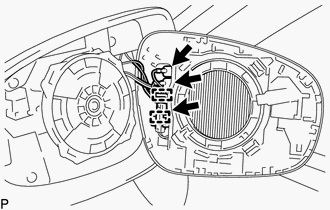

  Fig 3: Locating Outer Mirror Clamps And Connectors (W/O Blind Spot Monitor System)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the 3 connectors and remove the outer mirror.
w/ Blind Spot Monitor System:
1. Disengage the 3 clamps.

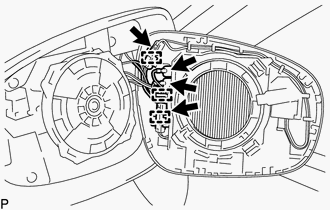

  Fig 4: Locating Outer Mirror Clamps And Connectors (W/ Blind Spot Monitor System)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the 3 connectors and remove the outer mirror.
3. Release the tabs of the blind spot monitor indicator connector to disconnect the connector and remove the outer mirror.
  NOTE:
  - Do not bend the tabs excessively to prevent them from being damaged.
  - If the tabs are damaged, replace the outer mirror with a new one.
