Parts Location [08/2013 - ]: Illustration

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

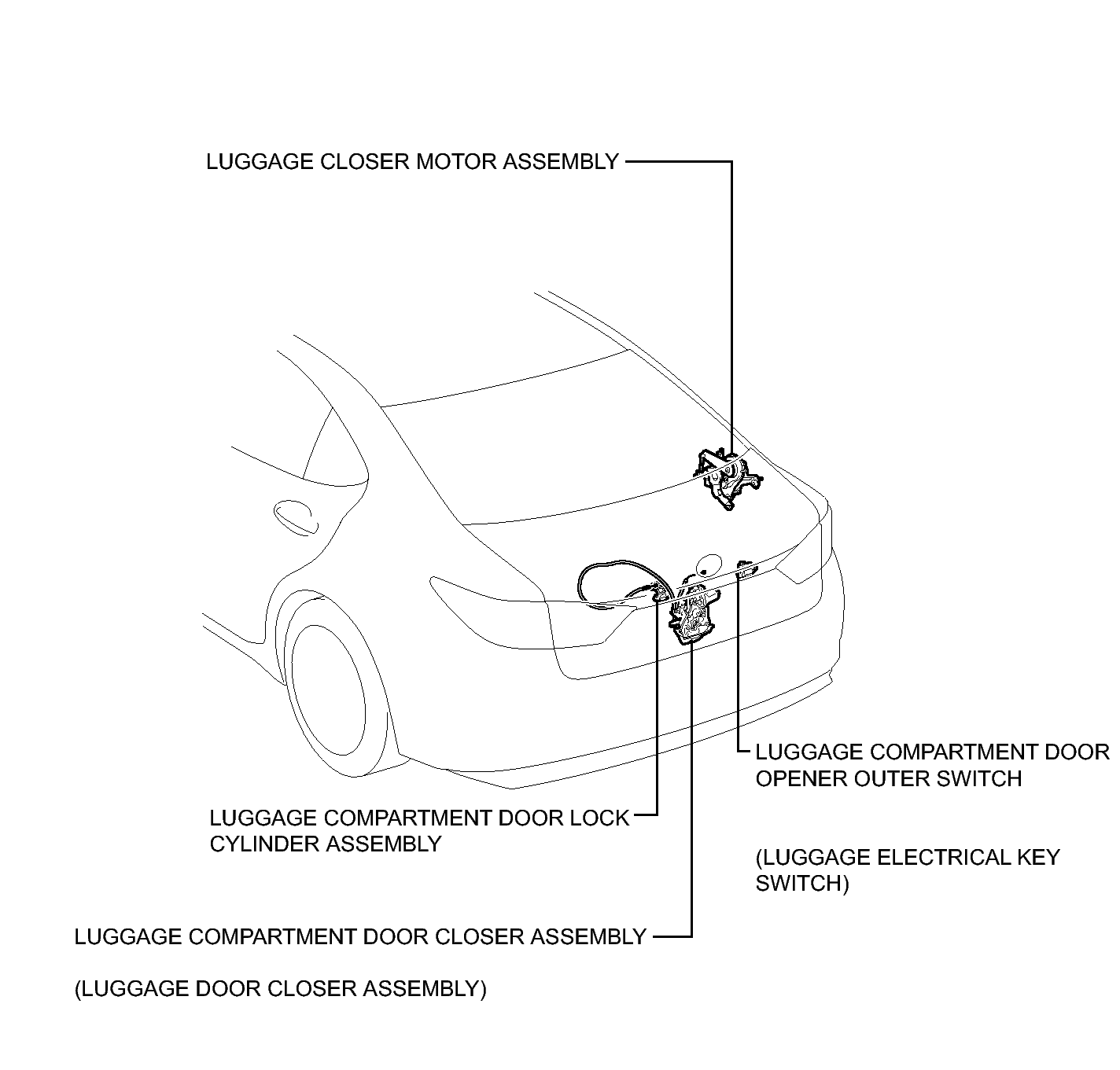

Fig 1: Identifying Luggage Compartment Door Closer System Components Location (1 Of 2)
GTY416488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

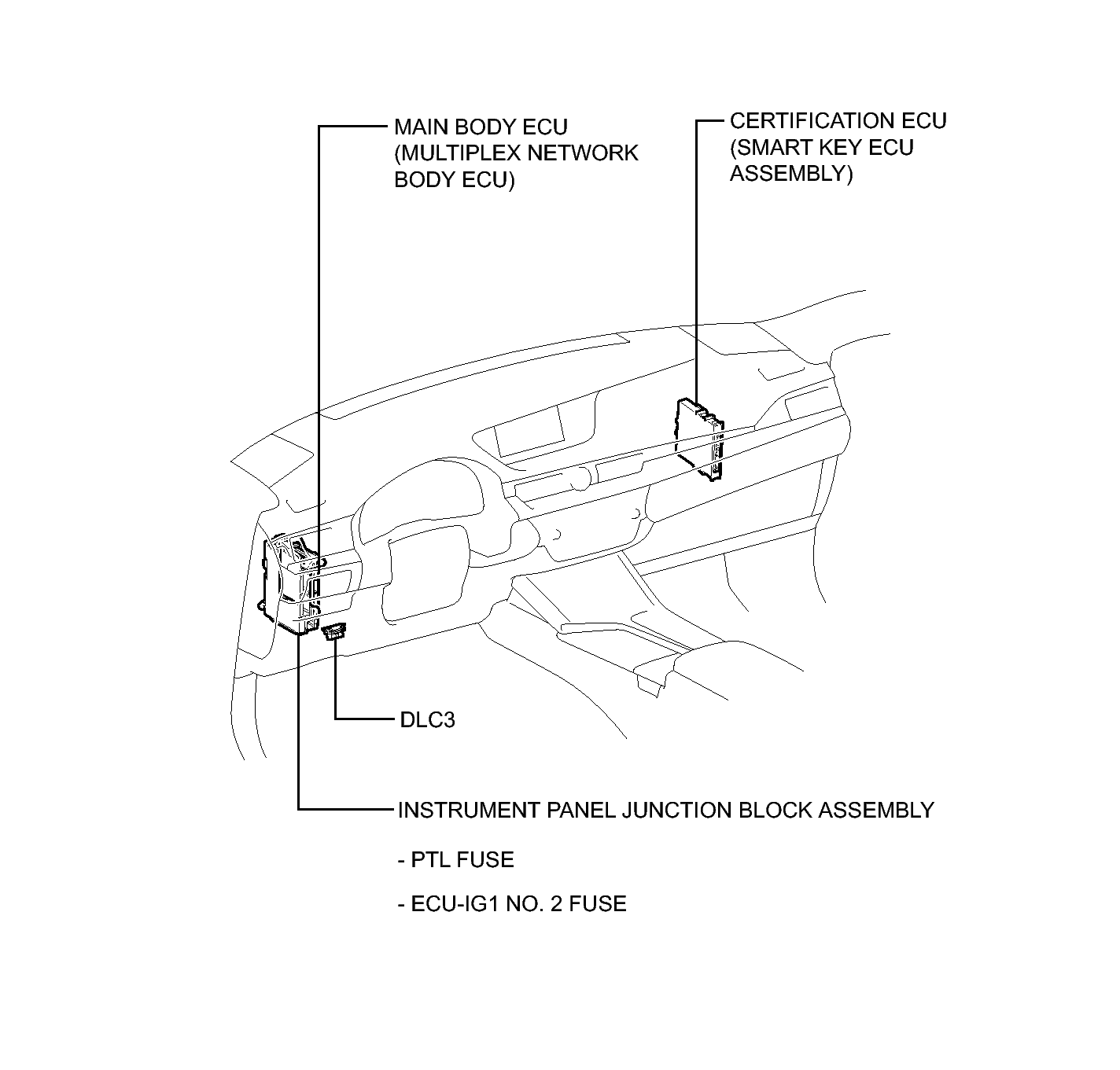

Fig 1: Identifying Luggage Compartment Door Closer System Components Location (2 Of 2)
GTY414941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
