Installation [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL LUGGAGE COMPARTMENT LIGHT BULB
    1. Install the luggage compartment light bulb to the lens.
    2. Engage the 4 claws to install the shade to the lens.
  2. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
    1. Connect the connector.
    2. Engage the claw to install the No. 1 luggage compartment light assembly.

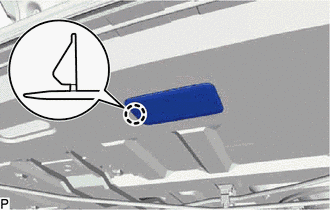

      Fig 1: Luggage Compartment Light Assembly
      GTY401398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
