Components [08/2013 - ]: Illustration

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Rear Door Lock Replacement Components (1 Of 4)
GTY417541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

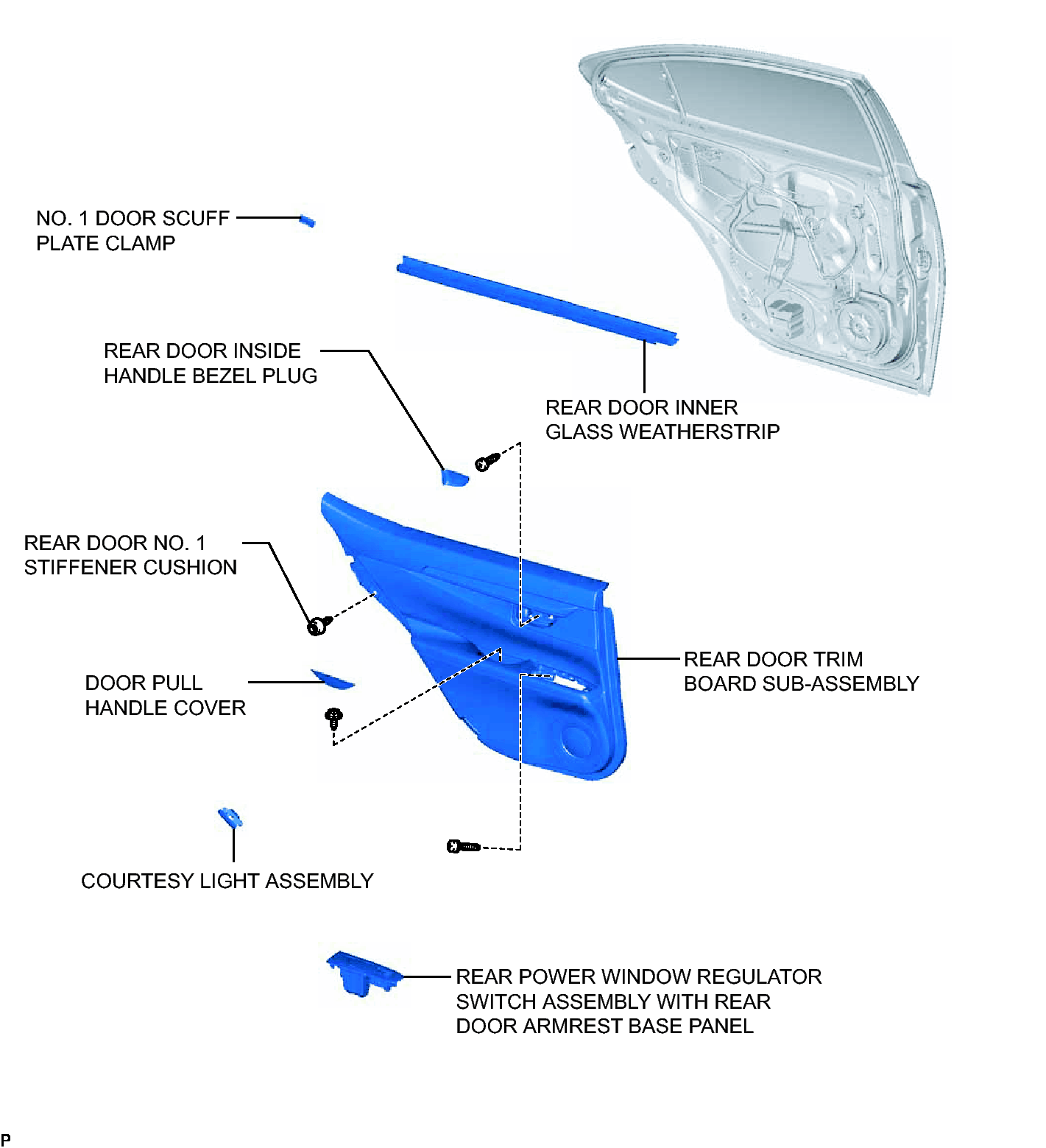

Fig 1: Identifying Rear Door Lock Replacement Components (2 Of 4)
GTY405238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

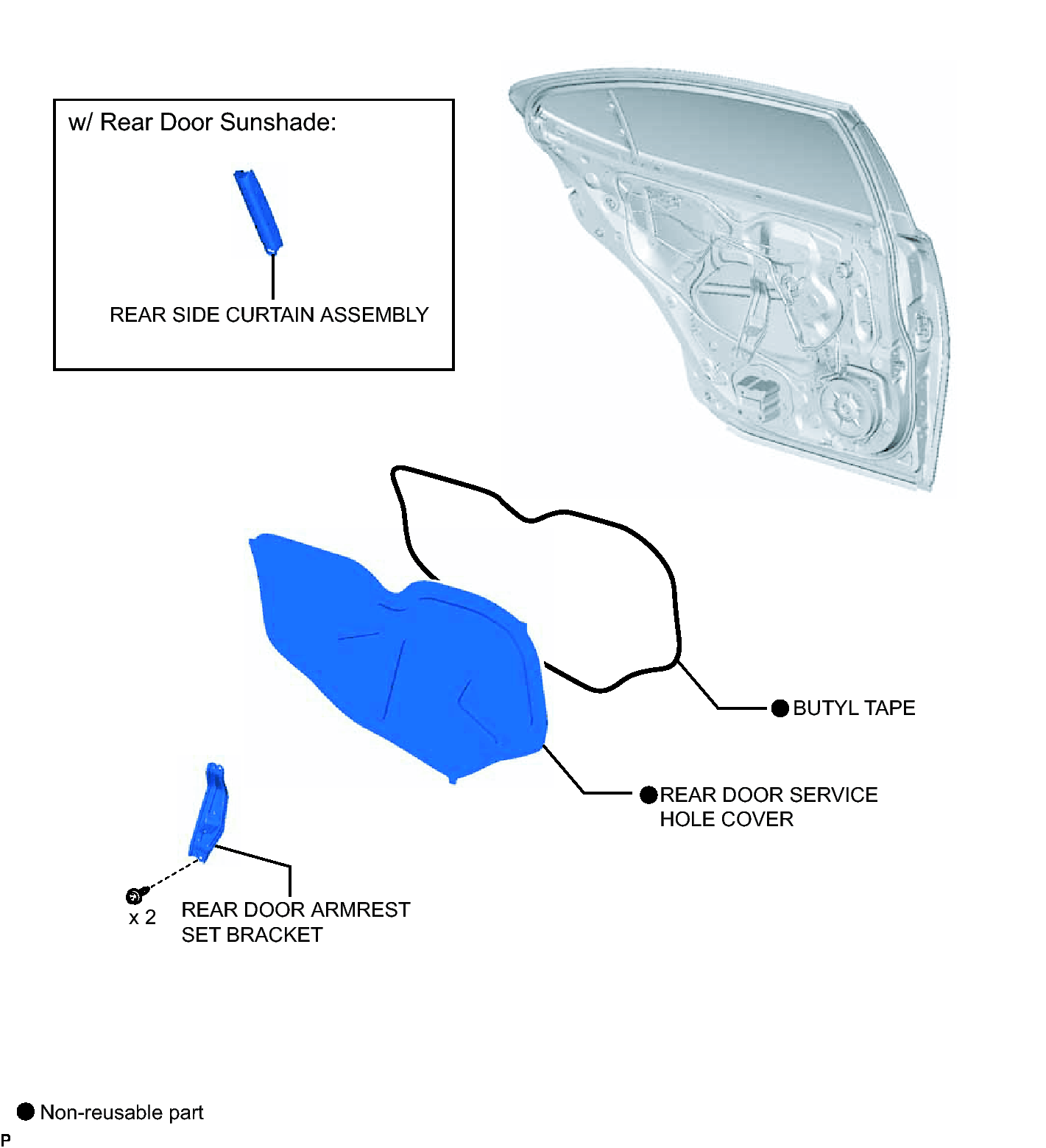

Fig 1: Identifying Rear Door Lock Replacement Components (3 Of 4)
GTY413304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

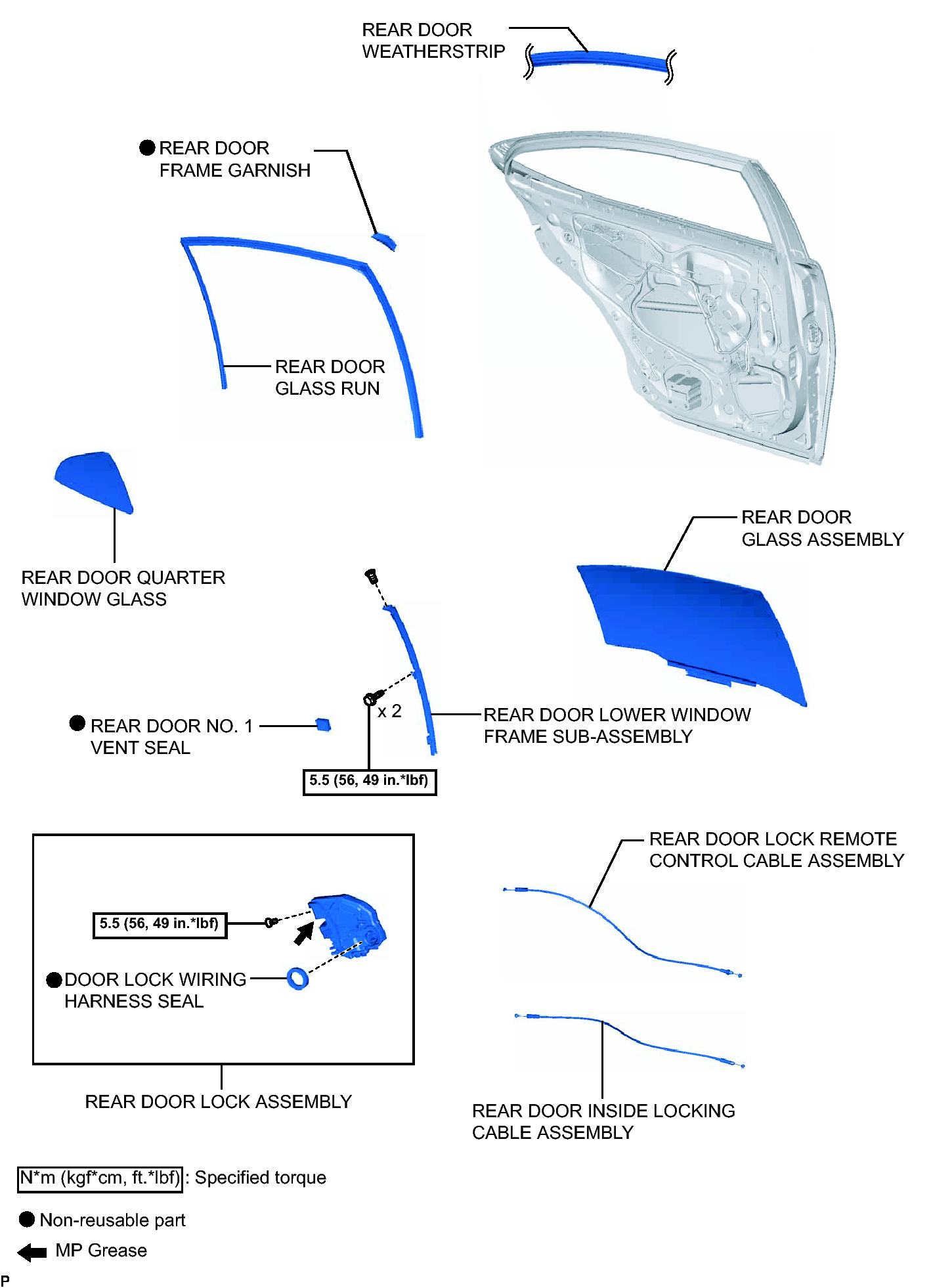

Fig 1: Identifying Rear Door Lock Replacement Components With Torque Specifications (4 Of 4)
GTY401145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
