DTC U0073/94: Control Module Communication Bus OFF; DTC U0123/62: Lost Communication with Yaw Rate Sensor Module; DTC U0124/95: Lost Communication with Lateral Acceleration Sensor Module; DTC U0126/63: Lost Communication with Steering Angle Sensor Module; DTC U0293/59: Communication Error from HV ECU [08/2013 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

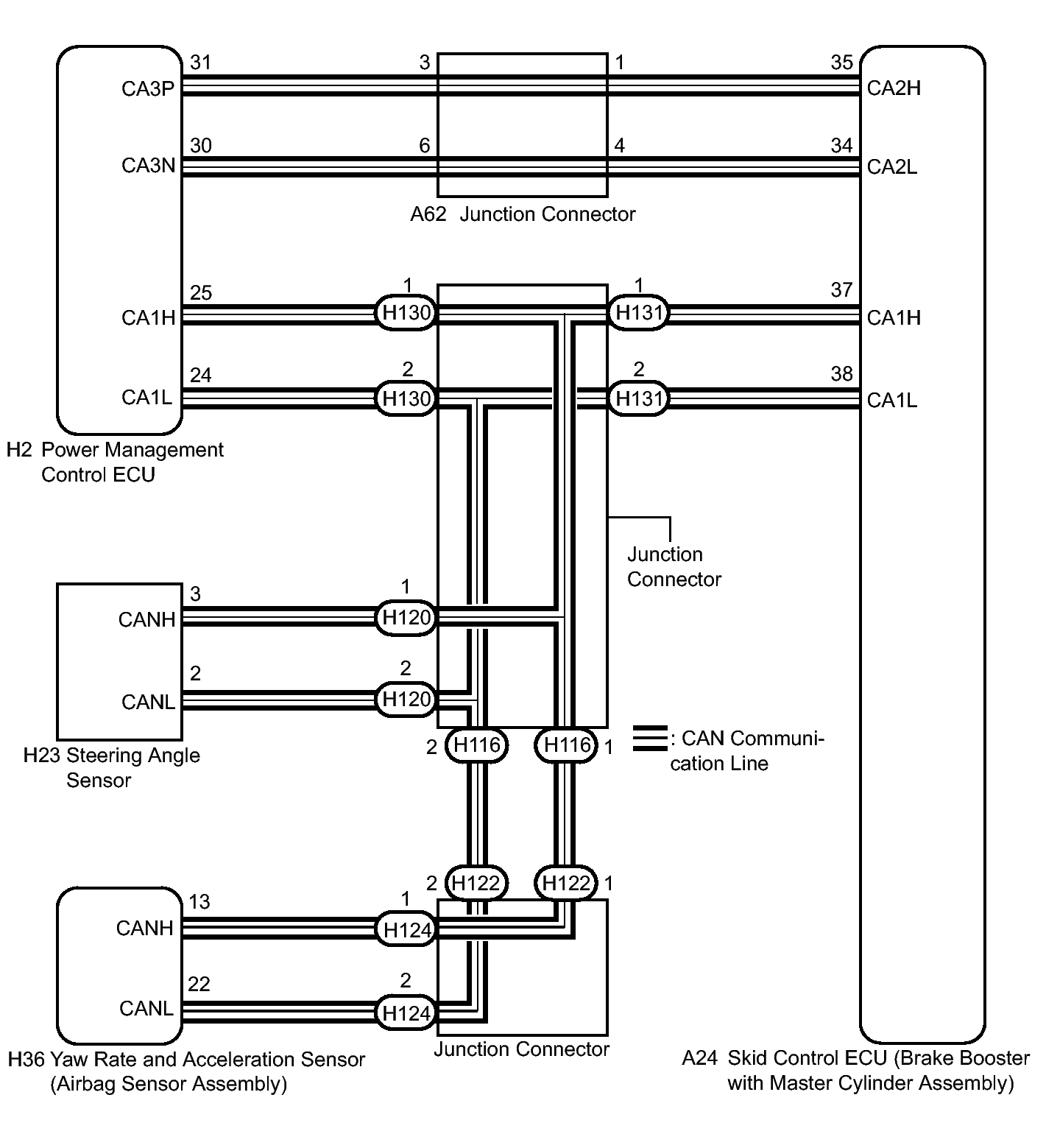

Fig 1: Control, Yaw Rate Sensor, Lateral Acceleration Sensor, Steering Angle Sensor Modules, HV ECU Wiring Diagram
GTY417498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
