Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL  See step  14
  2. REMOVE CONSOLE PANEL SUB-ASSEMBLY
    1. Move the shift lever to N.
    2. Disengage the 7 claws and 4 clips.

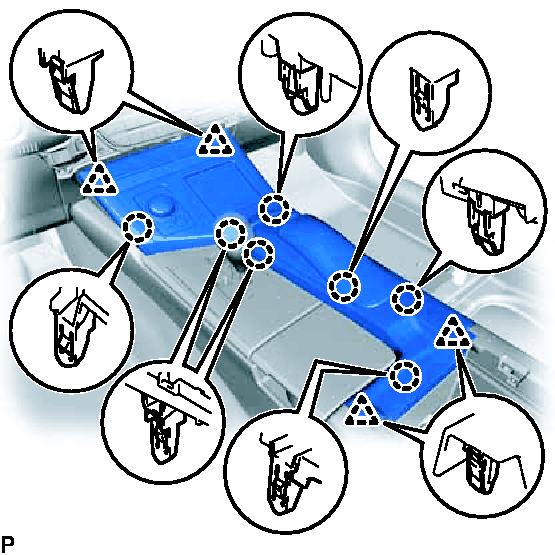

      Fig 1: Identifying Console Panel Sub-Assembly Claws And Clips
      GTY419020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the clamp.
    4. Disconnect each connector and remove the console panel sub-assembly.
  3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Turn the shift lever knob sub-assembly counterclockwise and remove it.

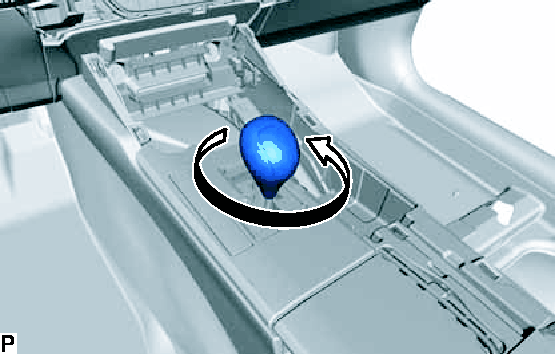

      Fig 2: Turning Shift Lever Knob Sub-Assembly Counterclockwise
      GTY409971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
    1. Disengage the 10 claws and clip.

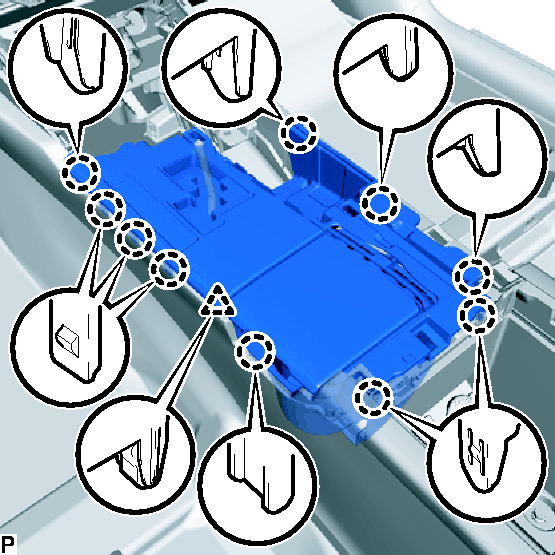

      Fig 3: Identifying Upper Console Panel Sub-Assembly Claws And Clip
      GTY409973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector and remove the upper console panel sub-assembly.
  5. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY
    1. Disengage the 6 claws, 5 clips and 4 guides.

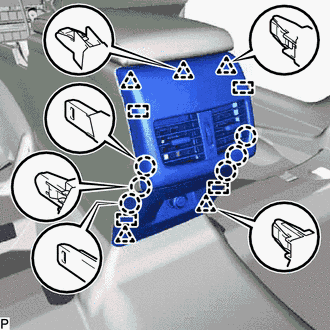

      Fig 4: Identifying Console Rear End Panel Sub-Assembly Claws, Clips And Guide
      GTY409966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect each connector and remove the console rear end panel sub-assembly.
  6. REMOVE CONSOLE BOX POCKET
    1. Remove the console box pocket

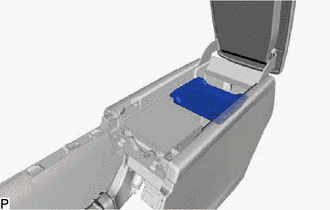

      Fig 5: Identifying Console Box Pocket
      GTY410100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE CONSOLE BOX CARPET
    1. Remove the console box carpet.

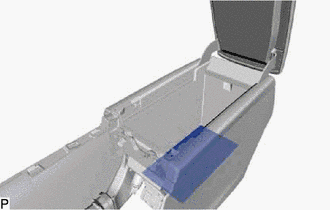

      Fig 6: Identifying Console Box Carpet
      GTY410102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NO. 3 BOX PANEL
    1. Disengage the 4 claws and 3 guides as shown in the illustration.

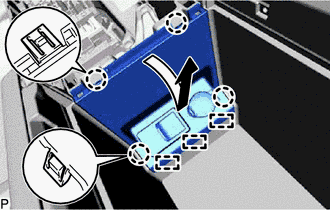

      Fig 7: Identifying No. 3 Box Panel, Claws And Guides
      GTY419048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect each connector and remove the No. 3 box panel.
  9. REMOVE REAR CONSOLE BOX ASSEMBLY
    1. Remove the 4 bolts and 4 screws.

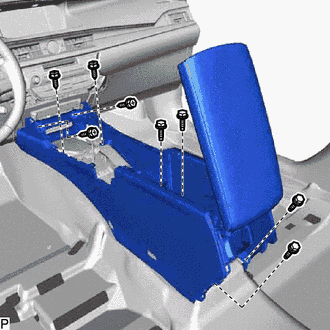

      Fig 8: Identifying Rear Console Box Assembly Bolts And Screws
      GTY419029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the rear console box assembly in the direction indicated by the arrow to disengage the 4 claws and remove the rear console box assembly.

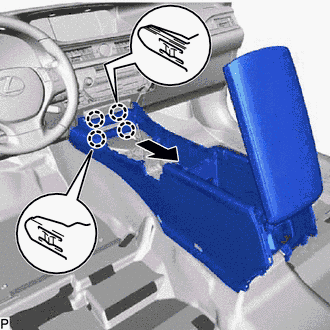

      Fig 9: Identifying Rear Console Box Assembly
      GTY410105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
