Installation [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL POWER MANAGEMENT CONTROL ECU
1. Install the power management control ECU with the 2 nuts in the order shown in the illustration.

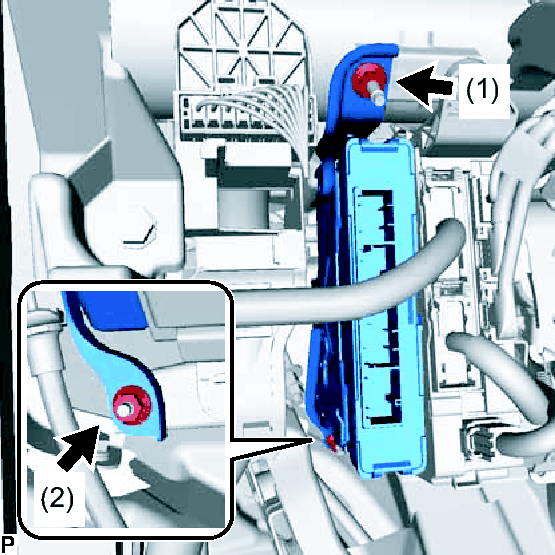

  Fig 1: Identifying Power Management Control ECU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
2. Connect each connector.
INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to INSTALLATION [08/2013 - ]
