Reassembly [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL NO. 1 REAR BUMPER REINFORCEMENT
    1. Install the No. 1 rear bumper reinforcement with the 6 nuts.

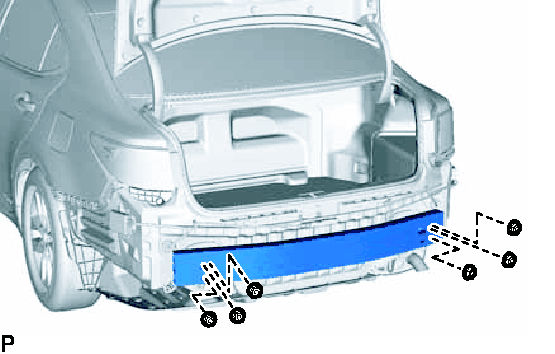

      Fig 1: Identifying No. 1 Rear Bumper Reinforcement Nuts
      GTY420044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

  2. INSTALL REAR BUMPER ENERGY ABSORBER
    1. Engage the 2 guides to install the rear bumper energy absorber.

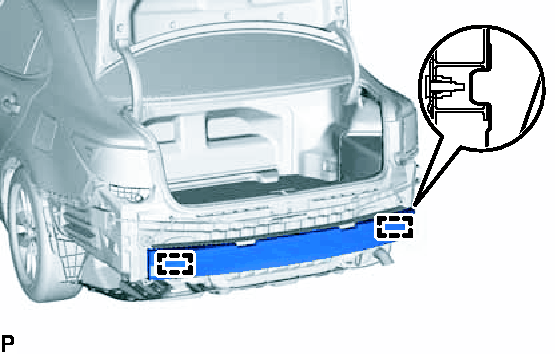

      Fig 2: Identifying Rear Bumper Energy Absorber Guides
      GTY415183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 1 REAR BUMPER SIDE SUPPORT LH
    1. Engage the 2 guides and claw.

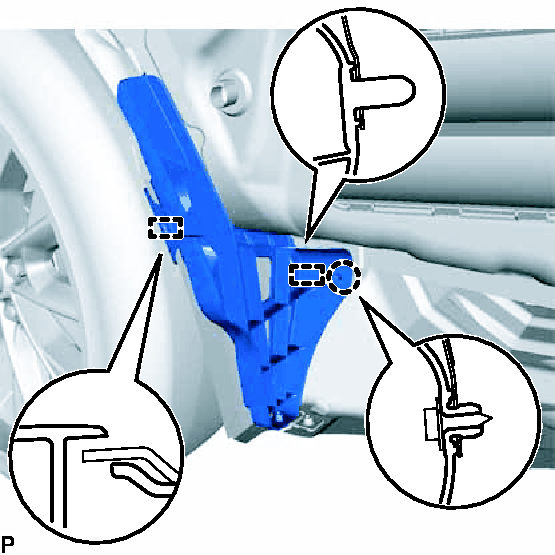

      Fig 3: Identifying No. 1 Rear Bumper Side Support LH Guides And Claw
      GTY400491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the screw.

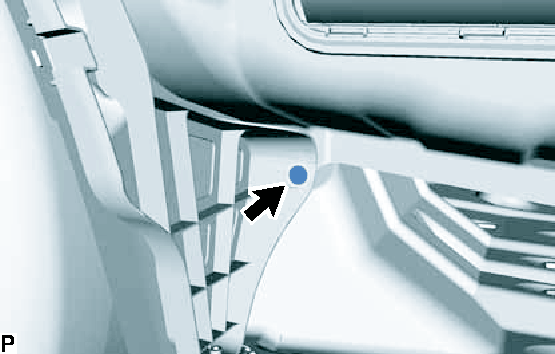

      Fig 4: Identifying No. 1 Rear Bumper Side Support LH Screw
      GTY400920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the screw.

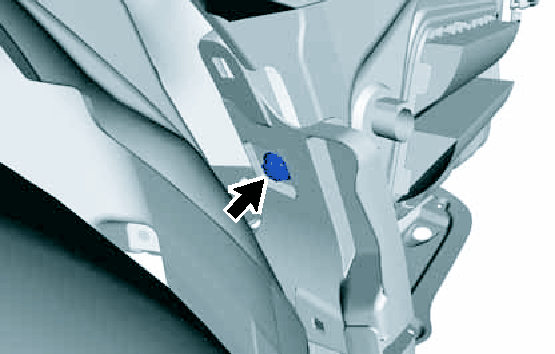

      Fig 5: Identifying No. 1 Rear Bumper Side Support LH Screw
      GTY400816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the No. 1 rear bumper side support LH with the 2 grommets.

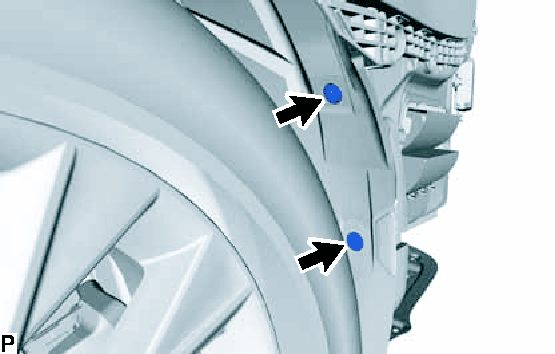

      Fig 6: Identifying No. 1 Rear Bumper Side Support LH Grommets
      GTY415797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL NO. 1 REAR BUMPER SIDE SUPPORT RH

    HINT:

    Use the same procedure as for the LH side.

  5. INSTALL NO. 2 REAR BUMPER SIDE SUPPORT LH
    1. Engage the 5 claws.

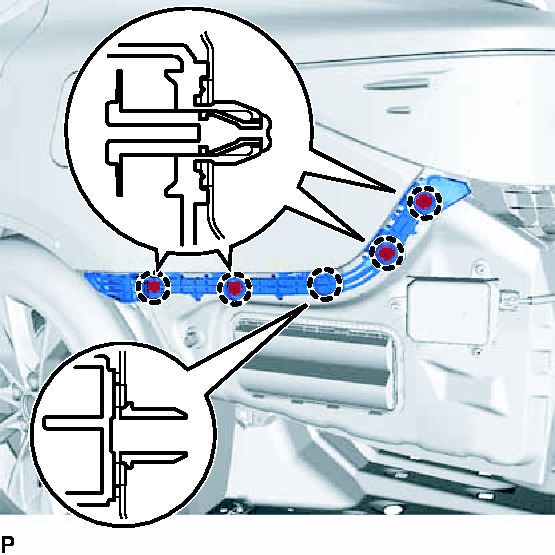

      Fig 7: Identifying No. 2 Rear Bumper Side Support LH Claws
      GTY400702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 4 clips to install the No. 2 rear bumper side support LH as shown in the illustration.

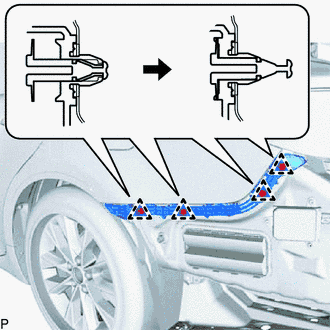

      Fig 8: Installing No. 2 Rear Bumper Side Support LH
      GTY412902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL NO. 2 REAR BUMPER SIDE SUPPORT RH

    HINT:

    Use the same procedure as for the LH side.

  7. INSTALL LOWER REAR BUMPER RETAINER
    1. Engage the 10 claws.

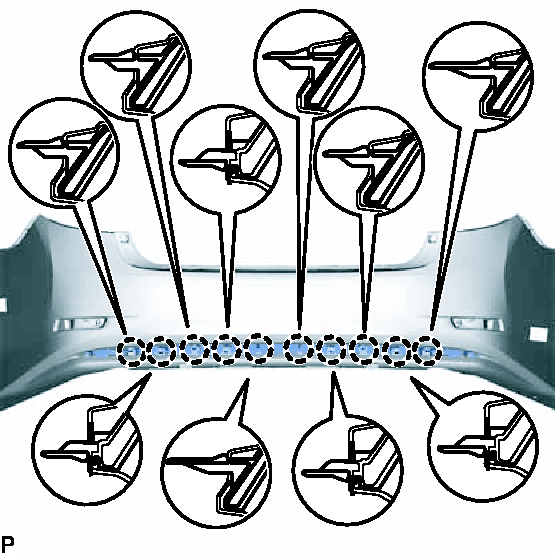

      Fig 9: Identifying Lower Rear Bumper Retainer Claws
      GTY411201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the lower rear bumper retainer with the 2 screws.

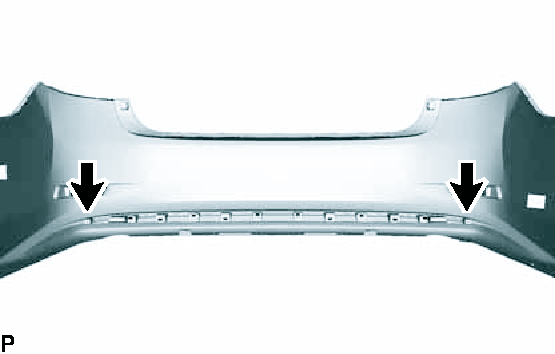

      Fig 10: Identifying Lower Rear Bumper Retainer Screws
      GTY411060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL NO. 2 LUGGAGE ROOM WIRE (w/ Intuitive Parking Assist System)

    HINT:

    When installing the ultrasonic sensor clip, heat the rear bumper assembly using a heat light.

    HEATING TEMPERATURE

    Item Temperature
    Rear Bumper Assembly 20 to 30°C (68 to 86°F)
    NOTE:

    Do not heat the front bumper assembly excessively.

    1. Clean the rear bumper assembly surface.
      1. Using a heat light, heat the rear bumper assembly surface.
      2. Remove the double-sided tape from the rear bumper assembly.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Install the ultrasonic sensor clip.
      1. Coat the installation surface on the rear bumper assembly with primer as shown in the illustration.
        Fig 11: Identifying Primer Application Area
        GTY417344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *a Line
      2. Remove the release paper from a new ultrasonic sensor clip.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

      3. Install a new ultrasonic sensor clip.
        Fig 12: Installing Ultrasonic Sensor Clip
        GTY408117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *a Line
        NOTE:
        • Make sure that the ultrasonic sensor clip are installed in the line as shown in the illustration.
        • Allow the primer to dry for 10 minutes or more.
        • If 24 hours have elapsed since primer was applied, reapply primer
      4. Lightly press the surface of each ultrasonic sensor clip to ensure a close fit.
    3. Engage the clamp to install the No. 2 luggage room wire.

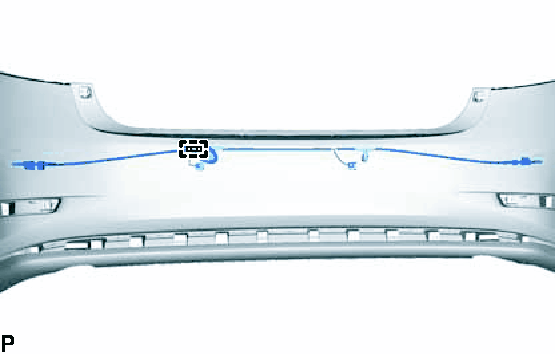

      Fig 13: Identifying No. 2 Luggage Room Wire
      GTY412276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL NO. 1 ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)

    for Corner Sensor: Refer to INSTALLATION [08/2013 - ] - Step 3

  10. INSTALL NO. 2 ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)

    for Back Sensor: Refer to INSTALLATION [08/2013 - ] - Step 4

  11. INSTALL ULTRASONIC SENSOR WITH CLIP (w/ Intuitive Parking Assist System)  . Refer to INSTALLATION [08/2013 - ] - Step 5
  12. INSTALL REFLEX REFLECTOR ASSEMBLY LH
    1. Engage the claw.

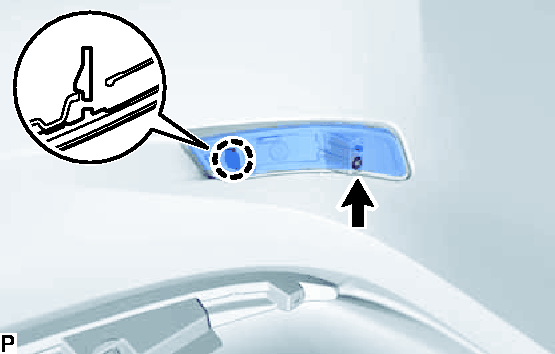

      Fig 14: Identifying Reflex Reflector Assembly LH
      GTY398493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the reflex reflector assembly LH with the screw.
  13. INSTALL REFLEX REFLECTOR ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  14. INSTALL REAR BUMPER PAD RH
    1. Wipe off any tape adhesive residue with cleaner.
    2. Install a new rear bumper pad RH.

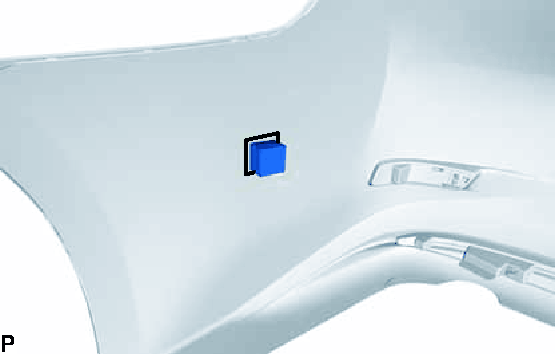

      Fig 15: Identifying Rear Bumper Pad RH
      GTY420120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Stick the new rear bumper pad RH on the line marked on the rear bumper assembly.

  15. INSTALL REAR BUMPER PAD LH
    1. Wipe off any tape adhesive residue with cleaner.
    2. Install a new rear bumper pad LH.

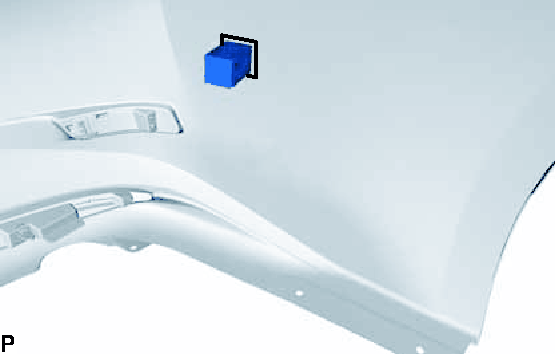

      Fig 16: Identifying Rear Bumper Pad LH
      GTY419945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Stick the new rear bumper pad LH on the line marked on the rear bumper assembly.
