Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR LIGHT ASSEMBLY LH
Refer to REMOVAL [08/2013 - ]
REMOVE REAR LIGHT ASSEMBLY RH
HINT:

Use the same procedure as for the LH side.
REMOVE LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY . Refer to DISASSEMBLY [08/2013 - ] - Step 9
REMOVE LUGGAGE ELECTRICAL KEY SWITCH . Refer to REMOVAL [08/2013 - ] - Step 5
REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY
1. Remove the 2 screws.

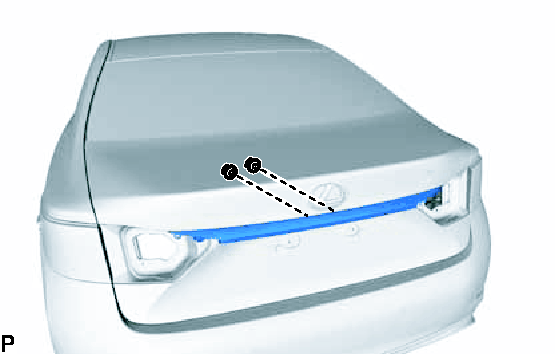

  Fig 1: Identifying Luggage Compartment Door Outside Garnish Sub-Assembly Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 nuts.

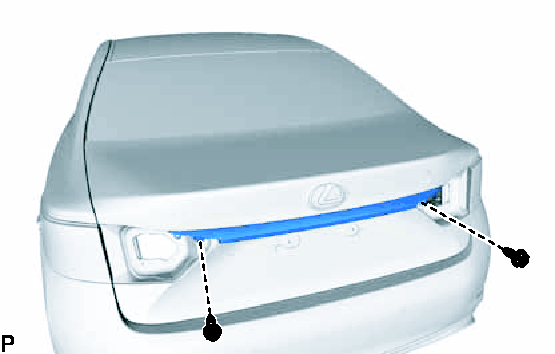

  Fig 2: Identifying Luggage Compartment Door Outside Garnish Sub-Assembly Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Put protective tape around the luggage compartment door outside garnish sub-assembly.

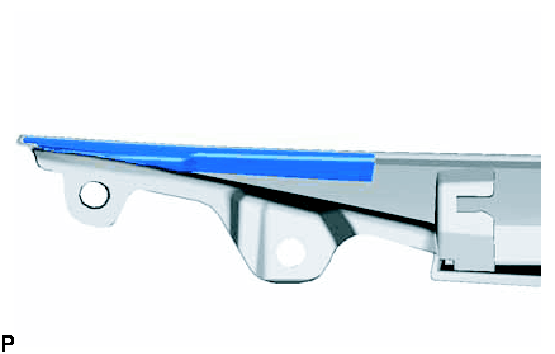

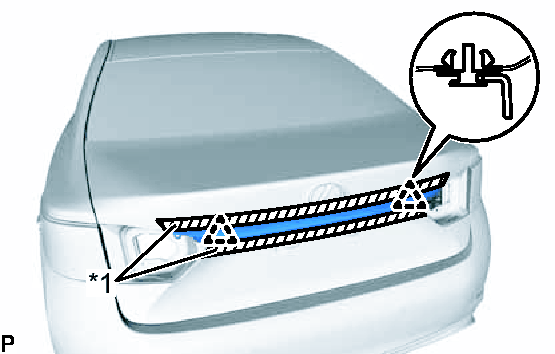

  Fig 3: Putting Protective Tape Around Luggage Compartment Door Outside Garnish Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Protective Tape
4. Disengage the 2 clips and remove the luggage compartment door outside garnish sub-assembly.
5. Remove the 2 clips from the luggage compartment door outside garnish sub-assembly.
6. Remove the 6 gaskets from the luggage compartment door outside garnish sub-assembly.
REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH PROTECTOR
1. Remove the luggage compartment door outside garnish protector.

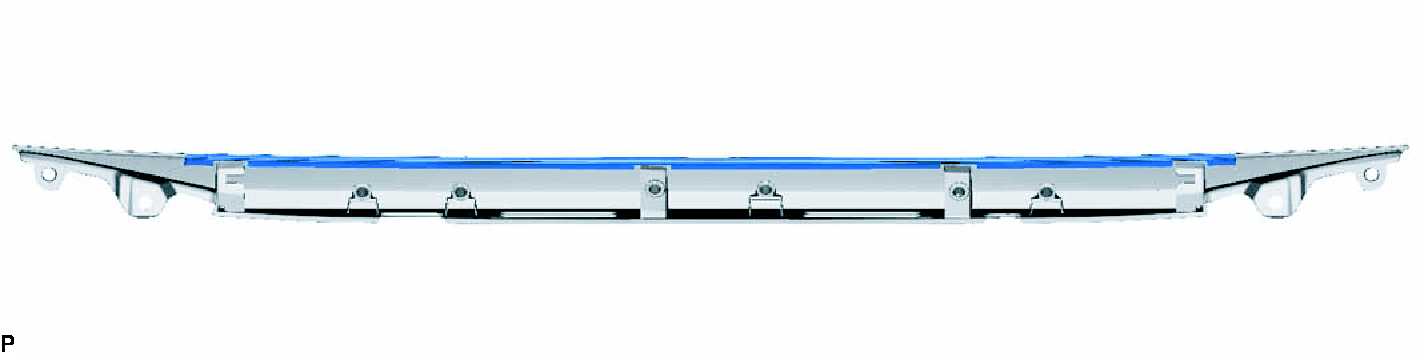

  Fig 4: Removing Luggage Compartment Door Outside Garnish Protector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH PROTECTOR LH
1. Remove the luggage compartment door outside garnish protector LH.

  Fig 5: Removing Luggage Compartment Door Outside Garnish Protector LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH PROTECTOR RH
HINT:

Use the same procedure as for the LH side.
