Reassembly [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY
1. Install the front bumper reinforcement sub-assembly with the 6 bolts.

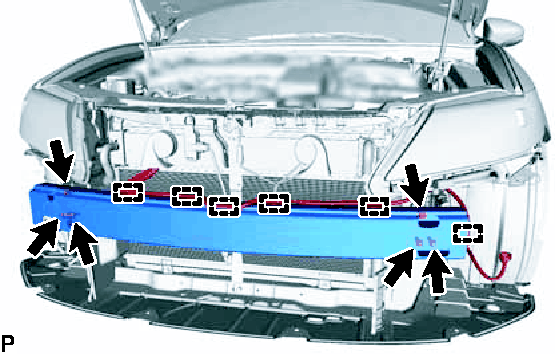

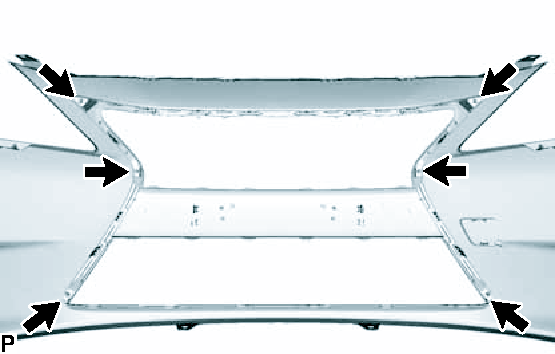

  Fig 1: Identifying Front Bumper Reinforcement Sub-Assembly Bolts And Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 61 N*m (622 kgf*cm, 45 ft.*lbf)
2. Engage the 6 clamps.
INSTALL FRONT BUMPER ENERGY ABSORBER
1. Engage the 2 guides to install the front bumper energy absorber.

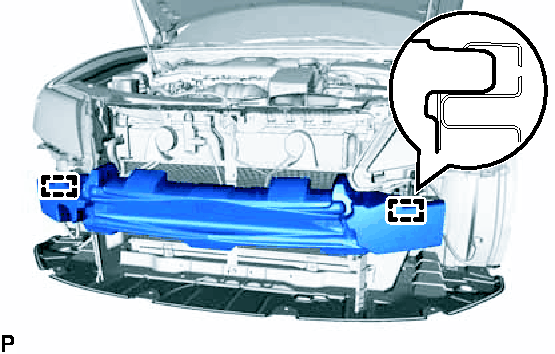

  Fig 2: Identifying Front Bumper Energy Absorber Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT BUMPER STAY LH
1. Engage the 3 claws.

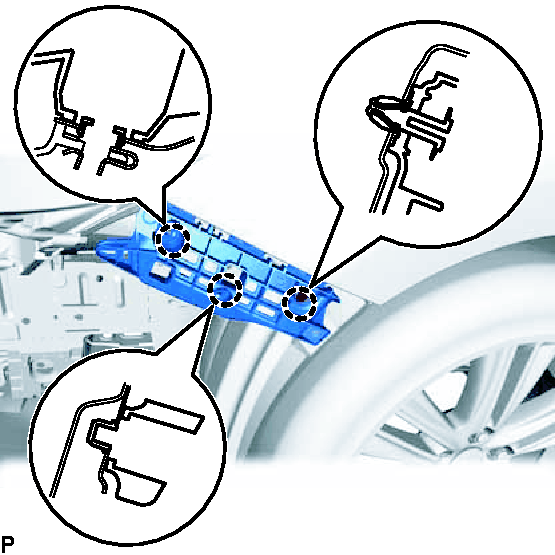

  Fig 3: Identifying Front Bumper Stay LH Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

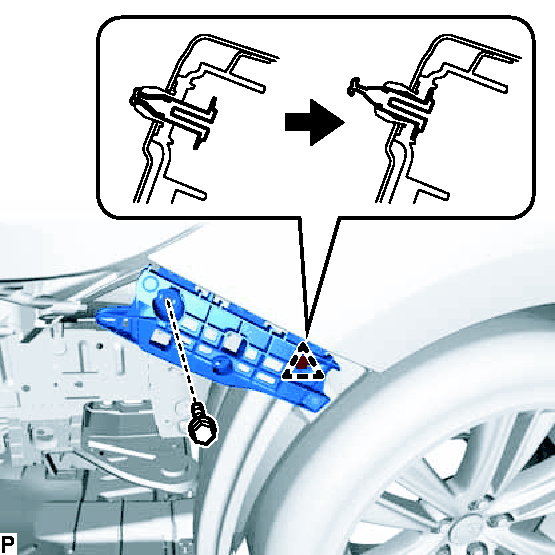

2. Engage the clip as shown in the illustration.

  Fig 4: Installing Front Bumper Stay LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the front bumper stay LH with the bolt.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
INSTALL FRONT BUMPER STAY RH
HINT:

Use the same procedure as for the LH side.
INSTALL FRONT BUMPER MOLDING
1. Engage the 2 guides as shown in the illustration.

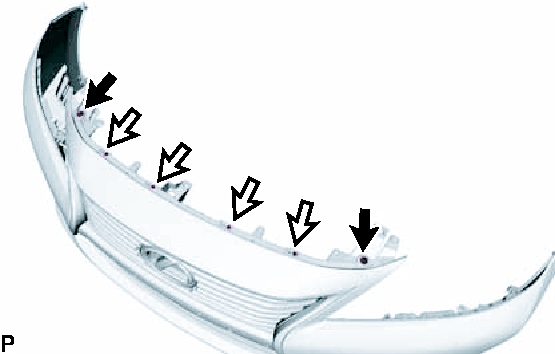

  Fig 5: Installing Front Bumper Molding
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

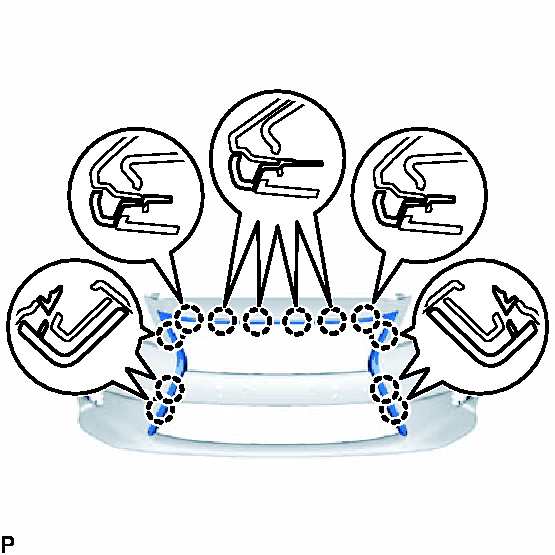

2. Engage the 12 claws.

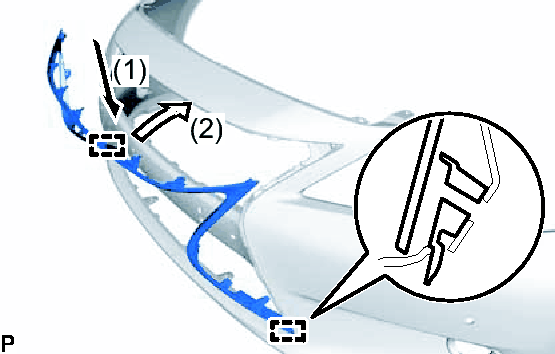

  Fig 6: Identifying Front Bumper Molding Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the front bumper molding with the 6 screws.

  Fig 7: Identifying Front Bumper Molding Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

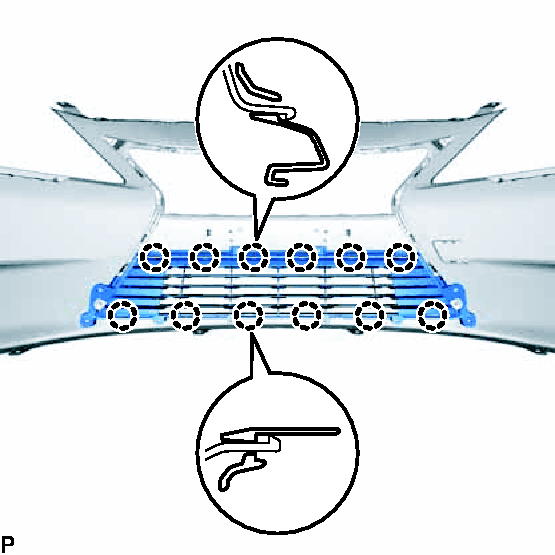

INSTALL LOWER NO. 1 RADIATOR GRILLE

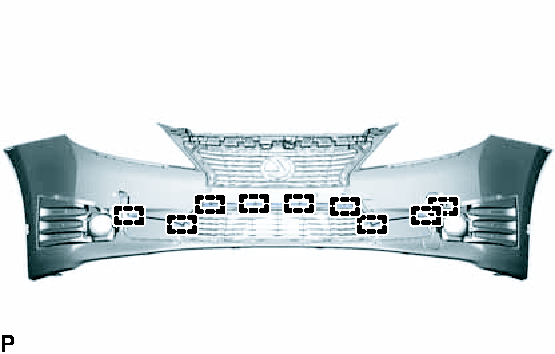

1. Engage the 12 claws to install the lower No. 1 radiator grille.

  Fig 8: Identifying Lower No. 1 Radiator Grille Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RADIATOR GRILLE

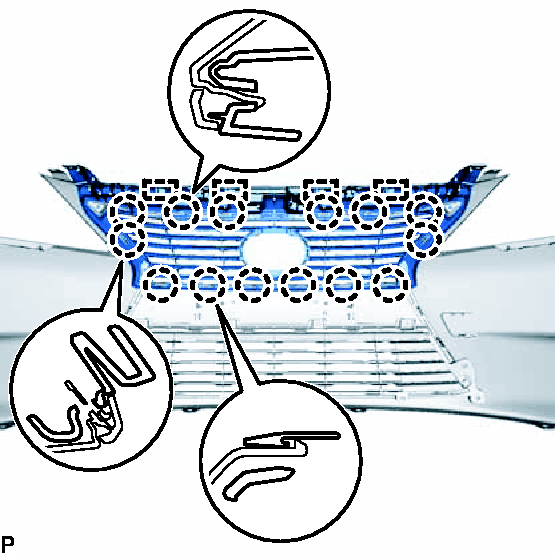

1. Engage the 4 guides and 14 claws to install the radiator grille.

  Fig 9: Identifying Radiator Grille Claws And Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the radiator grille with the 4 screws and 2 clips.

  Fig 10: Identifying Radiator Grille Clips And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RADIATOR GRILLE (OR FRONT PANEL) EMBLEM

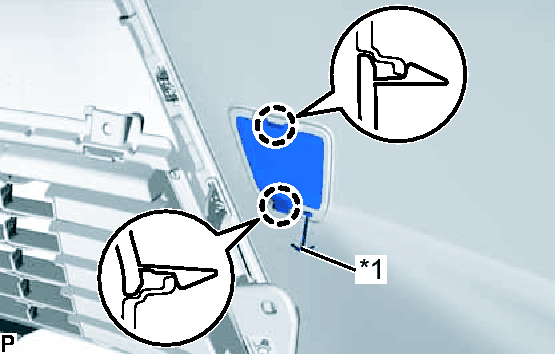

1. Engage the claw and guide.

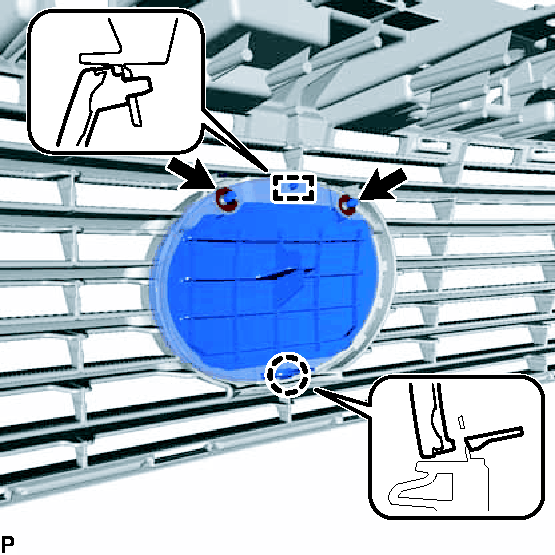

  Fig 11: Identifying Radiator Grille (Or Front Panel) Emblem Spring Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the radiator grille (or front panel) emblem with 2 new spring nuts.
INSTALL RADIATOR GRILLE SEAL
1. Wipe off any tape adhesive residue with cleaner.
2. Remove the release paper and engage the 4 clips to install a new radiator grille seal.

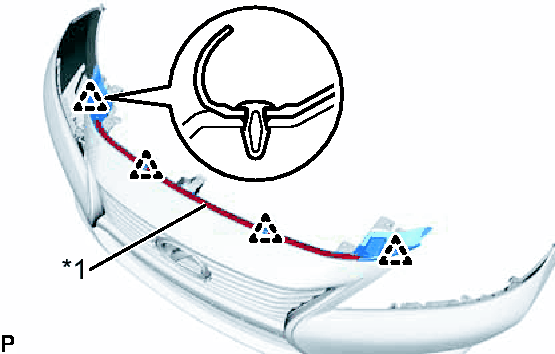

  Fig 12: Identifying Radiator Grille Seal Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Double-sided Tape
INSTALL FOG LIGHT COVER LH

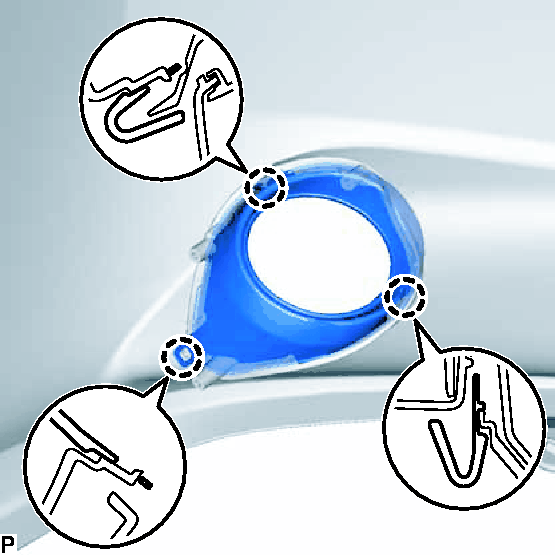

1. Engage the 3 claws to install the fog light cover LH.

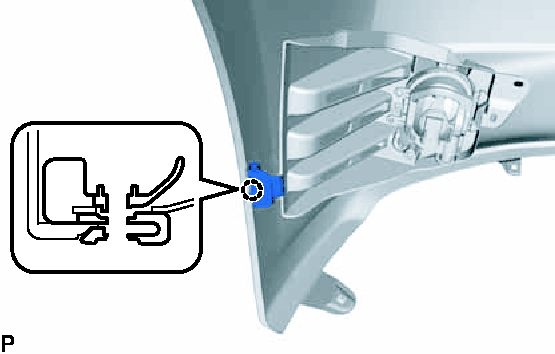

  Fig 13: Identifying Fog Light Cover LH Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FOG LIGHT COVER RH
HINT:

Use the same procedure as for the LH side.
INSTALL FOG LIGHT MOUNTING BRACKET LH

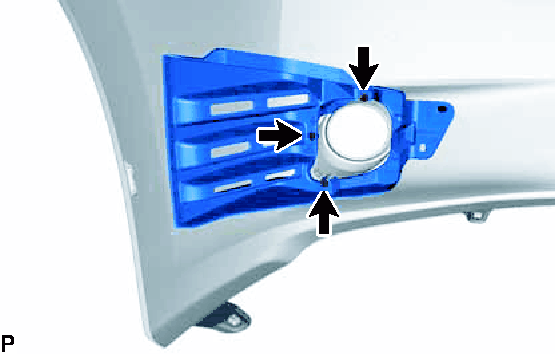

1. Install the fog light mounting bracket LH with the 3 screws.

  Fig 14: Identifying Fog Light Mounting Bracket LH Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FOG LIGHT MOUNTING BRACKET RH
HINT:

Use the same procedure as for the LH side.
INSTALL FOG LIGHT ASSEMBLY LH . Refer to INSTALLATION [08/2013 - ] - Step 1
INSTALL FOG LIGHT ASSEMBLY RH
HINT:

Use the same procedure as for the LH side.
INSTALL NO. 4 ENGINE ROOM WIRE (w/ Intuitive Parking Assist System)
1. Engage the 9 clamps to install the No. 4 engine room wire.

  Fig 15: Identifying No. 4 Engine Room Wire (W/ Intuitive Parking Assist System) Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System) . Refer to INSTALLATION [08/2013 - ] - Step 1
INSTALL NO. 1 ULTRASONIC SENSOR (w/ Intuitive Parking Assist System) . Refer to INSTALLATION [08/2013 - ] - Step 2
INSTALL FRONT BUMPER HOLE COVER
1. Engage the hook.

  Fig 16: Identifying Front Bumper Hole Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Hook
2. Engage the 2 claws to install the front bumper hole cover.
INSTALL FRONT FENDER LINER RETAINER
1. Engage the claw and install the front fender liner retainer.

  Fig 17: Identifying Front Fender Liner Retainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Use the same procedure for the RH side and LH side.
INSTALL FRONT BUMPER EXTENSION MOUNTING BRACKET
1. Engage the 2 guides.

  Fig 18: Identifying Front Bumper Extension Mounting Bracket Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the front bumper extension mounting bracket with the 2 screws.
