Removal [08/2013 - ]
WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
HINT:
- Use the same procedure for the LH side and RH side.
- The following procedure is for the LH side.
- PRECAUTION NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery negative (-) terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery negative (-) terminal notices before proceeding with work. Refer to PRECAUTION [08/2013 - ] .
- REMOVE LUGGAGE TRIM SERVICE HOLE COVER . Refer to REMOVAL [08/2013 - ] - Step 2
- DISCONNECT CABLE FROM AUXILIARY BATTERY NEGATIVE TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION [08/2013 - ] .
- REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG . Refer to DISASSEMBLY [08/2013 - ] - Step 4
- REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL . Refer to DISASSEMBLY [08/2013 - ] - Step 5
- REMOVE DOOR PULL HANDLE COVER . Refer to DISASSEMBLY [08/2013 - ] - Step 6
- REMOVE REAR DOOR NO. 1 STIFFENER CUSHION . Refer to DISASSEMBLY [08/2013 - ] - Step 7
- REMOVE COURTESY LIGHT ASSEMBLY . Refer to REMOVAL [08/2013 - ] - Step 2
- REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY . Refer to DISASSEMBLY [08/2013 - ] - Step 9
- REMOVE REAR DOOR INNER GLASS WEATHERSTRIP . Refer to DISASSEMBLY [08/2013 - ] - Step 13
- REMOVE REAR SIDE CURTAIN ASSEMBLY (w/ Rear Door Sunshade) . Refer to DISASSEMBLY [08/2013 - ] - Step 14
- REMOVE REAR DOOR ARMREST SET BRACKET . Refer to DISASSEMBLY [08/2013 - ] - Step 16
- REMOVE REAR DOOR SERVICE HOLE COVER . Refer to DISASSEMBLY [08/2013 - ] - Step 17
- DISCONNECT REAR DOOR WEATHERSTRIP See step 2
- REMOVE REAR DOOR GLASS RUN . Refer to DISASSEMBLY [08/2013 - ] - Step 21
- REMOVE REAR DOOR NO. 1 VENT SEAL . Refer to DISASSEMBLY [08/2013 - ] - Step 22
- REMOVE REAR DOOR LOWER WINDOW FRAME SUB-ASSEMBLY . Refer to DISASSEMBLY [08/2013 - ] - Step 23
- REMOVE REAR DOOR QUARTER WINDOW GLASS . Refer to DISASSEMBLY [08/2013 - ] - Step 24
- REMOVE REAR DOOR GLASS ASSEMBLY . Refer to DISASSEMBLY [08/2013 - ] - Step 25
- REMOVE REAR DOOR FRAME GARNISH . Refer to DISASSEMBLY [08/2013 - ] - Step 20
- REMOVE CURTAIN HOOK (w/ Rear Door Sunshade) . Refer to DISASSEMBLY [08/2013 - ] - Step 41
- REMOVE REAR INNER BLACK OUT TAPE

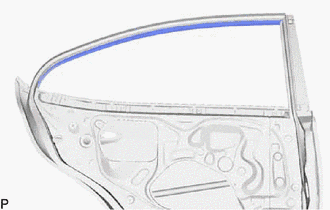

- Using a heat light, heat the rear inner black out tape and vehicle body.HEATING TEMPERATURE
Item Temperature Vehicle Body and Rear Inner Black Out Tape 40 to 60°C (104 to 140°F) NOTE:Do not heat the vehicle body excessively.
- Pull back on one of the ends of the rear inner black out tape to remove it.
HINT:
When pulling on the black out tape, pull it parallel to the body.
- Using a heat light, heat the rear inner black out tape and vehicle body.
- REMOVE FRONT INNER BLACK OUT TAPE

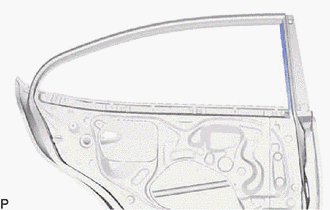

- Using a heat light, heat the front inner black out tape and vehicle body.HEATING TEMPERATURE
Item Temperature Vehicle Body and Front Inner Black Out Tape 40 to 60°C (104 to 140°F) NOTE:Do not heat the vehicle body excessively.
- Pull back on one of the ends of the front inner black out tape to remove it.
HINT:
When pulling on the black out tape, pull it parallel to the body.
- Using a heat light, heat the front inner black out tape and vehicle body.
