Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to REMOVAL [08/2013 - ]

  2. DRAIN FUEL
  3. REMOVE CENTER EXHAUST PIPE ASSEMBLY

    Refer to REMOVAL [08/2013 - ]

  4. REMOVE NO. 1 FLOOR UNDER COVER  . Refer to REMOVAL [08/2013 - ] - Step 3
  5. REMOVE NO. 2 FLOOR UNDER COVER  . Refer to REMOVAL [08/2013 - ] - Step 2
  6. DISCONNECT NO. 2 PARKING BRAKE CABLE ASSEMBLY
    1. Remove the nut and disconnect the No. 2 parking brake cable assembly.

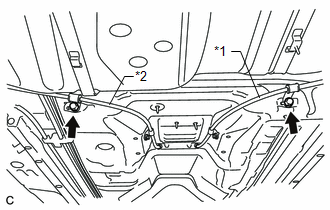

      Fig 1: Identifying No. 2 & No. 3 Parking Brake Cable Assemblies Nuts
      GTY381905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 No. 2 Parking Brake Cable Assembly
      *2 No. 3 Parking Brake Cable Assembly
  7. DISCONNECT NO. 3 PARKING BRAKE CABLE ASSEMBLY
    1. Remove the nut and disconnect the No. 3 parking brake cable assembly.
  8. REMOVE REAR NO. 1 STABILIZER BAR BRACKET
    1. Remove the 4 nuts and 2 rear No. 1 stabilizer bar brackets.

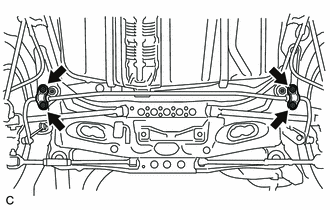

      Fig 2: Identifying Rear No. 1 Stabilizer Bar Brackets & Nuts
      GTY316352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 1 FUEL TANK PROTECTOR
    1. Remove the 3 clips and No. 1 fuel tank protector.

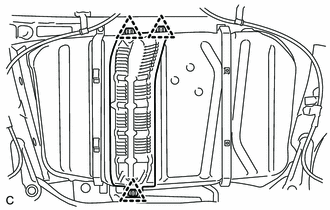

      Fig 3: Identifying No. 1 Fuel Tank Protector Clips
      GTY322232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. DISCONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY
    1. Pinch the tabs of the retainer to disengage the lock claws and pull it down as shown in the illustration.
      Fig 4: Disconnecting Fuel Tank Main Tube
      GTY317697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Retainer
      *2 Tab
      *3 Fuel Tube Connector
      *4 Fuel Pipe
      *5 O-ring
      Pinch
      Pull
    2. Pull out the fuel tank main tube sub-assembly.
      NOTE:
      • Check that there are no scratches or foreign matter around the connected part of the fuel tube connector and fuel pipe before performing this work.
      • Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the fuel tube connector has O-rings that seal the fuel pipe.
      • Only disconnect the fuel tube connector by hand.
      • Do not forcibly bend, twist or turn the fuel tank main tube sub-assembly.
      • Protect the disconnected part by covering it with a plastic bag after disconnecting the fuel tube connector.
      • If the fuel tube connector and fuel pipe are stuck, push and pull to release them.
  11. DISCONNECT FUEL TANK BREATHER TUBE SUB-ASSEMBLY
    1. Pinch the tabs of the retainer to disengage the lock claws and pull it down as shown in the illustration.
      Fig 5: Disconnecting Fuel Tank Breather Tube
      GTY320943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Retainer
      *2 Tab
      *3 Fuel Tube Connector
      *4 Fuel Pipe
      *5 O-ring
      Pinch
      Pull
    2. Pull out the fuel tank breather tube sub-assembly.
      NOTE:
      • Remove any dirt or foreign matter on the fuel tube connector and fuel pipe before performing this work.
      • Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the fuel tube connector has O-rings that seal the fuel pipe.
      • Only disconnect the fuel tube connector by hand.
      • Do not forcibly bend, twist or turn the fuel tank breather tube sub-assembly.
      • Protect the disconnected part by covering it with a plastic bag after disconnecting the fuel tube connector.
      • If the fuel tube connector and fuel pipe are stuck, push and pull to release them.
  12. DISCONNECT FUEL TANK VENT HOSE SUB-ASSEMBLY
    1. Pinch the tabs of the retainer to disengage the lock claws and pull it down as shown in the illustration.
      Fig 6: Disconnecting Fuel Tank Vent Hose
      GTY317018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Retainer
      *2 Tab
      Pinch
      Pull
      NOTE:
      • Remove any dirt or foreign matter on the fuel tank vent hose connector before performing this work.
      • Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the fuel tank vent hose connector has an O-ring that seals the pipe.
      • Only disconnect the fuel tank vent hose connector by hand.
      • Do not forcibly bend, twist or turn the fuel tank vent hose sub-assembly.
      • Protect the disconnected part by covering it with a plastic bag after disconnecting the fuel tank vent hose sub-assembly.
      • If the fuel tank vent hose connector and charcoal canister are stuck, push and pull to release them.
    2. Pull out the fuel tank vent hose sub-assembly.
  13. DISCONNECT FUEL TANK TO FILLER PIPE HOSE
    1. Pull the tab of the retainer to disengage the lock claws and pull out the fuel tank to filler pipe hose.
      Fig 7: Disconnecting Fuel Tank To Filler Pipe Hose
      GTY320806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Retainer
      Pull
      Pull out
      NOTE:
      • Remove any dirt or foreign matter on the fuel tank to filler pipe hose connector before performing this work.
      • Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the fuel tank to filler pipe hose connector has an O-ring that seals the fuel tank sub-assembly.
      • Only disconnect the fuel tank to filler pipe hose connector by hand.
      • Do not forcibly bend, twist or turn the fuel tank to filler pipe hose.
      • Protect the disconnected part by covering it with a plastic bag after disconnecting the fuel tank to filler pipe hose.
      • If the fuel tank to filler pipe hose connector and fuel tank sub-assembly are stuck, push and pull to release them.
  14. REMOVE FUEL TANK SUB-ASSEMBLY
    1. Support the fuel tank sub-assembly using an engine lifter.

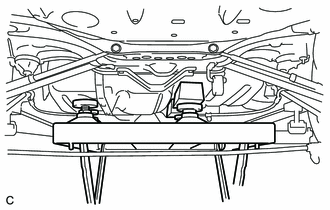

      Fig 8: Supporting Fuel Tank Using Engine Lifter
      GTY316345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts of the 2 fuel tank bands.

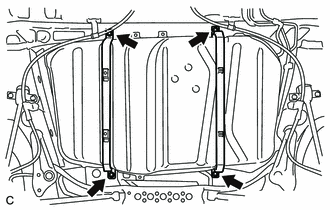

      Fig 9: Identifying Fuel Tank Bands & Bolts
      GTY316348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Lower the engine lifter to remove the fuel tank sub-assembly.
      NOTE:
      • Slowly operate the engine lifter to lower the fuel tank sub-assembly.
      • Do not drop the fuel tank sub-assembly.
      • When removing the fuel tank sub-assembly, tilt it slightly to prevent it from interfering with the suspension arm or other surrounding parts.
  15. REMOVE FUEL TANK MAIN TUBE SUB-ASSEMBLY
    1. Disconnect the No. 1 fuel tube clamp and remove the fuel tank main tube sub-assembly.

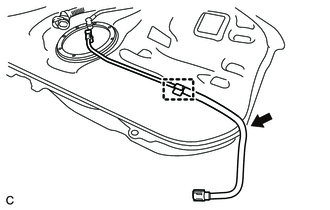

      Fig 10: Identifying Fuel Tank Main Tube Clamp
      GTY316346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE FUEL TANK BREATHER TUBE SUB-ASSEMBLY
    1. Disconnect the No. 2 fuel tube clamp and remove the fuel tank breather tube sub-assembly.
      Fig 11: Identifying Fuel Tank Breather Tube Clamp
      GTY322230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE FUEL TANK VENT HOSE SUB-ASSEMBLY
    1. Disconnect the No. 2 fuel tube clamp and remove the fuel tank vent hose sub-assembly.
      Fig 12: Identifying Fuel Tank Vent Hose Clamp
      GTY316344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE NO. 1 FUEL TUBE CLAMP
    1. Remove the No. 1 fuel tube clamp.
      Fig 13: Identifying No. 1 & No. 2 Fuel Tube Clamps
      GTY314867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 No. 1 Fuel Tube Clamp
      *2 No. 2 Fuel Tube Clamp
  19. REMOVE NO. 2 FUEL TUBE CLAMP
    1. Remove the No. 2 fuel tube clamp.
  20. REMOVE NO. 1 FUEL TANK CUSHION
    1. Remove the 5 No. 1 fuel tank cushions.
      Fig 14: Identifying No. 1 Fuel Tank Cushions
      GTY316565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
