Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
Refer to REMOVAL [08/2013 - ]
REMOVE FUEL SENDER GAUGE ASSEMBLY
1. Disconnect the 3 wire harness clamps.

  Fig 1: Identifying Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not damage the wire harness.
2. Remove the wire harness protector from the wire harness.

  Fig 2: Identifying Wire Harness Protector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not damage the wire harness.
3. Disconnect the connector of the fuel sender gauge assembly.

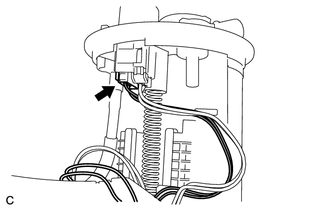

  Fig 3: Identifying Fuel Sender Gauge Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Release the lock as shown in the illustration and slide the fuel sender gauge assembly to remove it.

  Fig 4: Removing Fuel Sender Gauge Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
