Components [08/2013 - ]: Illustration

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

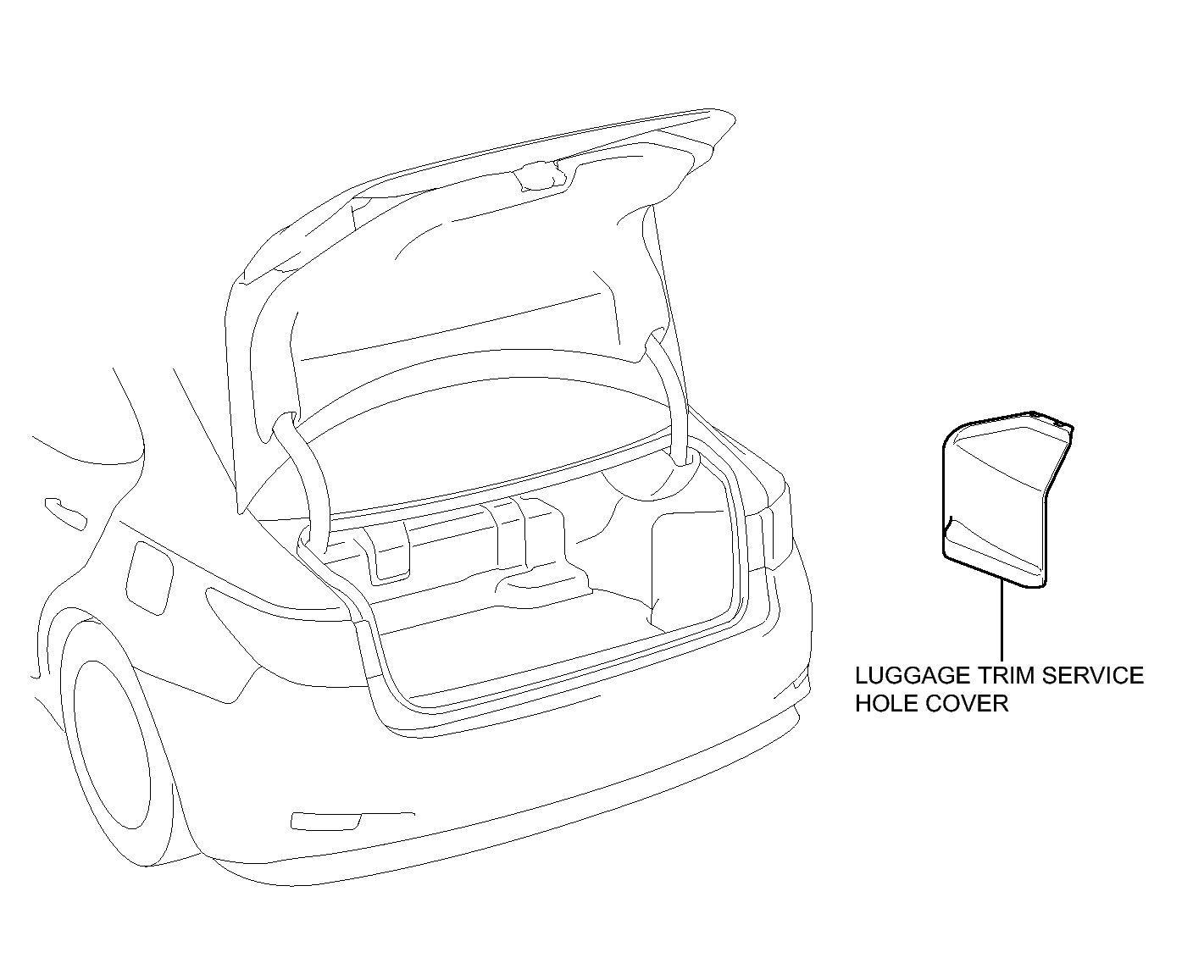

Fig 1: Identifying Fuel Pump Replacement Components (1 Of 4)
GTY409217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


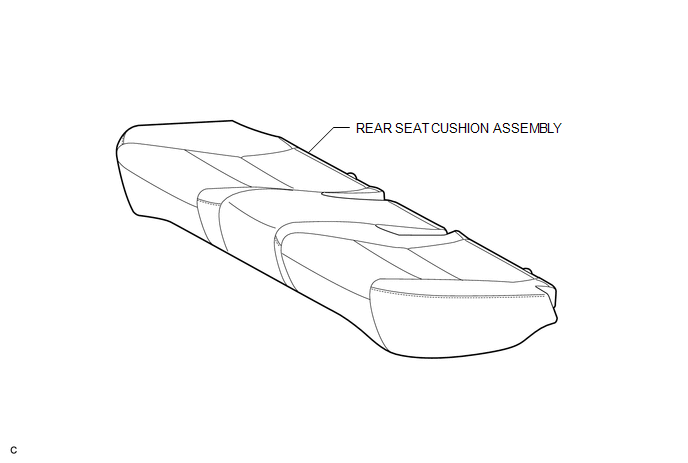

Fig 1: Identifying Fuel Pump Replacement Components With Torque Specifications (2 Of 4)
GTY360953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

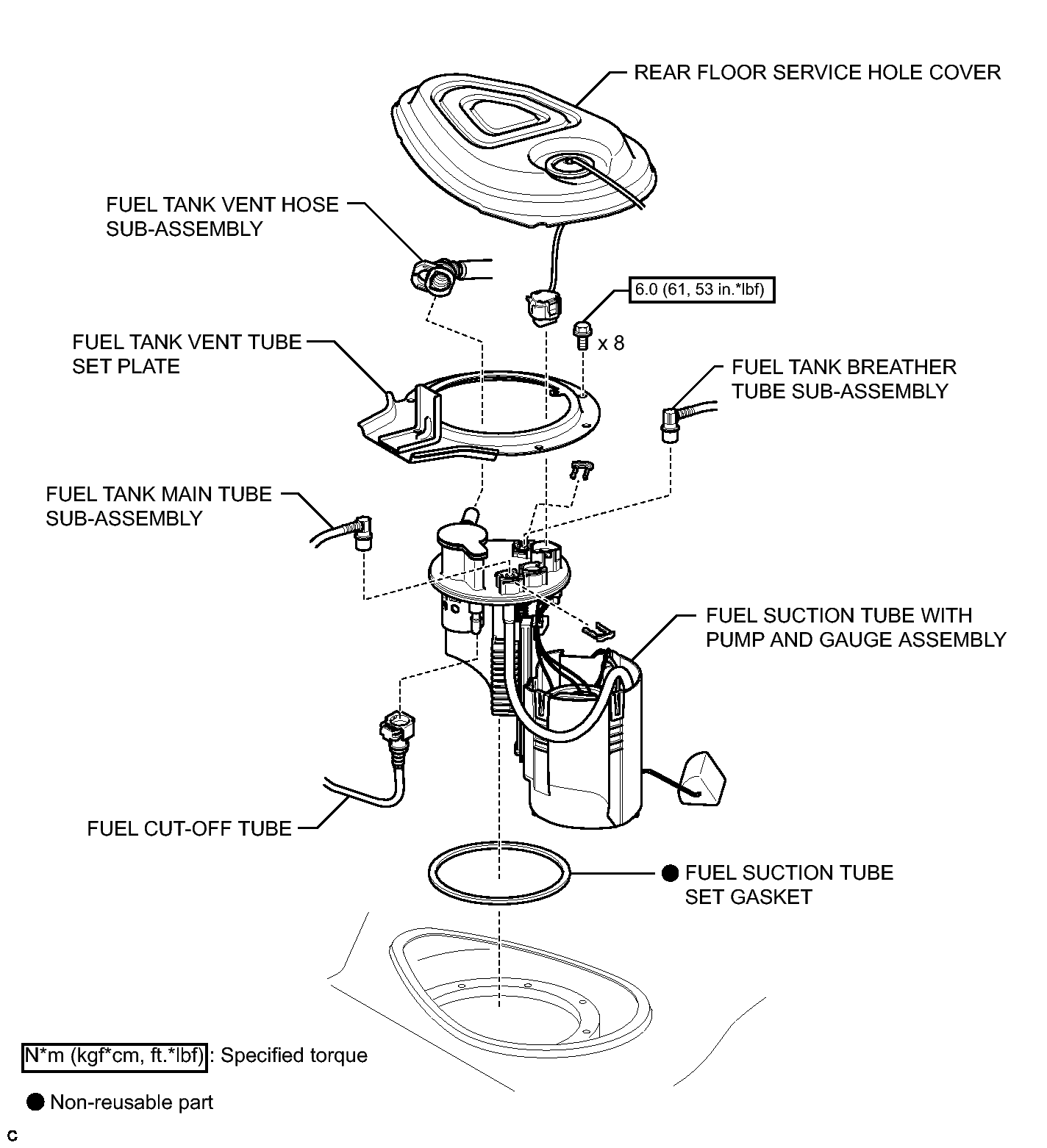

Fig 1: Identifying Fuel Pump Replacement Components With Torque Specifications (3 Of 4)
GTY401553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

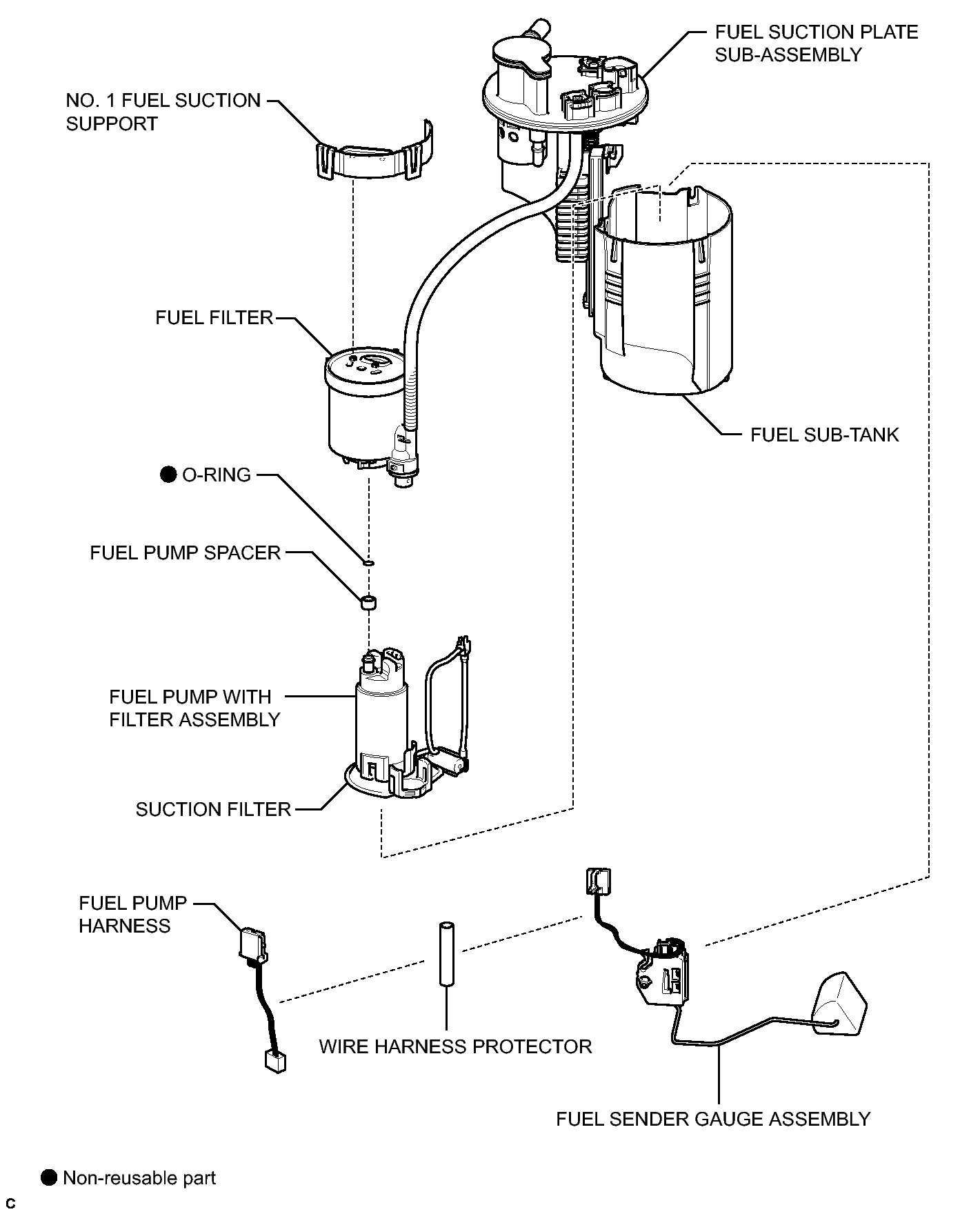

Fig 1: Identifying Fuel Pump Replacement Components (4 Of 4)
GTY410992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
