Components [08/2013 - ]: Illustration

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (1 Of 4)
GTY409682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

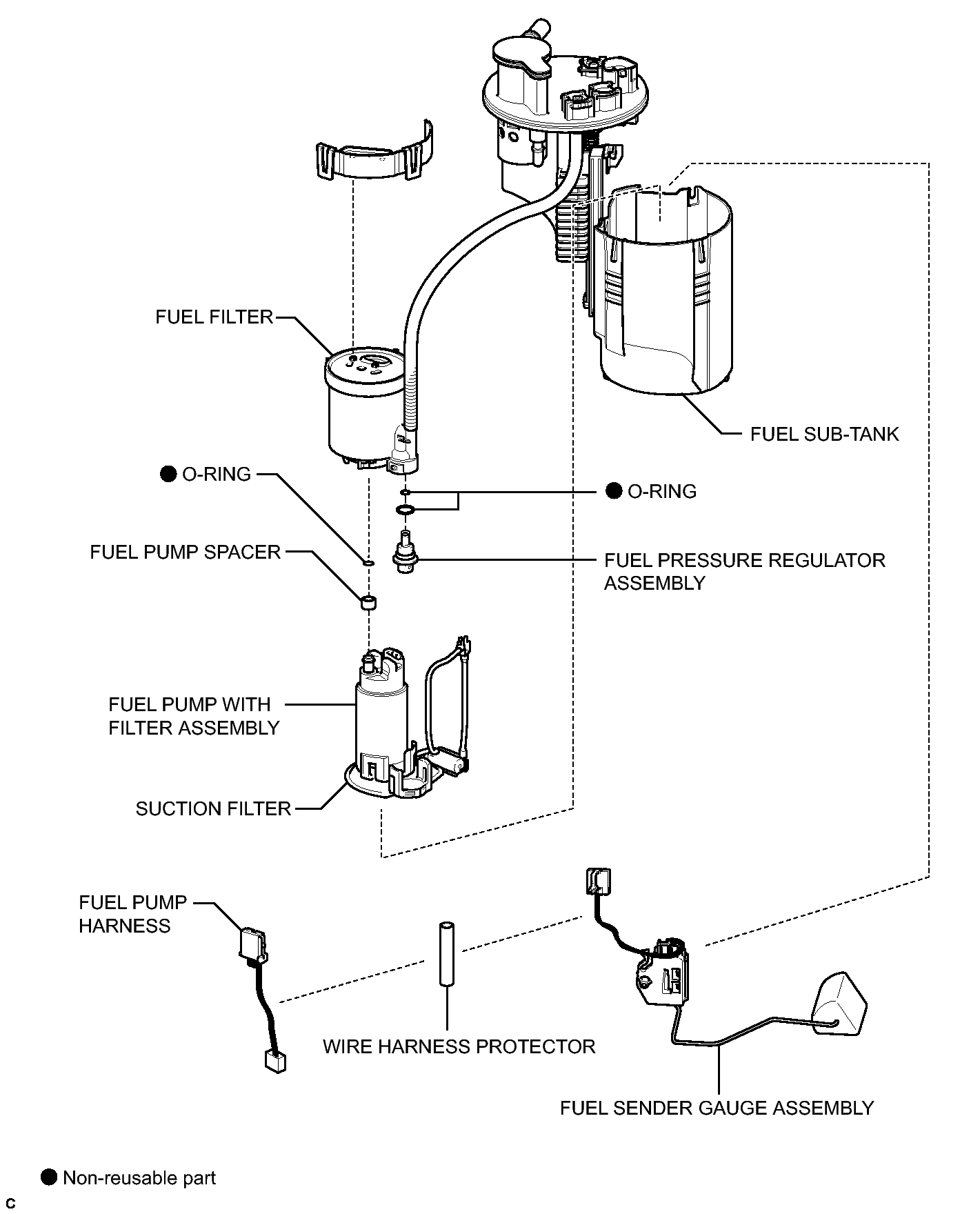

Fig 1: Identifying Fuel Pressure Regulator Replacement Components (2 Of 2)
GTY414793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
