Installation [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL TIMING CHAIN COVER OIL SEAL
1. Apply MP grease to the lip of a new timing chain cover oil seal.
  NOTE:
  - Do not allow foreign matter to contact the lip of the timing chain cover oil seal.
  - Do not allow MP grease to contact the dust seal.

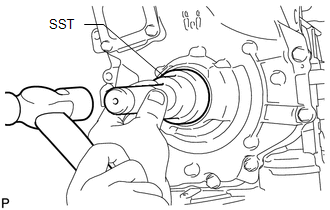

2. Using SST and a hammer, tap in the timing chain cover oil seal until its surface is flush with the timing chain cover sub-assembly edge.

  Fig 1: View Of Installing Oil Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09223-22010
  NOTE:
  - Keep the lip of the timing chain cover oil seal free from foreign matter.
  - Do not tap in the timing chain cover oil seal at an angle.

INSTALL CRANKSHAFT PULLEY

Align the crankshaft pulley key with the key groove of the crankshaft pulley.

Using SST, hold the crankshaft pulley and install the pulley bolt.

Fig 2: Installing Crankshaft Pulley

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Washer
*a	Hold
*b	Turn

SST: 09213-54015
1. 09214-00030
SST: 09213-70011
SST: 09330-00021

Torque: 260 N*m (2651 kgf*cm, 192 ft.*lbf)

HINT:

Insert a few washers (thickness: approximately 5 mm (0.197 in.)) between SST(09213-70011) and SST(09214-00030).

INSPECT FOR OIL LEAK
INSTALL FRONT FENDER APRON SEAL RH See step 88
INSTALL ENGINE UNDER COVER RH (w/o Front Lower Bumper Absorber) See step 31
INSTALL ENGINE UNDER COVER RH (w/ Front Lower Bumper Absorber) See step 32
INSTALL FRONT WHEEL OPENING EXTENSION PAD RH See step 94
INSTALL FRONT WHEEL RH
Torque: 103 N*m (1049 kgf*cm, 76 ft.*lbf)
