DTC P2195: Oxygen (A/F) Sensor Signal Stuck Lean (Bank 1 Sensor 1); DTC P2196: Oxygen (A/F) Sensor Signal Stuck Rich (Bank 1 Sensor 1) [08/2013 - ]: Description

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Although the DTC titles say oxygen sensor, these DTCs relate to the air fuel ratio sensor.

The air fuel ratio sensor generates a voltage* that corresponds to the actual air fuel ratio. This sensor voltage is used to provide the ECM with feedback so that it can control the air fuel ratio. The ECM determines the deviation from the stoichiometric air fuel ratio level, and regulates the fuel injection duration. If the air fuel ratio sensor malfunctions, the ECM is unable to control the air fuel ratio accurately.

The air fuel ratio sensor is a planar type and is integrated with the heater, which heats the solid electrolyte (zirconia element). This heater is controlled by the ECM. When the intake air volume is low (the exhaust gas temperature is low), a current flows into the heater to heat the sensor, in order to facilitate accurate oxygen concentration detection. In addition, the sensor and heater portions are a narrow type. The heat generated by the heater is conducted to the solid electrolyte through the alumina, and therefore sensor activation is accelerated.

In order to obtain a high purification rate of the carbon monoxide (CO), hydrocarbon (HC) and nitrogen oxide (NOx) components in the exhaust gas, a three-way catalytic converter is used. For the most efficient use of the three-way catalytic converter, the air fuel ratio must be precisely controlled so that it is always close to the stoichiometric level.

*: Value changes inside the ECM. Since the air fuel ratio sensor is a current output element, the current is converted into a voltage inside the ECM. Any measurements taken at the air fuel ratio sensor or ECM connectors will show a constant voltage.

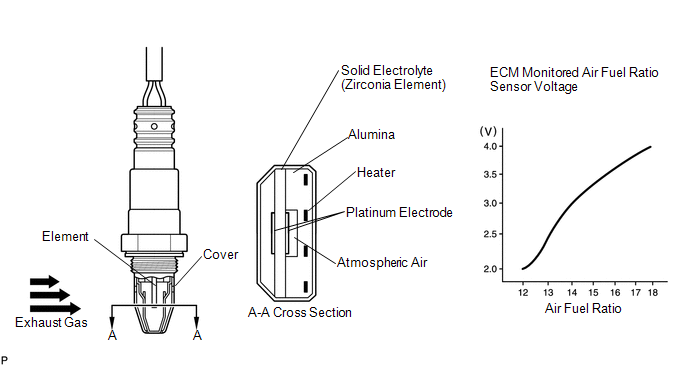

Fig 1: Oxygen Sensor Operation Graph
GTY290752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DTC No. DTC Detection Condition Trouble Area
P2195 Conditions (a) and (b) continue for 5 seconds or more (2 trip detection logic):
  • (a) Air fuel ratio sensor voltage higher than 3.8 V.
  • (b) Heated oxygen sensor voltage is 0.21 V or higher.
  • Open or short in air fuel ratio sensor (sensor 1) circuit
  • Air fuel ratio sensor (sensor 1)
  • Intake system
  • Fuel pressure
  • Gas leak from exhaust system
  • Fuel injector assembly
  • EGR valve assembly
  • ECM
While the fuel-cut operation is performed (during vehicle deceleration), the air fuel ratio sensor current is 2.2 mA or higher for 3 seconds (2 trip detection logic).
  • Air fuel ratio sensor (sensor 1)
  • ECM
P2196 Conditions (a) and (b) continue for 5 seconds or more (2 trip detection logic):
  • (a) Air fuel ratio sensor voltage less than 2.8 V.
  • (b) Heated oxygen sensor voltage is less than 0.69 V.
  • Open or short in air fuel ratio sensor (sensor 1) circuit
  • Air fuel ratio sensor (sensor 1)
  • Intake system
  • Fuel pressure
  • Gas leak from exhaust system
  • Fuel injector assembly
  • EGR valve assembly
  • ECM
While the fuel-cut operation is performed (during vehicle deceleration), the air fuel ratio sensor current is less than 0.7 mA for 3 seconds (2 trip detection logic).
  • Air fuel ratio sensor (sensor 1)
  • ECM

HINT:
