Components [08/2013 - ]: Illustration

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Brake Pedal Stroke Sensor Replacement Components With Torque Specifications
GTY377657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

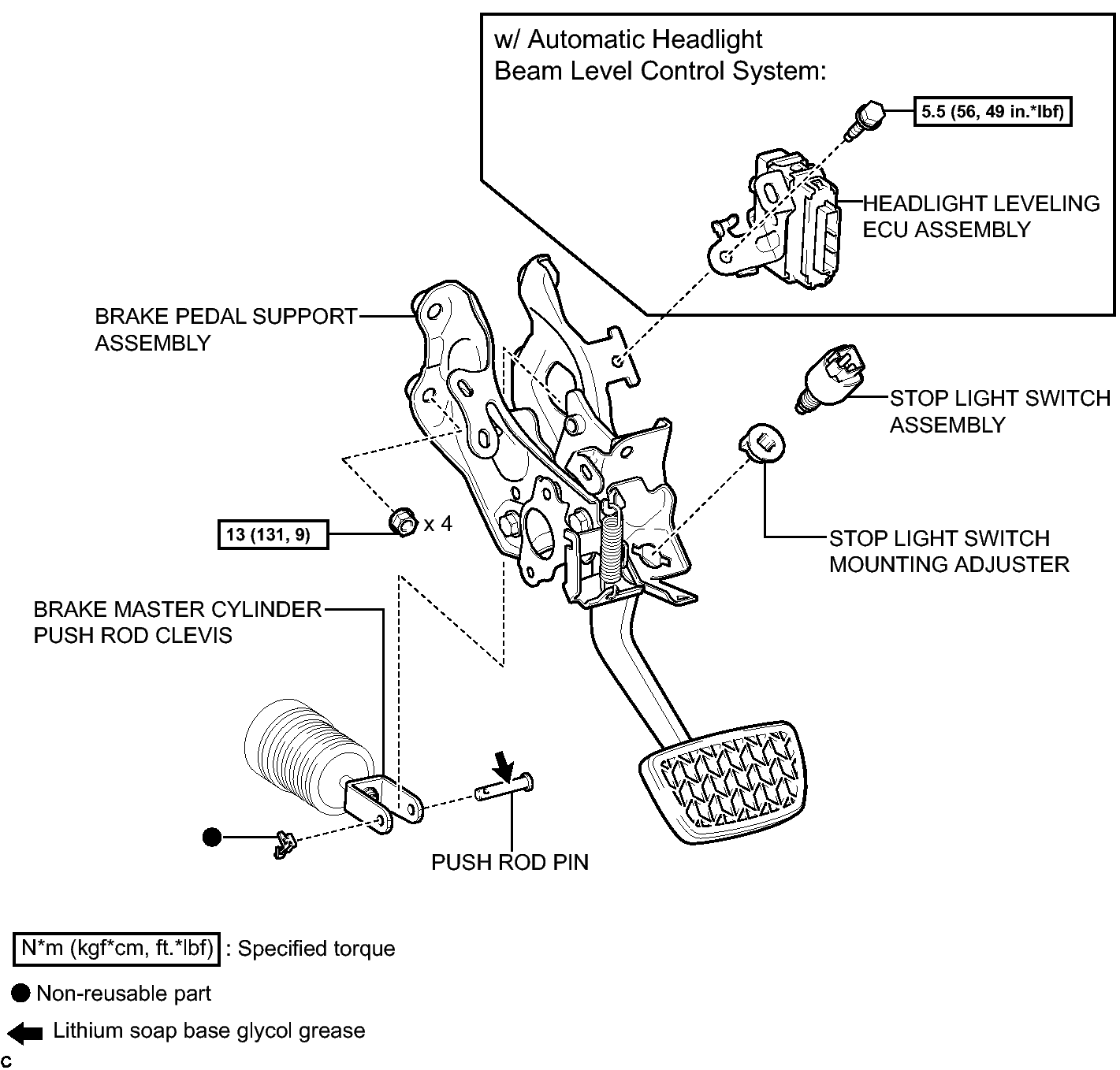

Fig 1: Identifying Brake Pedal Replacement Components With Torque Specifications (2 Of 3)
GTY410196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

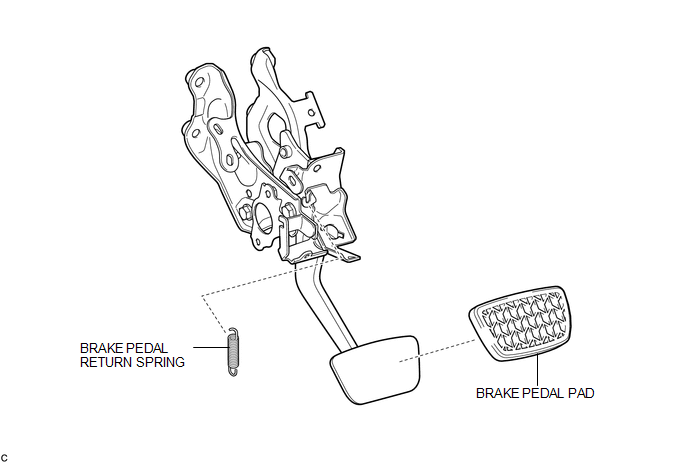

Fig 1: Identifying Brake Pedal Replacement Components (3 Of 3)
GTY380209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
