Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT BUMPER ASSEMBLY
Refer to REMOVAL [08/2013 - ]
REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY
1. Disconnect the connector.

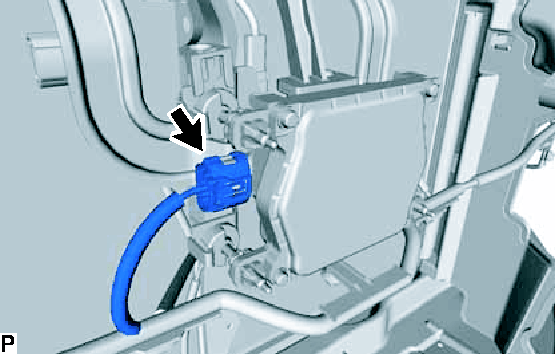

  Fig 1: Identifying Millimeter Wave Radar Sensor Assembly Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 3 bolts and the millimeter wave radar sensor assembly.

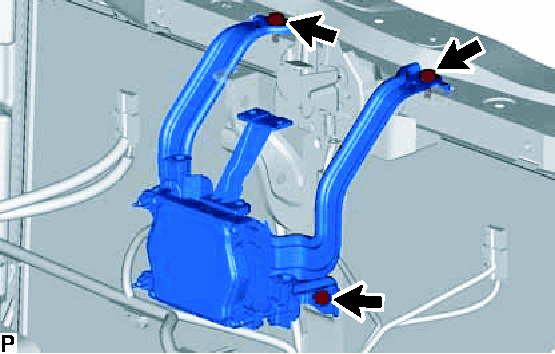

  Fig 2: Identifying Millimeter Wave Radar Sensor Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
