Parts Location [08/2013 - ]: Illustration

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

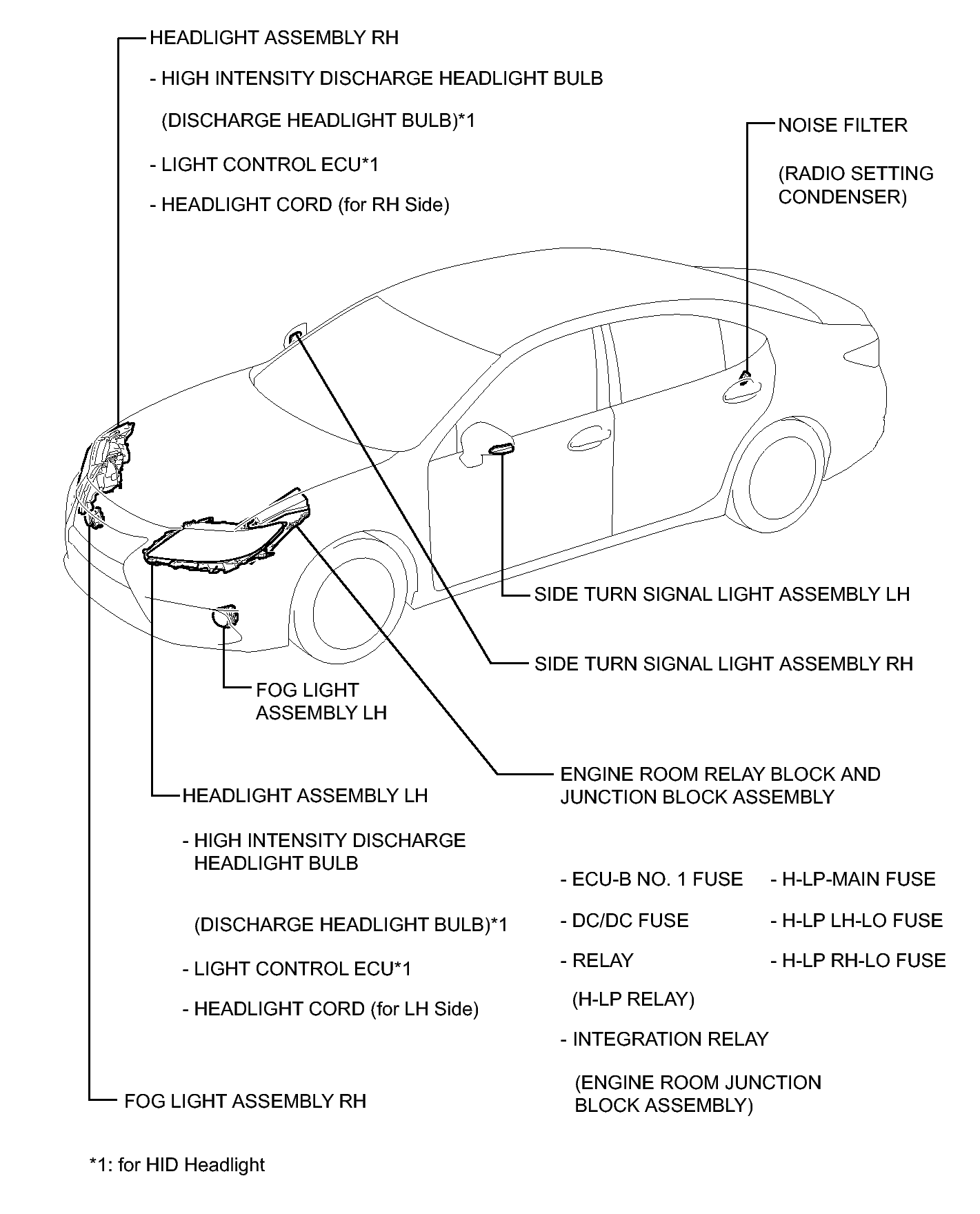

Fig 1: Identifying Lighting System Components Location (1 Of 4)
GTY397483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


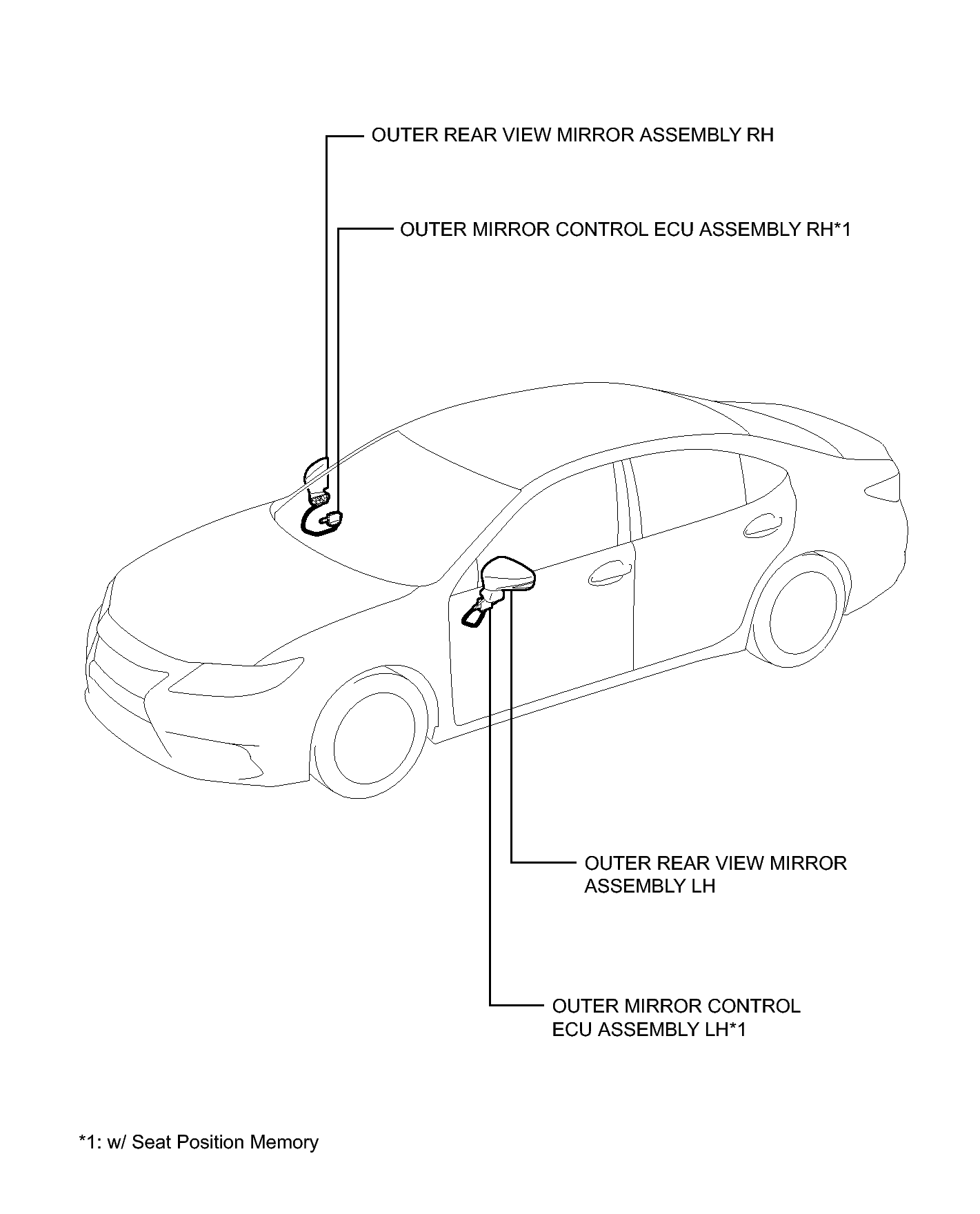

Fig 1: Identifying Lighting System Components Location (2 Of 4)
GTY420222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

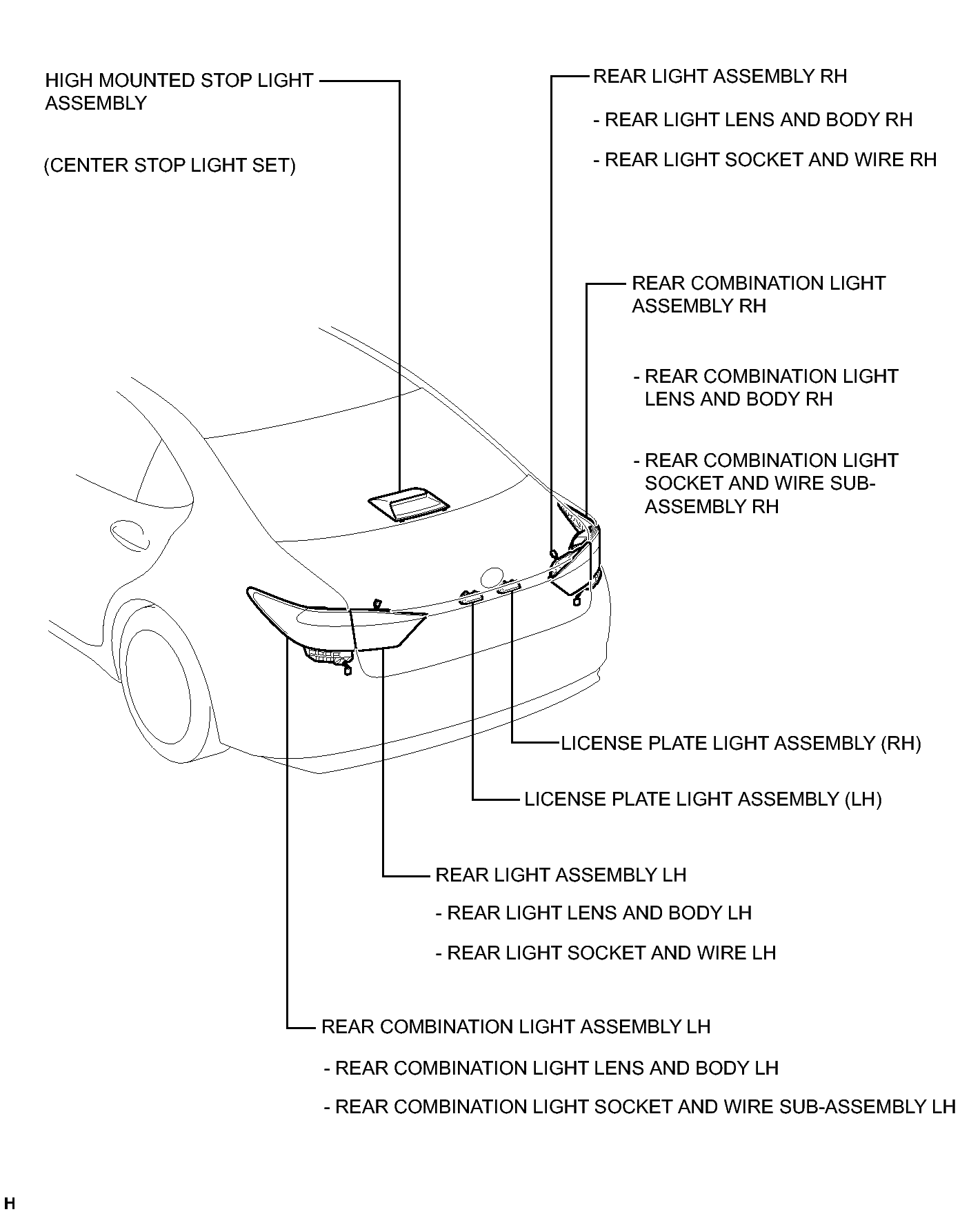

Fig 1: Identifying Lighting System Components Location (3 Of 4)
GTY412658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

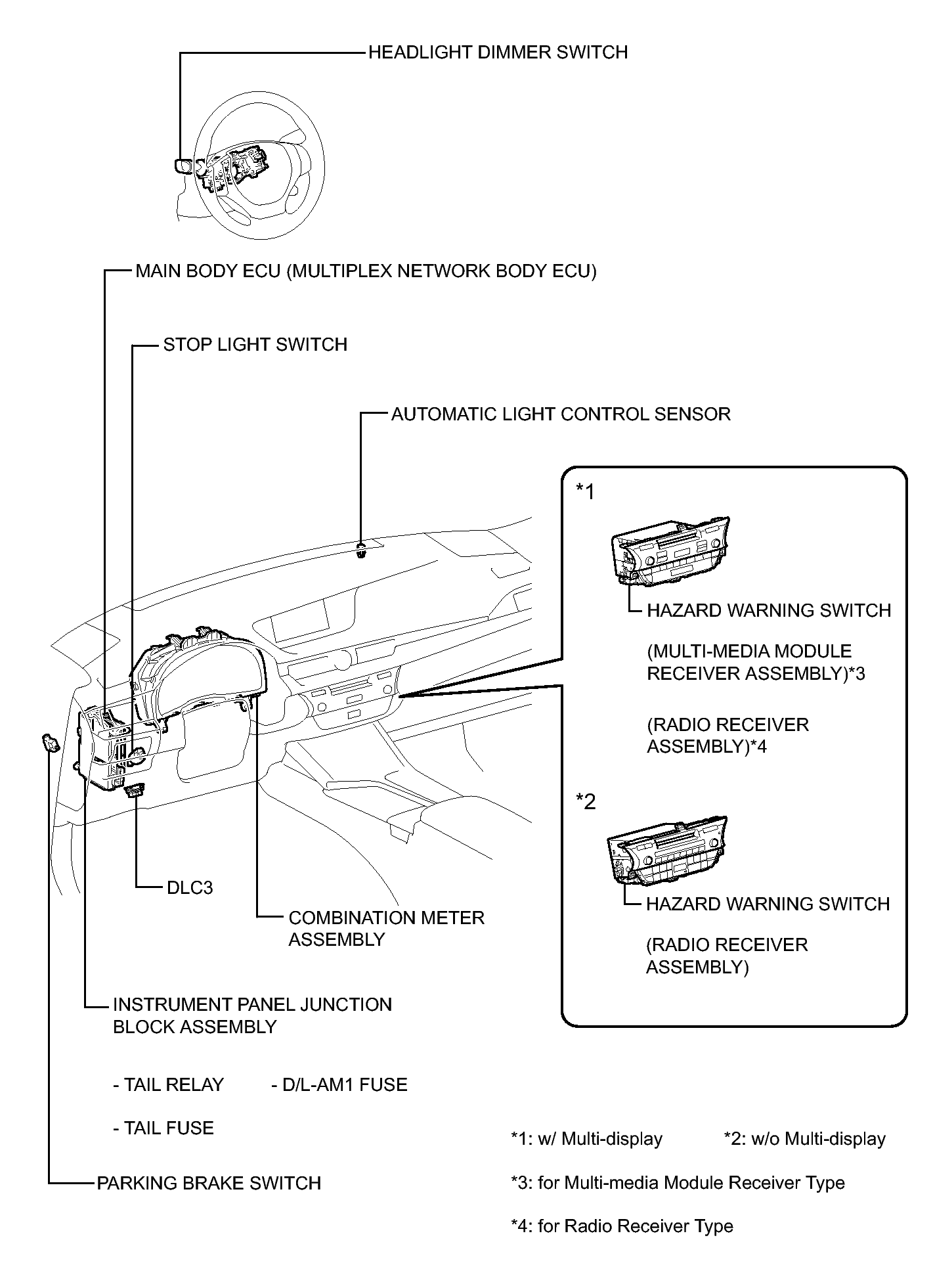

Fig 1: Identifying Lighting System Components Location (4 Of 4)
GTY407647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
