Parts Location [08/2013 - ]: Illustration

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

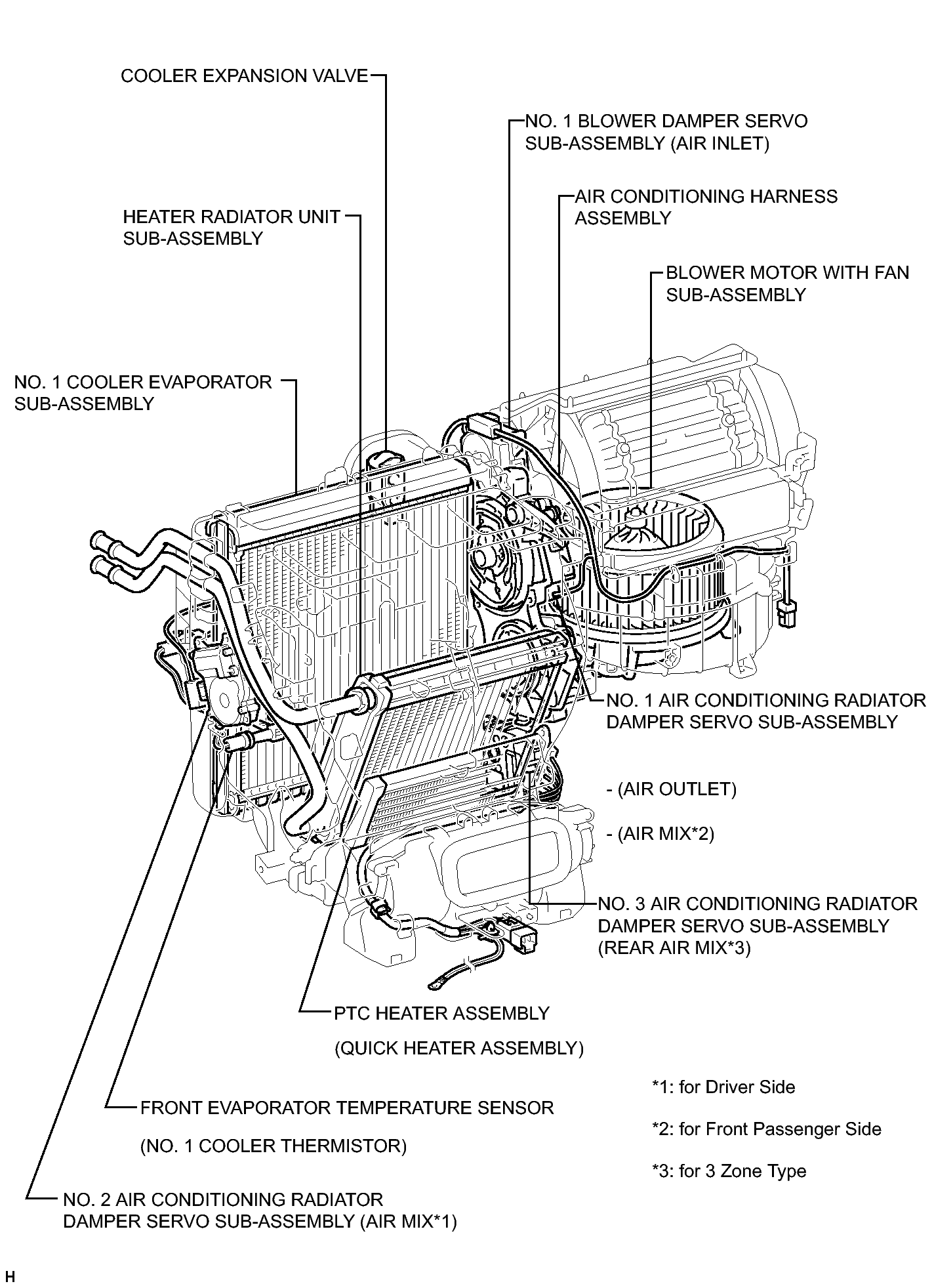

Fig 1: Identifying Air Conditioning System Components Location (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

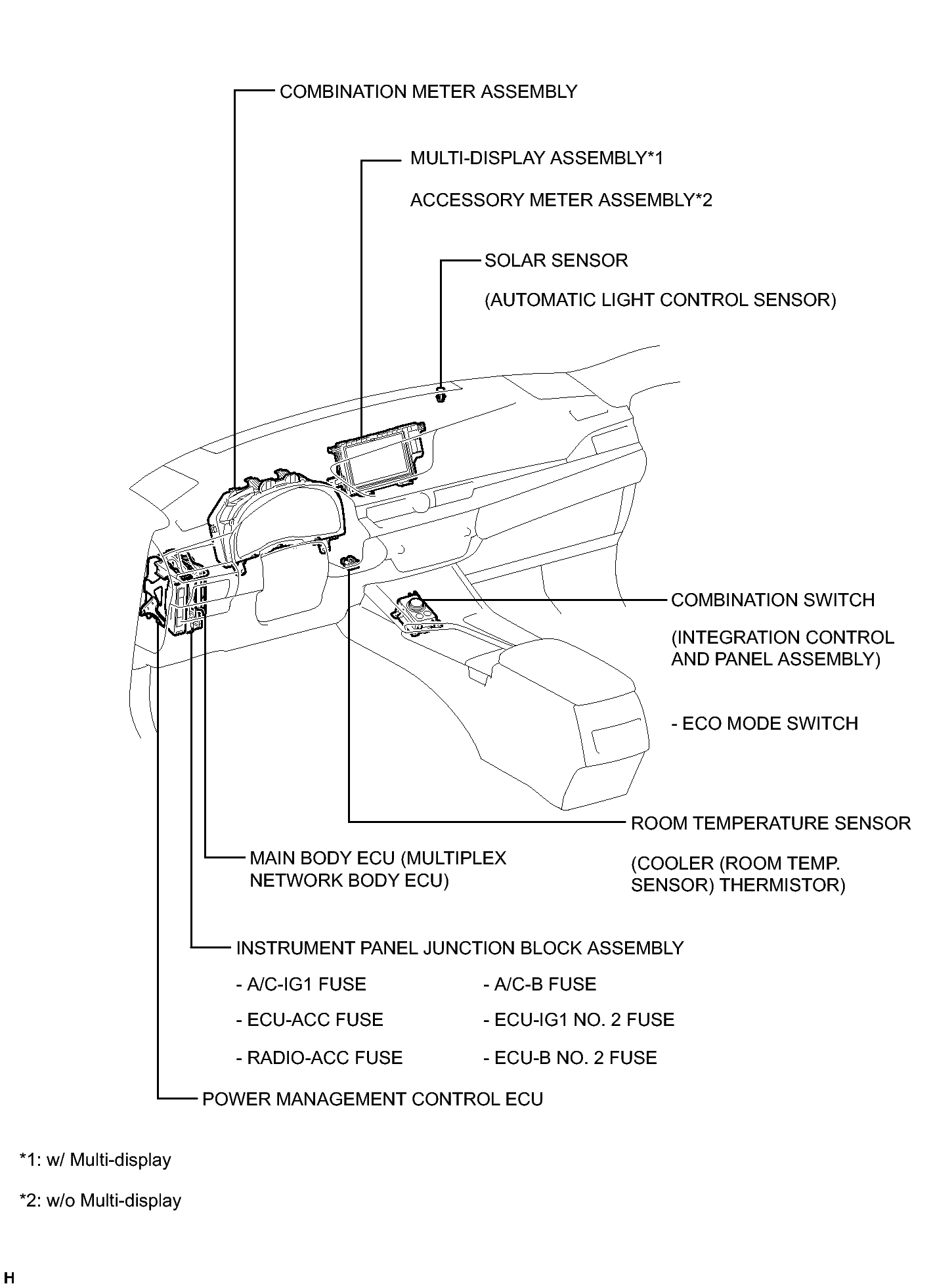

Fig 1: Identifying Air Conditioning System Components Location (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

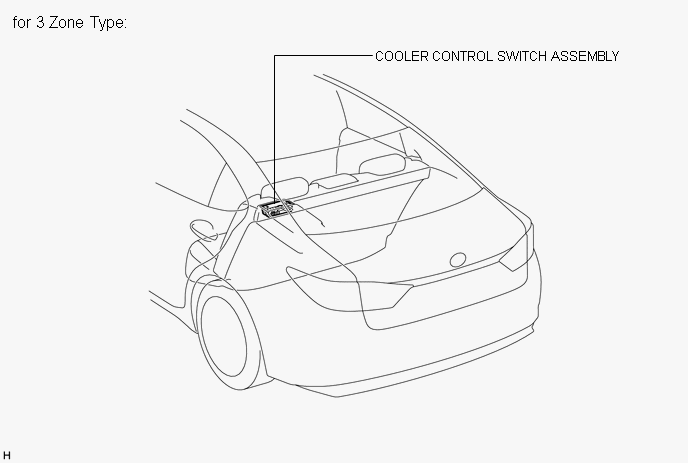

Fig 1: Identifying Air Conditioning System Components Location (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

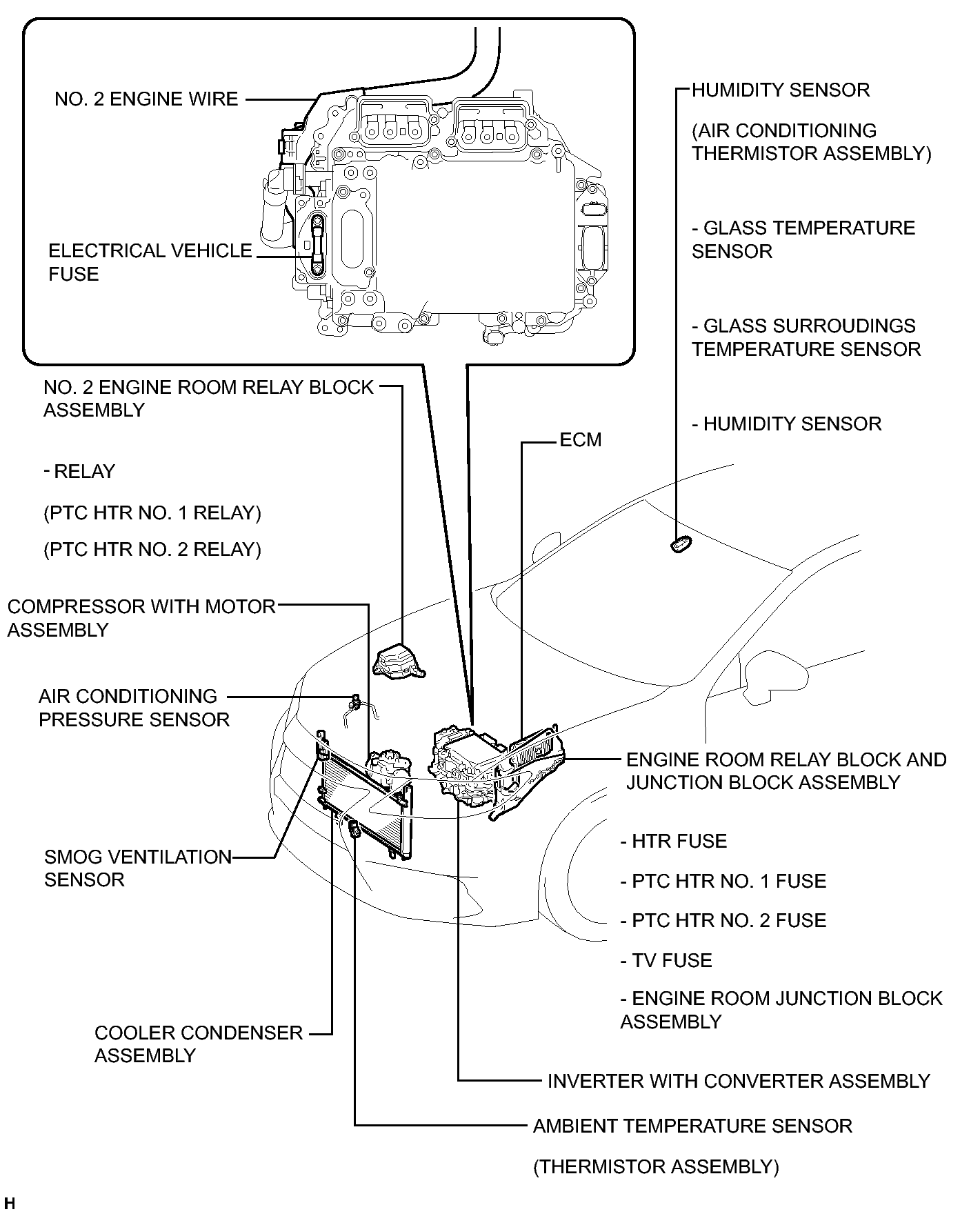

Fig 1: Identifying Air Conditioning System Components Location (4 Of 5)

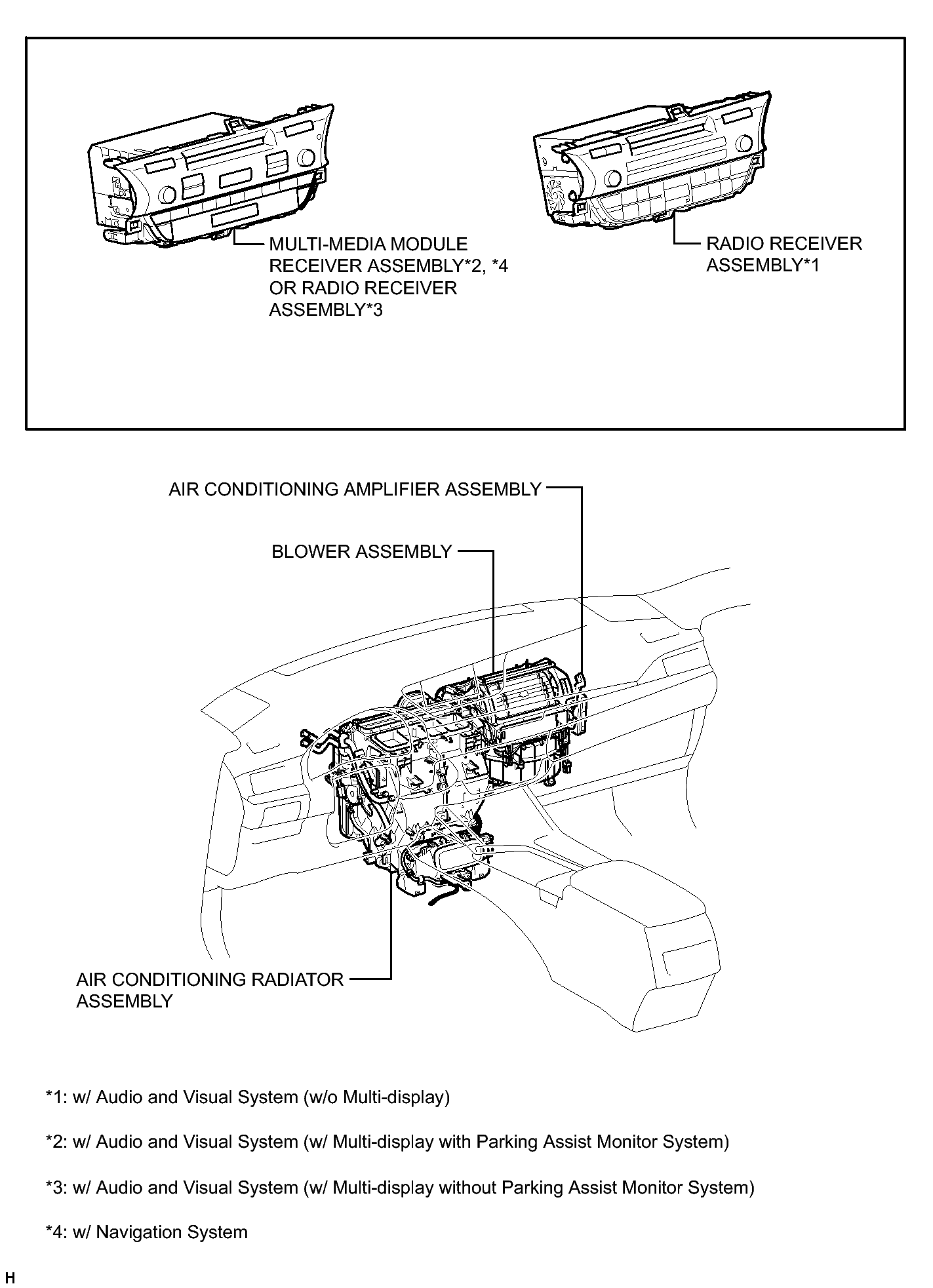

Fig 1: Identifying Air Conditioning System Components Location (5 Of 5)
