Section 339 (Meter / Gauge / Display (Diagnostics - Introduction))
>>
Meter / Gauge System
>>
Parts Location [08/2013 - ]
>>
Illustration
Parts Location [08/2013 - ]: Illustration
WARNING:
This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

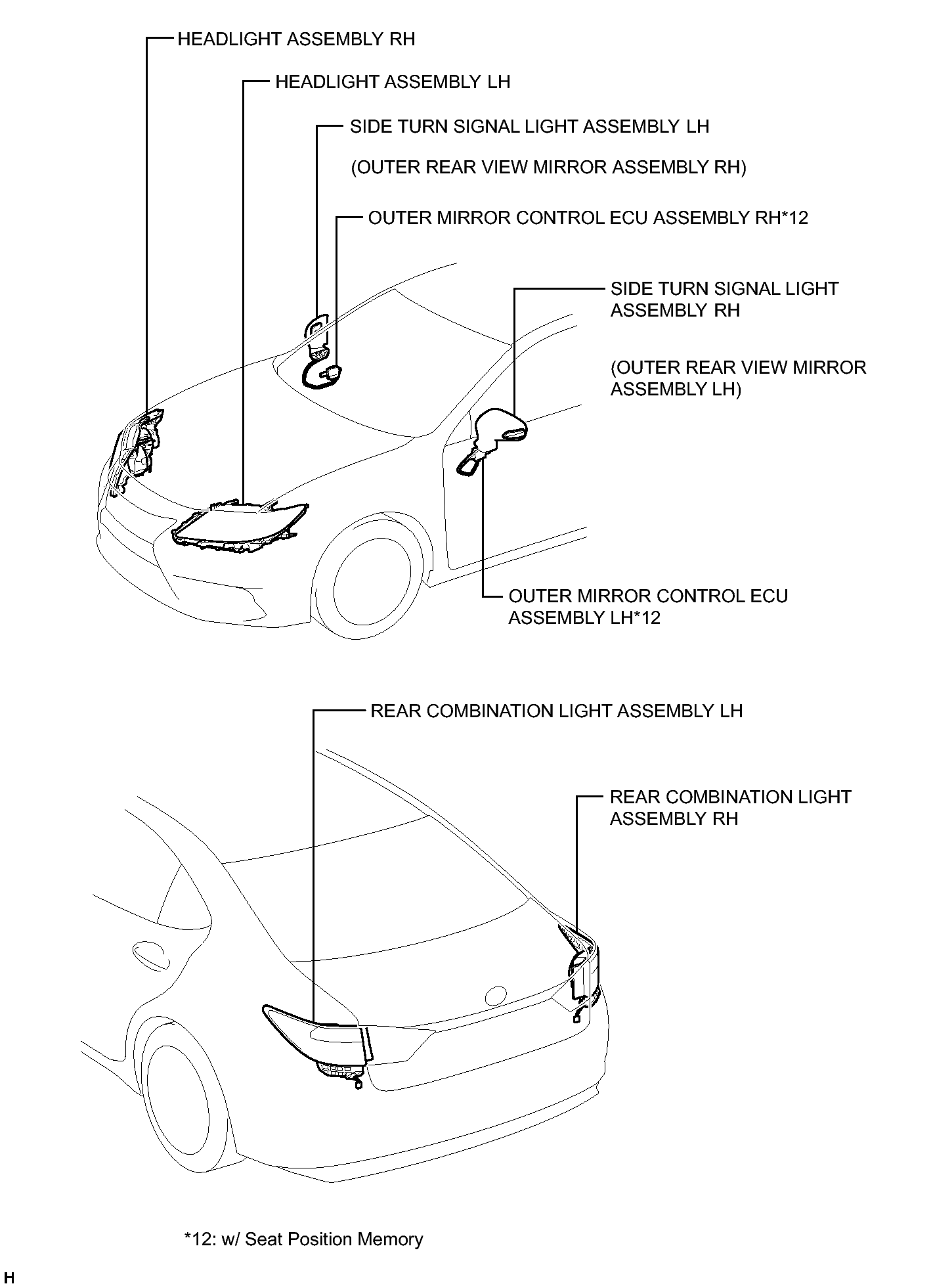

Fig 1: Identifying Meter/Gauge System Components Location (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

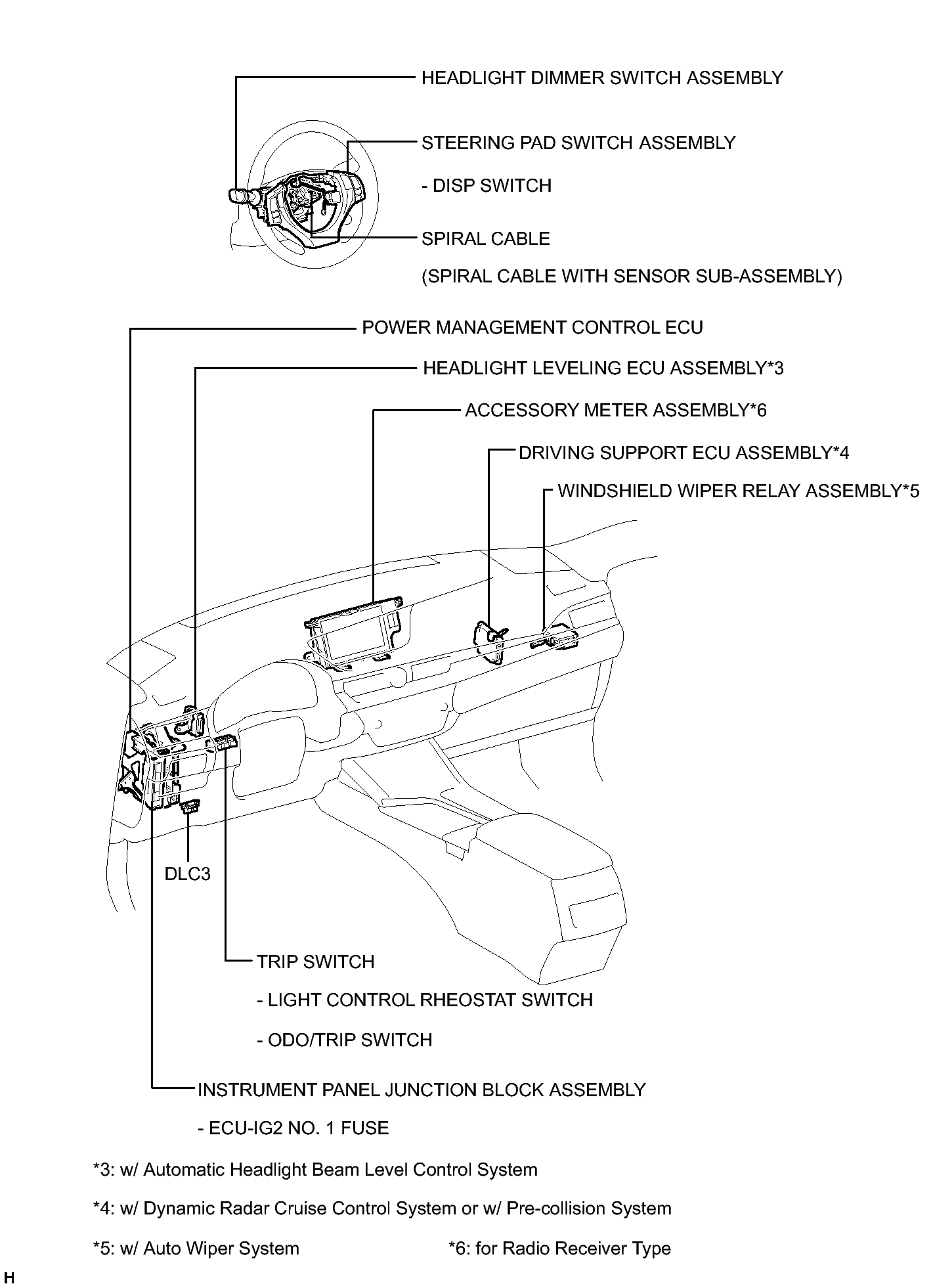

Fig 1: Identifying Meter/Gauge System Components Location (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

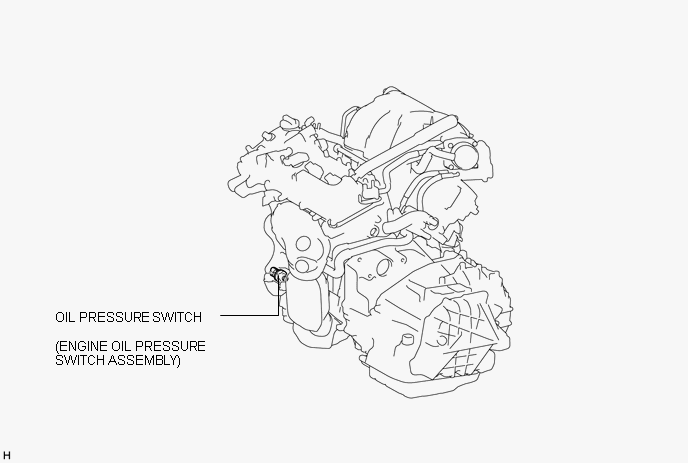

Fig 1: Identifying Meter/Gauge System Components Location (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

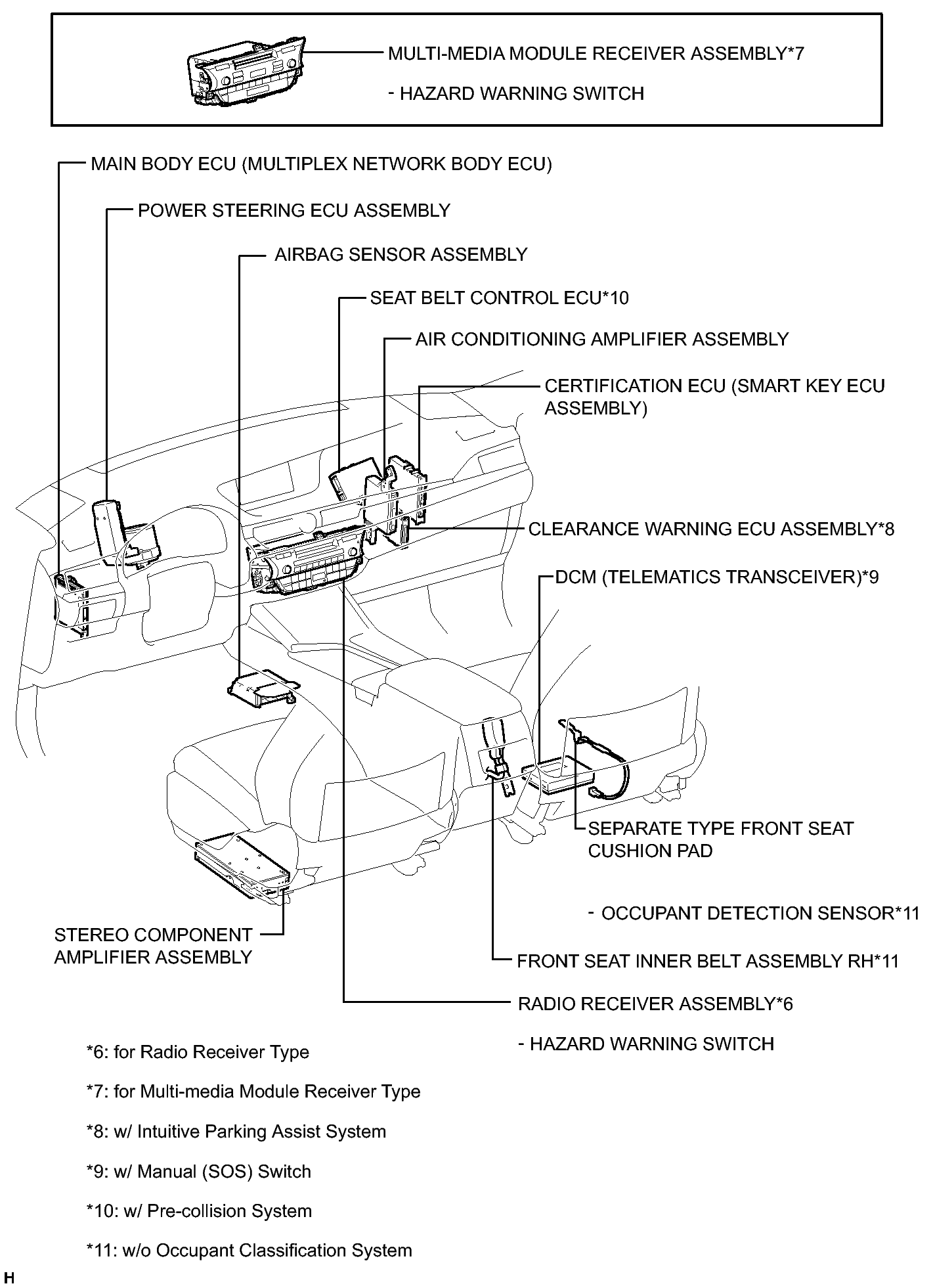

Fig 1: Identifying Meter/Gauge System Components Location (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

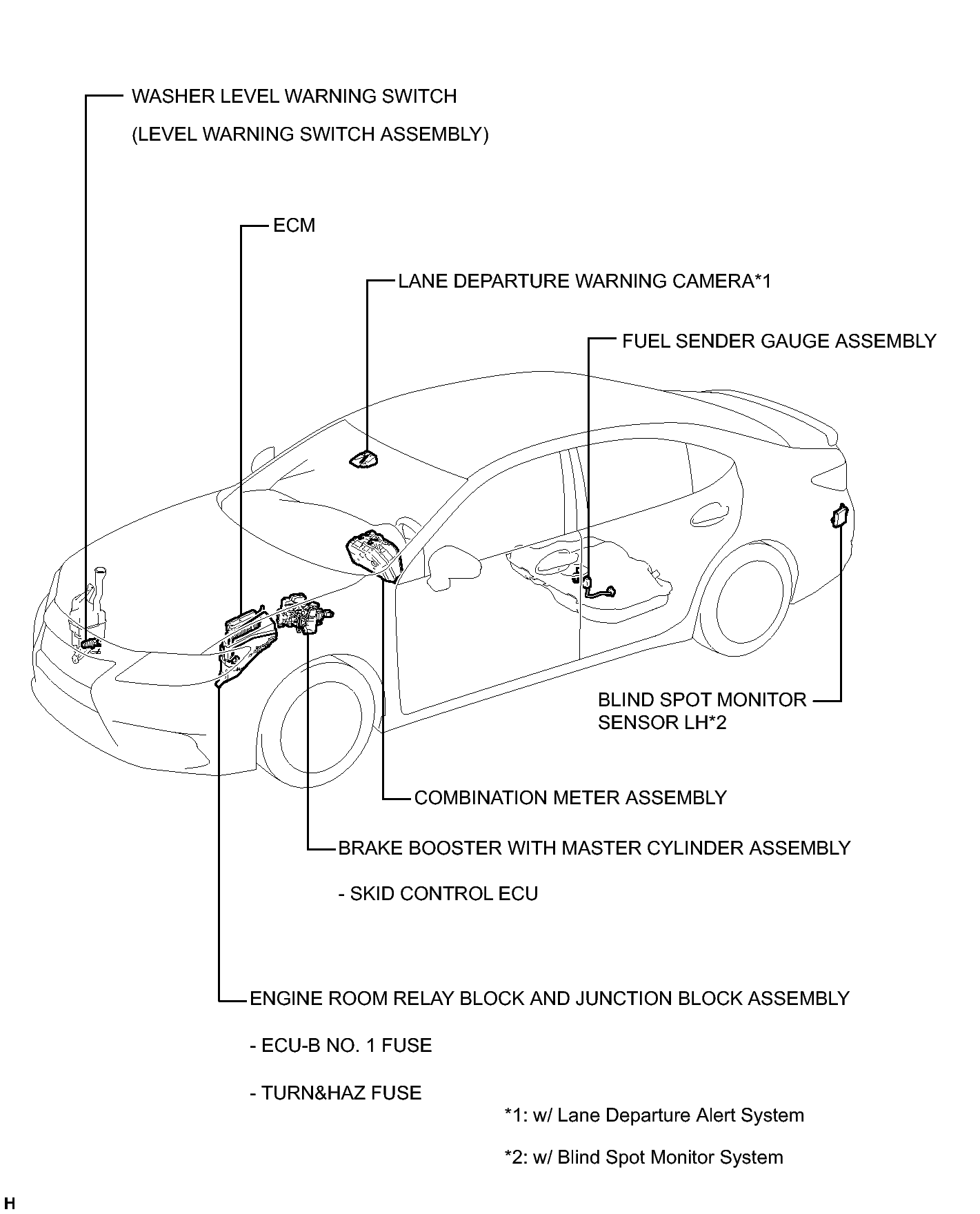

Fig 1: Identifying Meter/Gauge System Components Location (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
