Parts Location [08/2013 - ]: Illustration

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

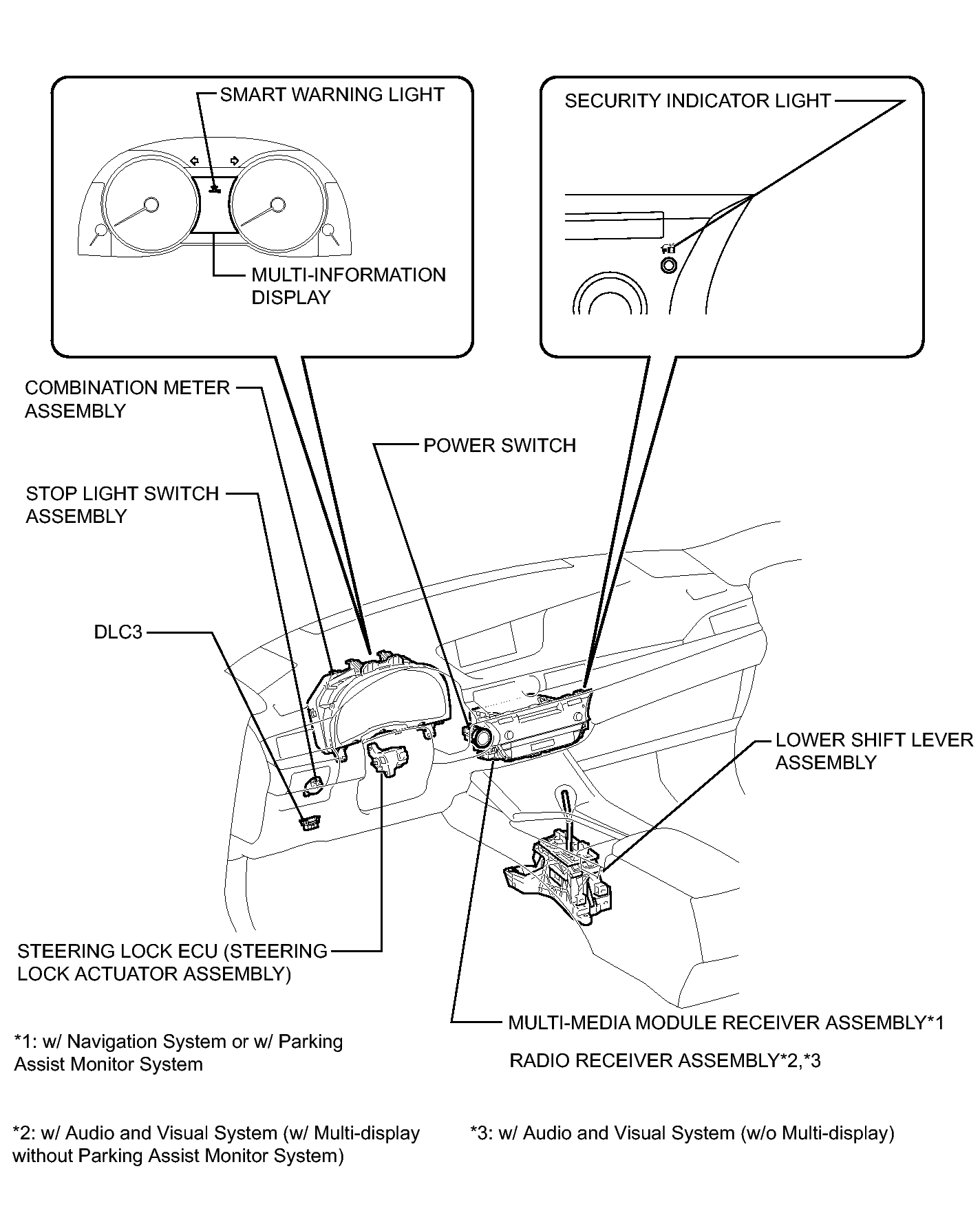

Fig 1: Identifying Smart Access System With Push-Button Start (For Entry Function) Components Location (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

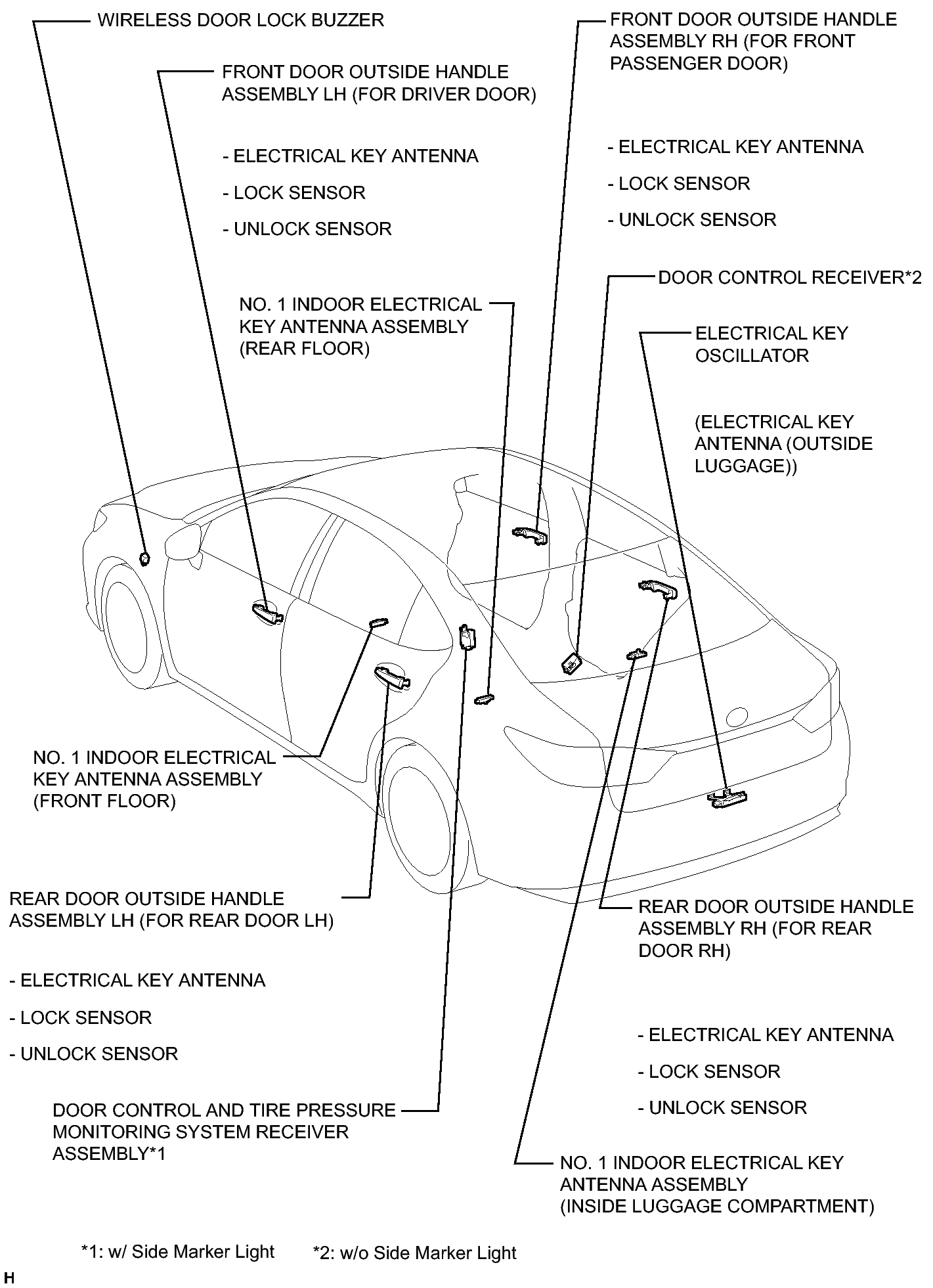

Fig 1: Identifying Smart Access System With Push-Button Start (For Entry Function) Components Location (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

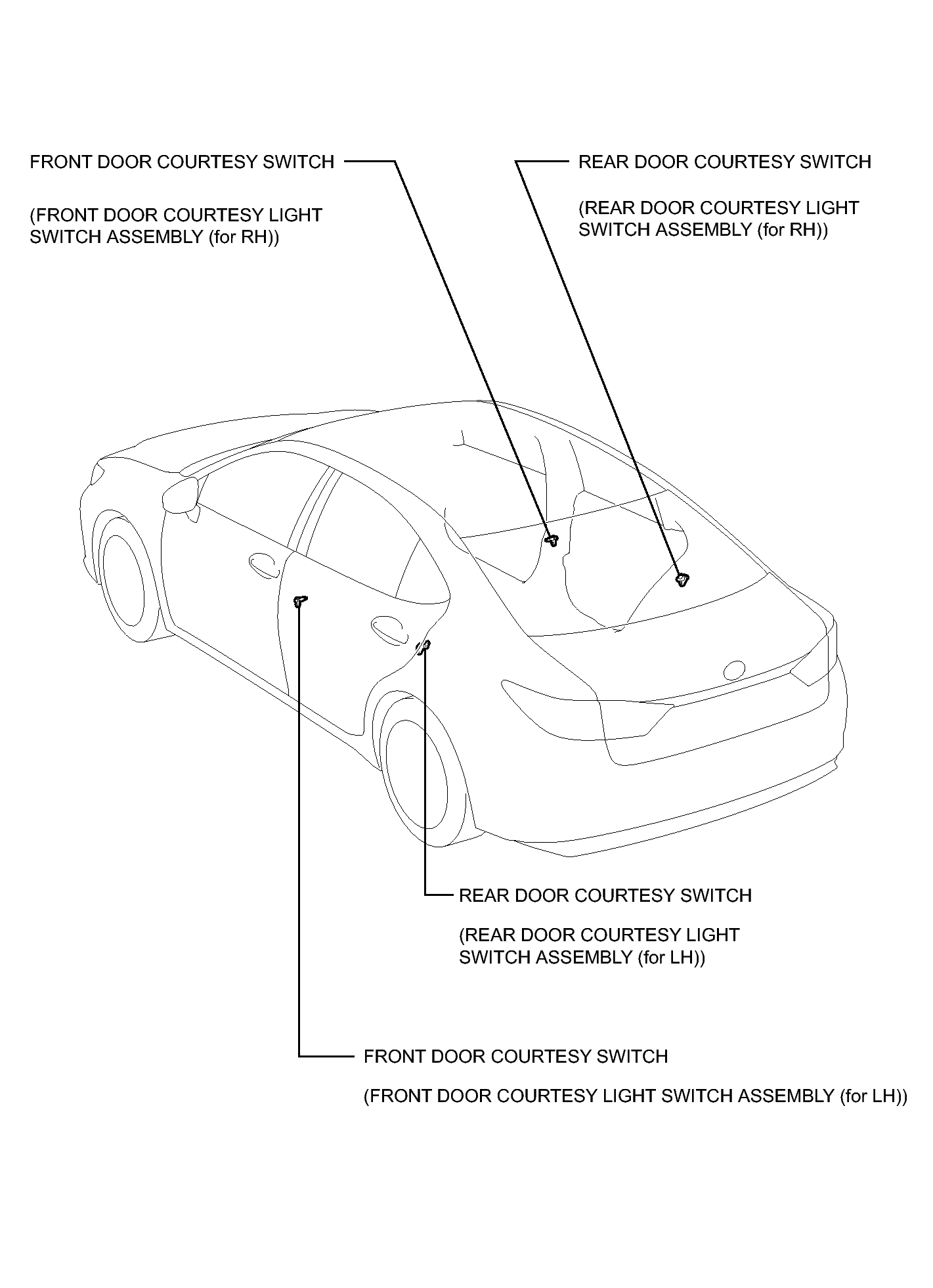

Fig 1: Identifying Smart Access System With Push-Button Start (For Entry Function) Components Location (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

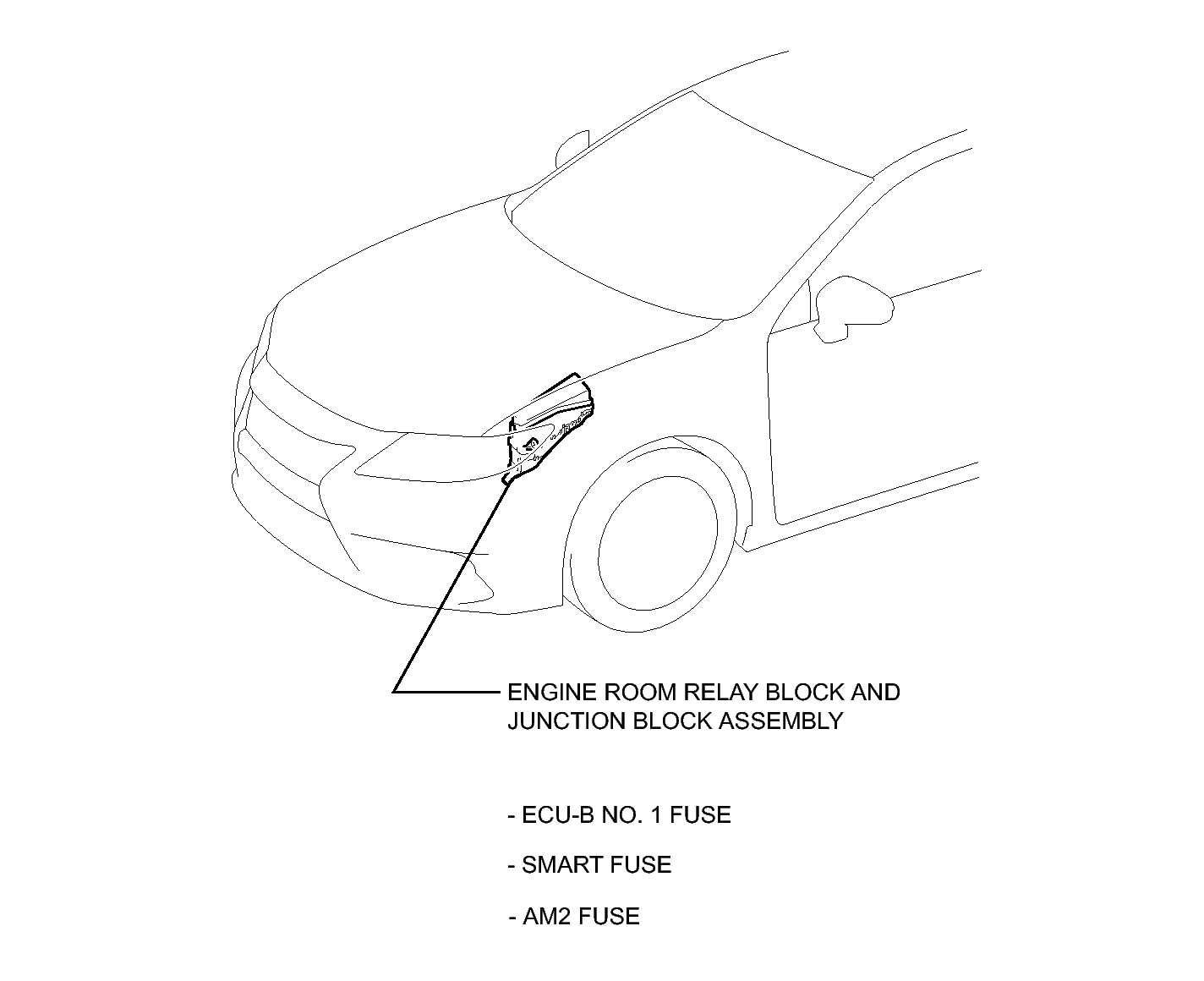

Fig 1: Identifying Smart Access System With Push-Button Start (For Entry Function) Components Location (4 Of 6)

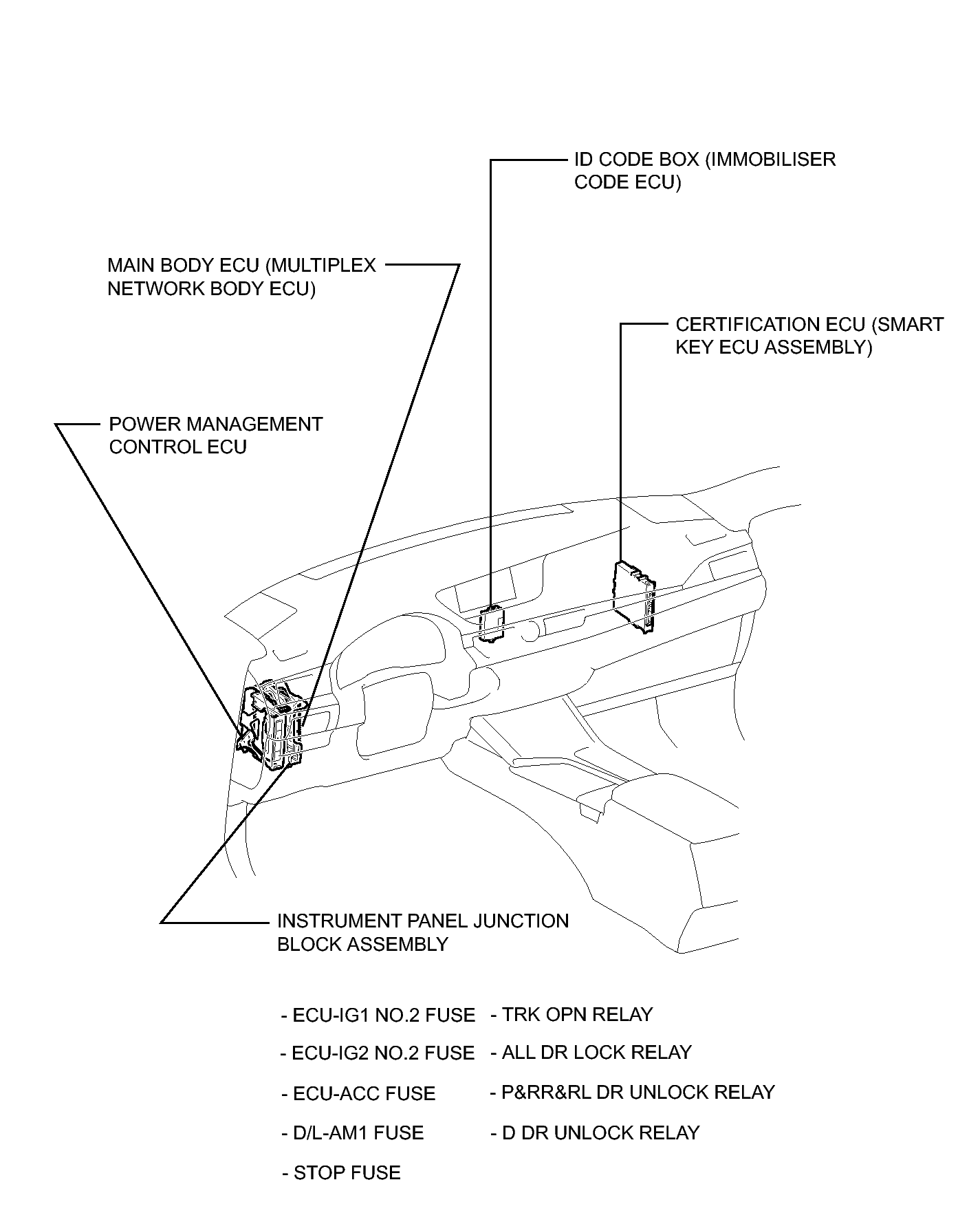

Fig 1: Identifying Smart Access System With Push-Button Start (For Entry Function) Components Location (5 Of 6)

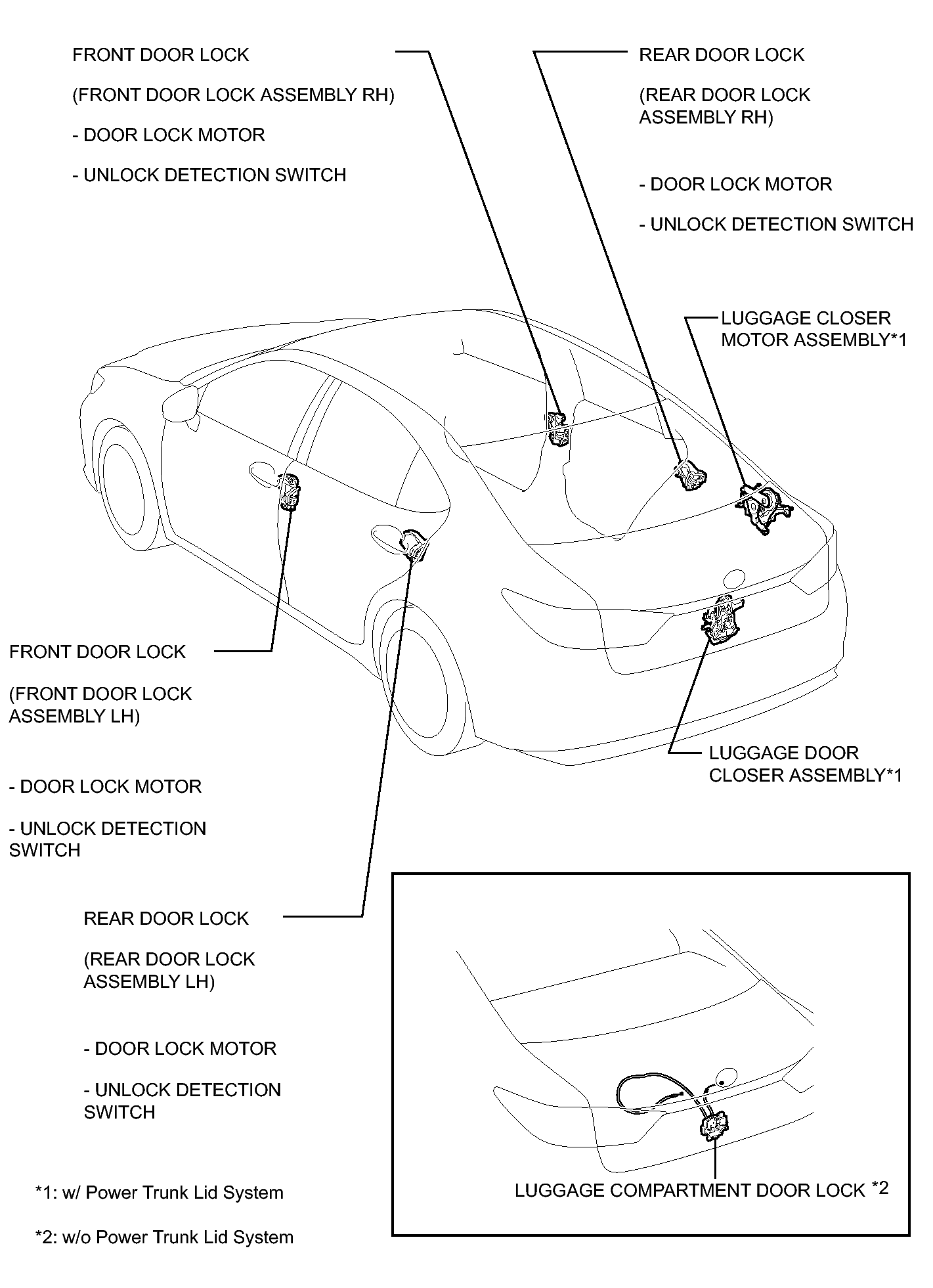

Fig 1: Identifying Smart Access System With Push-Button Start (For Entry Function) Components Location (6 Of 6)
