Installation [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL OCCUPANT DETECTION ECU
1. Engage the claw to install the occupant detection ECU.

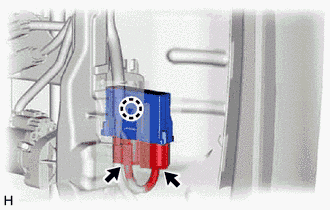

  Fig 1: Installing Occupant Detection ECU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  If the occupant detection ECU has been dropped, or there are any cracks, dents or other defects in the case or connector, replace the occupant detection ECU with a new one.
2. Connect the 2 connectors.
  NOTE:
  When installing the occupant detection ECU, be careful that the SRS wiring does not interfere with or is pinched between other parts.
INSTALL FRONT SEAT ASSEMBLY RH
HINT:

Use the same procedure for the RH side and LH side. Refer to INSTALLATION [08/2013 - ] .
PERFORM DIAGNOSTIC SYSTEM CHECK
Refer to DTC CHECK / CLEAR [08/2013 - ]
PERFORM ZERO POINT CALIBRATION AND SENSITIVITY CHECK
Refer to INITIALIZATION [08/2013 - ]
