Vehicle Identification And Serial Numbers [08/2013 - ]
WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
- VEHICLE IDENTIFICATION NUMBER

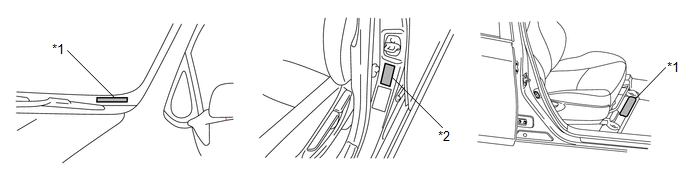

- The vehicle identification number is stamped on the vehicle body and on the certification label as shown in the illustration.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 TEXT IN ILLUSTRATION
| *1 |
Vehicle Identification Number |
*2 |
Certification Label |
- ENGINE SERIAL NUMBER AND TRANSAXLE CODE

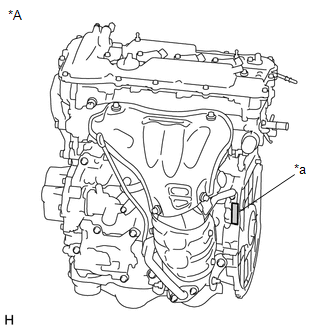

- The engine serial number is stamped on the cylinder block of the engine as shown in the illustration.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 TEXT IN ILLUSTRATION
| *A |
2AR-FXE |
| *a |
Engine Serial Number |
- The transaxle code is stamped on the case as shown in the illustration.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 TEXT IN ILLUSTRATION
| *A |
P314 |
| *a |
Transaxle Code |
