Drive shaft, servicing
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- General repair instructions. Refer to Repair instructions .
- Drive shaft may be bent without force up to stop of the central constant velocity joint. Further bending may cause damage to the joint or to the boots.
- Only store and transport drive shaft extended.
- No repair work can be carried out on the drive shaft with the exception of removing, installing and adjusting.
- If the drive shaft is only detached at the transmission or from rear final drive then the drive shaft is to be tied-up at the constant velocity joint. The drive shaft may also be bent without force up to the stop of the central constant velocity joint, if necessary.
- Prior to removal mark the position of all parts in relation to each other. Reinstall in the same positions otherwise the imbalance will be excessive; the bearings could be damaged and humming noises may occur.
- After removing the drive shaft from the rear final drive, a thick washer that may be located between the shim and the hexagon socket head bolt must not be reinstalled.
- If complaints are received (noises, vibrations), it is essential to check the radial run-out to drive flange at the rear final drive. A correct adjustment may repair the problem. Refer to Drive shaft flange, measuring and marking radial run-out .

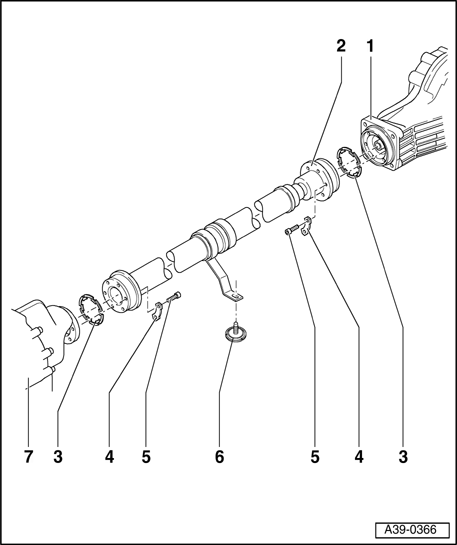

1 - Rear final drive
2 - Drive shaft
- Removing and installing. Refer to Drive shaft, removing and installing .
3 - Gasket
- Replace
- Detach protective foil and stick self-adhesive side of the gasket onto flange shaft
- Degrease flange shaft
4 - Shim
5 - Hex socket-head bolt - 55 Nm
- Self-locking
- Replace
- The tapped holes for the bolts in the flange shaft must always be cleaned (e.g. with a thread tap)
6 - Combi bolt - 23 Nm
7 - Transmission
