Differential, removing and installing: Notes
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
- General repair instructions. Refer to Repair instructions .
- Adjustments are required when replacing components marked 1). Refer to Adjustment overview .

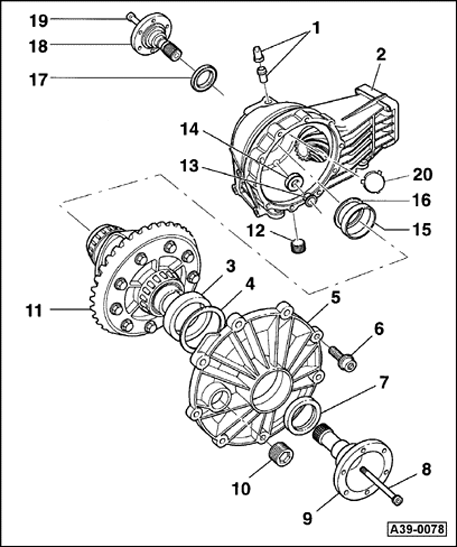

Secure final drive on a repair stand. Refer to Rear final drive, attaching to assembly bracket .
1 - Vent sleeve
- With rubber valve
- Installation position. See Figure.
2 - Final drive housing 1)
- Removing and installing drive pinion. Refer to Drive pinion, removing and installing and disassembling and assembling .
3 - Outer race for large taper roller bearing 1)
- Removing and installing. Refer to Differential, disassembling and assembling .
4 - Shim "S1"
- Note thickness
- Adjustment overview. Refer to Adjustment overview .
5 - Cover for final drive 1)
- With O-ring
- Replace O-ring
- Insert O-ring with oil
6 - TORX-screw - 25 Nm
7 - Seal, right
- Replacing. Refer to Flange shaft oil seals, replacing .
8 - Hex socket-head bolt - 25 Nm
9 - Flange shaft, right
- Removing and installing. See Figure
10 - Oil filler plug - 35 Nm
- Checking gear oil level in rear final drive. Refer to Gear oil level in rear final drive, checking
11 - Differential with ring gear 1)
- Disassembling and assembling. Refer to Differential, disassembling and assembling
12 - Oil drain plug, 35 Nm
13 - Socket
- Holds solenoid in position
- Drive in onto stop
14 - Solenoid
15 - Outer race for small taper roller bearing 1)
- Removing and installing. Refer to Differential, disassembling and assembling .
16 - Shim "S2"
- Note thickness
- Adjustment overview. Refer to Adjustment overview
17 - Seal, left
- Replacing. Refer to Flange shaft oil seals, replacing .
18 - Flange shaft, left
- Removing and installing. See Figure
19 - Hex socket-head bolt - 25 Nm
20 - Cap
- Installing. See Figure
