Transmission, removing and installing: Installing

WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Installation of transmission is the reverse of removal. The following points must also be observed:

Before installing:

Clean threads in output flange/driveshaft flange using a tap.
Clean ATF lines → ATF lines and ATF cooler, cleaning .
Insert torque converter correctly into transmission

CAUTION: In case of an incorrectly inserted torque converter, the coupling plate of the torque converter or the ATF-pump will be destroyed, if the transmission is flanged to the engine.

Installation dimension for torque converter, checking

Fig 1: Checking Torque Converter Is Correctly Positioned

Courtesy of VOLKSWAGEN UNITED STATES, INC.

When torque converter is installed correctly, distance between lower contact surface of threaded holes at torque converter and contact surface of converter housing on Automatic Transmission 01V is approx. 23 mm.

If the torque converter is not inserted completely, this distance will be approx. 11 mm.

Make sure bushings are correctly seated.

NOTE:

If the bushings get stuck in the transmission housing, they must be removed and new bushings must be installed on the engine.

Fig 2: Engine Cover Bolt Location

Courtesy of VOLKSWAGEN UNITED STATES, INC.

For 4 cylinder engines:

Item A = bushings

Fig 3: Identifying Engine/Transmission Bolts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

For 6 cylinder engines:

Item A = bushings

Fig 4: Setting Up Transmission Support 3282

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Prepare transmission support 3282 for Automatic Transmission 01V with adjustment plate 3282/10 and place it on the engine/transmission hoist VAG1383A.

NOTE:

The symbols on the adjustment plate indicate the necessary mounts for Automatic Transmission 01V and the arrow points toward front of vehicle.

Place transmission onto transmission support.

Fig 5: Supporting Transaxle

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Secure transmission on transmission support 3282 using bolt - A -.
Move transmission into position between the lowered subframe and vehicle floor.
Align transmission properly to engine.
Tighten one engine/transmission connecting bolt at either side by hand.

Make sure that wires do not get pinched as transmission is docked at engine.

CAUTION: Keep checking whether the torque converter behind the drive plate can be turned before and during tightening of the bolts at engine/transmission flange. If the torque converter cannot be turned, it must be assumed that it has not been inserted properly and that the coupling plate of the torque converter or the ATF pump will be destroyed during final tightening of the bolts.

Fig 6: Identifying Torque Converter To Drive Plate Bolts (3 Total)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Bolt together torque converter and drive plate.
To do this insert bolts by hand and tighten to tightening torque.
Insert top engine/transmission connecting bolts and tighten to tightening torque.

NOTE:

Some bolts also have a bracket or a Ground (GND) connection attached refer to tightening torque tables starting on → → Tightening torques .

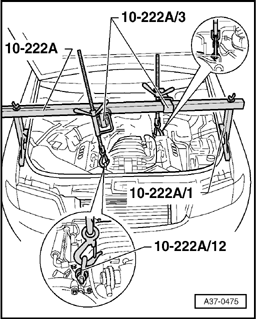

Fig 7: Fitting Support Bar 10-222A Together With Supports 10-222A/1 And Fit Adapters 10-222A/3

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Raise engine-transmission-subframe using the spindles approx. 4 turns. To do this use Support VAS5058.
To do this raise engine/gearbox assembly using spindles in turn, 2 turns at a time.
At the same time raise engine-transmission-subframe using lifter VAG1383A (second mechanic).
Insert remaining engine/transmission connecting bolts and tighten to tightening torque

Fig 8: Identifying Fasteners Requiring Removing To Lower Transmission

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Install subframe, observe tightening sequence and alignment with master bore hole. → 40 - FRONT SUSPENSION
Only perform vehicle alignment if necessary. → 44 - WHEELS, TIRES, VEHICLE ALIGNMENT
Install right transmission support with transmission mount → Right and left transmission mounts, removing and installing

Fig 9: Screwing On Lower Nuts On Left And Right Engine Mounts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Screw on lower nuts - A - on left and right engine mounts. →
- 26 - EXHAUST SYSTEM, EMISSION CONTROLS for 1.8 LITER 4-CYL. 5V TURBO ENGINE MECHANICAL, ENGINE CODE(S): AMB
- 26 - EXHAUST SYSTEM, EMISSION CONTROLS for 2.0 LITER 4-CYL. 4V TURBO ENGINE MECHANICAL, ENGINE CODE(S): BPG, BWT
- 26 EXHAUST SYSTEM, EMISSION CONTROLS for 3.0 LITER 6-CYL. 5V ENGINE MECHANICAL, ENGINE CODE(S): AVK, BGN
- 26 - EXHAUST SYSTEM, EMISSION CONTROLS for 3.2 V6 4V ENGINE MECHANICAL, ENGINE CODE(S): BKH
- 26 - EXHAUST SYSTEM, EMISSION CONTROLS for 4.2 LITER V8 4V ENGINE MECHANICAL, ENGINE CODE(S): BNS
- 26 - EXHAUST SYSTEM, EMISSION CONTROLS for 4.2 LITER V8 5V ENGINE MECHANICAL, ENGINE CODE(S): BHF

Vehicles with six-cylinder engine:

Fig 10: Unbolting Bolts For Stop/Torque Support

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Bolt on torque support stop - 1 - (arrows). →
- 10 - ENGINE - ASSEMBLY for 1.8 LITER 4-CYL. 5V TURBO ENGINE MECHANICAL, ENGINE CODE(S): AMB
- 10 - ENGINE - ASSEMBLY for 2.0 LITER 4-CYL. 4V TURBO ENGINE MECHANICAL, ENGINE CODE(S): BPG, BWT
- 10 ENGINE - ASSEMBLY for 3.0 LITER 6-CYL. 5V ENGINE MECHANICAL, ENGINE CODE(S): AVK, BGN
- 10 - ENGINE - ASSEMBLY for 3.2 V6 4V ENGINE MECHANICAL, ENGINE CODE(S): BKH
- 10 - ENGINE - ASSEMBLY for 4.2 LITER V8 4V ENGINE MECHANICAL, ENGINE CODE(S): BNS
- 10 - ENGINE - ASSEMBLY for 4.2 LITER V8 5V ENGINE MECHANICAL, ENGINE CODE(S): BHF

All:

Attach retaining clip for coupling rods of Left Front Level Control System Sensor G78 to left front control arm, if present. → 40 - FRONT SUSPENSION

Fig 11: Supporting Transaxle

Courtesy of VOLKSWAGEN UNITED STATES, INC.

After subframe is installed, remove bolt - A - and remove transmission jack VAG1383A.
Apply corrosion protection to contact surface between bolt - A - and oil pan.

Fig 12: Pushing Lever/Selector Shaft On Transmission Fully Forward Into Position "S"

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Push lever/selector shaft - 2 - on transmission fully forward (on illustration fully left).
Shift selector lever into "S" and carefully press up ball head of selector lever cable - 1 - on lever/shift rod - 2 - using a pair of pliers.

NOTE:

Do not deform lever/shift rod when pressing up or else shifting cannot be precisely adjusted any more.

Fig 13: Location Of Support Bracket For Selector Lever Cable

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Bolt on mounting bracket for selector lever cable to transmission corresponding to marking for re-installation of transmission.
Install shielding plate/selector lever cable, if present.

Fig 14: Unbolting Multi-Function Transmission Range (TR) Switch F125 For Protection Against Damage

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Install Multi-Function Transmission Range (TR) Switch F125 → Multi-Function Transmission Range (TR) Switch F125 , removing and installing ; removing and installing Multi-Function Transmission Range (TR) Switch F125
Install left transmission support with transmission mount → Right and left transmission mounts, removing and installing .
Bolt driveshaft to transmission. →
- 39 FINAL DRIVE, DIFFERENTIAL for REAR FINAL DRIVE
- 39 - FINAL DRIVE, DIFFERENTIAL for REAR FINAL DRIVE 0AR

Fig 15: Identifying Heat Shield Fasteners For Torsen Differential

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Install heat shield for driveshaft at transmission (arrows).
Install starter. →
- 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL
- 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL for ELECTRICAL EQUIPMENT, CABRIOLET

Fig 16: Disconnecting ATF Lines

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Connect ATF lines - 1 - according to the respective color markings.

Fig 17: Unscrewing Nut For Clamp For ATF Lines

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Engage clamp for ATF lines and tighten nut - 2 -.

Fig 18: Location of Speedometer Vehicle Speed Sensor (VSS) G22, and Engine Speed (RPM) Sensor G28

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Connect connector of Speedometer Vehicle Speed Sensor (arrow A-).
Bolt Engine Speed (RPM) Sensor G28 (arrow - B - ) to transmission.

Fig 19: Identifying Noise Insulation Tray Bracket, Multi-Function Switch Connector, Locking Lever And Cable Tie

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Install noise insulation bracket - 1 -.
Connect connector - 2 - of wire for multi-function switch.
Connect connector for transmission wiring harness and swivel securing lever - 3 -.
Replace cable ties - 4 -.

Fig 20: Axle Shaft Shielding Plate

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Bolt on left and right driveshafts - 1 - to transmission flanges. → 40 - FRONT SUSPENSION
Install heat shields for left, if present, and right drive axles (arrows).

Third bolt is not visible in the illustration.

Install front exhaust system with catalytic converter. →
- 26 - EXHAUST SYSTEM, EMISSION CONTROLS for 1.8 LITER 4-CYL. 5V TURBO ENGINE MECHANICAL, ENGINE CODE(S): AMB
- 26 - EXHAUST SYSTEM, EMISSION CONTROLS for 2.0 LITER 4-CYL. 4V TURBO ENGINE MECHANICAL, ENGINE CODE(S): BPG, BWT
- 26 EXHAUST SYSTEM, EMISSION CONTROLS for 3.0 LITER 6-CYL. 5V ENGINE MECHANICAL, ENGINE CODE(S): AVK, BGN
- 26 - EXHAUST SYSTEM, EMISSION CONTROLS for 3.2 V6 4V ENGINE MECHANICAL, ENGINE CODE(S): BKH
- 26 - EXHAUST SYSTEM, EMISSION CONTROLS for 4.2 LITER V8 4V ENGINE MECHANICAL, ENGINE CODE(S): BNS
- 26 - EXHAUST SYSTEM, EMISSION CONTROLS for 4.2 LITER V8 5V ENGINE MECHANICAL, ENGINE CODE(S): BHF

Fig 21: Identifying Noise Insulation Panel Retainers

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Install noise insulation panel (arrows).
Install front wheels. → 44 - WHEELS, TIRES, VEHICLE ALIGNMENT
Remove engine support bridge 10-222A.
Fit intake air duct to intake manifold.

Install intake air guides.
Install engine cover.
Install left and right covers in engine compartment.

See Caution for connecting Telematics battery → Transmission, removing and installing

After connecting battery, enter anti-theft code for radio operating manual.
Check adjustment of selector lever cable → Selector lever cable, checking and adjusting .
Check gear oil in front final drive with transmission installed → Gear oil in front final drive, checking .
Then check ATF level and top off onward → Automatic Transmission Fluid (ATF), checking and changing .

Fully close power windows to stop.
Then activate all power window switches ( "up" ) for at least one second to activate automatic window raising/lowering.
Set clock to correct time.
