Peening baffle plate in position when replacing end cover
WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
- Use a blunt punch with a ball shaped end (ball-diameter 5 mm) to peen in position.
- Insert baffle plate.

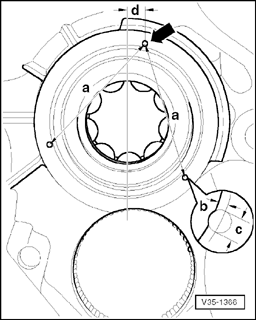

- Peen in first peening point -arrow- at distance -d- from the center line of the two shafts.
- Dimension d = 10 mm
- Observe position and diameter of peening positions:
- Distance b = 2 mm
- Dimension c = 3 mm
- Peen in second and third peening points in same manner at distance -a-.
- Distance a = 70 mm
