Clutch mechanism, servicing
WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

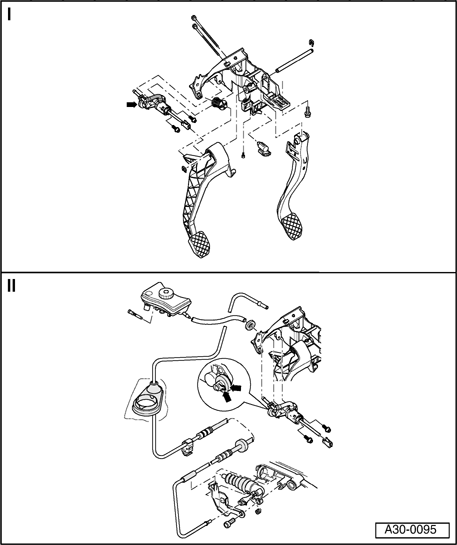

I - Exploded view of pedal cluster. Refer to Pedal cluster, assembly overview
II - Exploded view of hydraulic system. Refer to Hydraulic system, assembly overview
NOTE:
- Note or obtain radio code on vehicles with coded radio.
- Disconnect battery ground strap with the ignition switched off.
- Lubricate all bearings and contact surfaces with polycarbamide grease G 052 142 A 2.
CAUTION:
On vehicles equipped with Audi Telematics by OnStar ® , switch-off the emergency (back-up) battery for the Telematic/Telephone Control Module prior to disconnecting the vehicle battery. Switch-on the emergency (back-up) battery after reconnecting the vehicle battery. Refer to
.- Remove cover below instrument panel, before working on foot pedal cluster
Refer to
- 68 - INTERIOR EQUIPMENT
- 68 - INTERIOR EQUIPMENT for Cabriolet
- Make sure brake fluid does not escape into footwell or plenum chamber or onto transmission below. If this does happen, clean the affected areas thoroughly.
- Protect the carpet from brake fluid using rags, when performing work in the footwell.
