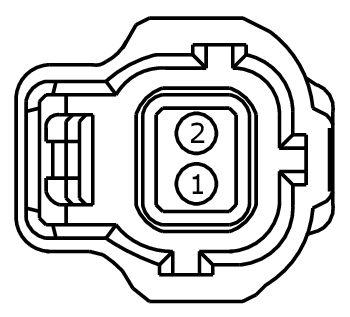

Connector End View C450 - Evaporative Emission (EVAP) Canister Vent Valve
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
EVAPORATIVE EMISSION (EVAP) CANISTER VENT VALVE
COLOR
HARNESS
14405
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBK02 (GN) | 18 | FUSE - 2 OR CIRCUIT BREAKER (VPWR 2) | |
| 2 | CE114 (GN-BU) | 20 | CTRL MOD. - POWERTRAIN # CANISTER VENT SOLENOID (CANVNT) |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-322 |
Service Part Number: 3U2Z-14S411-JZA Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Resistor - Daytime Running Lamp (DRL) Sensor - Air Charge Temperature Sensor - Brake Pressure Solenoid - Canister Vent Switch - Brake Pressure |
