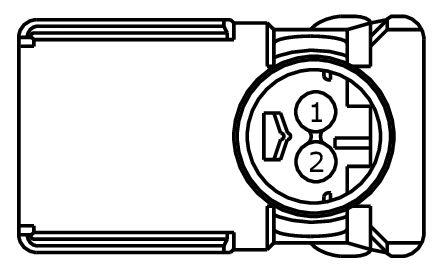

Connector End View C303 - Passenger Safety Belt PRETENSIONER
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
PASSENGER SAFETY BELT PRETENSIONER
COLOR
HARNESS
14A005
BASE PART #
PART# N/A
SERVICE PIGTAIL
NOT AVAILABLE
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CR179 (BU) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT PASSENGER OUTBOARD + | |
| 2 | RR179 (GY-BU) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT PASSENGER OUTBOARD - |
