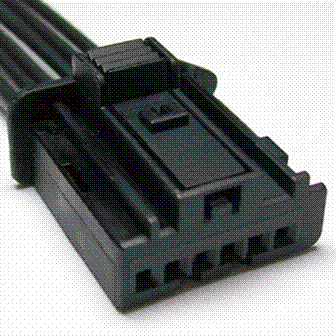

Connector End View C289 - Air Inlet Door Actuator
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
AIR INLET DOOR ACTUATOR
COLOR
HARNESS
19F561
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RH111 (GY-BU) | 22 | CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS | |
| 2 | VH438 (VT) | 26 | SENSOR - DOOR POSITION RECIRC. | |
| 3 | LH111 (BN-WH) | 22 | CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS | |
| 4 | * | * | Not Used | |
| 5 | CH208 (GN) | 26 | CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2 / OPEN (IF PLUS) | |
| 6 | CH207 (GY) | 26 | CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1 / CLOSE (IF PLUS) |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1151 |
Service Part Number: BU2Z-14S411-MA Gauge: 18 Pin material: Tin Cavities: 6 Vehicle Uses Motor - Heater A/C Mode Door Motor - Heater/AC Blend Door Motor - Heater/AC Blower (Auxiliary) Motor - Heater/AC Inlet Door |
