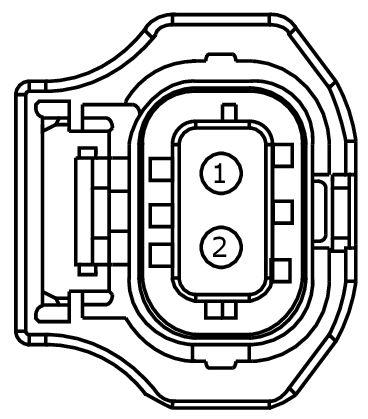

Connector End View C1508 - Variable Camshaft Timing Bank 2 Solenoid 2 (VCT22)
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
VARIABLE CAMSHAFT TIMING BANK 2 SOLENOID 2 (VCT22)
COLOR
HARNESS
12C508
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBK02 (GN) | 18 | FUSE - 2 OR CIRCUIT BREAKER (VPWR 2) | |
| 2 | CE443 (BN-VT) | 18 | CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 4 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1506 |
Service Part Number: AU2Z-14S411-DB Gauge: 14 Pin material: Silver Cavities: 2 Vehicle Uses Actuator - Door Lock Fuel Injector Injector - UREA Sensor - Fuel Rail Pressure Solenoid - Engine Variable Timing Solenoid - Fuel Volume Regulator Control Valve - Fuel Metering Valve - Heated PCV Valve - Vapor Management |
