Cylinder Head, Removing And Installing, Engine With Wrench Clearance: Removing

NOTE:

During installation, cable ties must be installed at the same location.

Always seal off any open channels in the intake and exhaust tract with suitable plugs. For example, from the Engine Bung Set VAS6122.

-- Remove the front noise insulation. Refer to Front Noise Insulation .

WARNING:

Risk of scalding due to hot steam and hot coolant.

The coolant system is under pressure when the engine is warm.
Reduce pressure by covering coolant reservoir cap with a cloth and carefully opening.

-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .

-- Remove the front exhaust pipe/front muffler. Refer to FRONT EXHAUST PIPE, REMOVING AND INSTALLING .

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Remove the plenum chamber cover. Refer to Bulkhead .

-- Disconnect the vacuum connection -2- from the plenum chamber bulkhead by remove the vacuum hose -3- on the back side in direction of -arrow-.

Fig 1: Disconnect Vacuum Connection

Courtesy of AUDI OF AMERICA, LLC

-- Remove the coolant hoses on the back of the cylinder head.

Fig 2: Identifying Fuel Line

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of contamination to the fuel system.

Note the rules of cleanliness for working on the fuel injection system. Refer to CLEAN WORKING CONDITIONS .

-- Disconnect the fuel lines -1 and 2-.

-- Perform a service position. Refer to SERVICE POSITION, PERFORMING AND RESETTING .

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Loosen the hose clamps -arrows- and remove the air guide hose.

Fig 3: Identifying Air Intake Hose Components

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the following connectors.

Fig 4: Connectors

Courtesy of AUDI OF AMERICA, LLC

2 -Disconnect from the Knock Sensor 1 -G61- and free up.

3 -From the Intake Manifold Runner Control Valve -N316-, Fuel Pressure Sensor -G247- and Camshaft Position Sensor -G40-.

4 -From the fuel injectors

5 -From the Throttle Valve Control Module -J338-.

6 -From the Intake Air Temperature Sensor -G42-.

-- Disconnect the connector -2- and free up the wire.

Fig 5: Generator Electrical Connector And Terminal B+

Courtesy of AUDI OF AMERICA, LLC

-- Remove the coolant line bracket -arrow-.

Fig 6: Locating Coolant Line Bolt

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The engine is not shown in the illustrations that follow.

-- Remove the intake manifold bracket by removing the mounting nut -1- and bolt -2-.

Fig 7: Identifying Intake Manifold Bracket Mounting Nut & Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the coolant hose -arrow-.

Fig 8: Disconnecting Coolant Hose

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 and 2- and move the oil supply line to the side.

Fig 9: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -3- and move the coolant line to the side.

-- Loosen the hose clamp -arrow-, pull of the air guide hose and move it to the side.

Fig 10: Identifying Hose Clamp

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors -1 and 4- from the Oil Pressure Switch -F22- and Reduced Oil Pressure Switch -F378-.

Fig 11: Identifying Oil Pressure Switch

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors -1 and 2- and free up the wire.

Fig 12: Disconnect Connectors

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the bolts -1- from above.

Fig 13: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2- from below.

-- Remove the bolts -arrows- on the oil return line.

Fig 14: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -arrows- and push the catalytic converter to the rear.

Fig 15: Identifying Nuts

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector from Camshaft Adjustment Valve 1 -N205- -1-.

Fig 16: Disconnect Connector

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and then the Camshaft Adjustment Valve 1 -N205-.

-- Remove the bolts -1 through 5- and the upper timing chain cover.

Fig 17: Identifying Upper Timing Chain Cover - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Remover the ignition coils with the power output stages. Refer to IGNITION COILS WITH POWER OUTPUT STAGES, REMOVING AND INSTALLING .

-- Remove the spark plugs using a Spark Plug Removal Tool 3122B.

-- Disconnect the crankcase ventilation hose -1-.

Fig 18: Locating Crankcase Ventilation Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and then remove the crankcase ventilation from the hose -2- in direction of -arrow-.

-- Disconnect the connectors -arrows- from the Cam Adjustment Actuators --.

Fig 19: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Cam Adjustment Actuators -- -arrows-.

Fig 20: Identifying Camshaft Adjuster Actuators

Courtesy of AUDI OF AMERICA, LLC

-- Turn the sealing plug -arrows- counterclockwise 90° in the direction of -arrow- and remove it.

Fig 21: Ball Head And Sealing Plug

Courtesy of AUDI OF AMERICA, LLC

-- Remove the ball head -1 through 2-.

-- Remove the cap.

-- Rotate the vibration damper using the Counterhold - Vibration Damper T10355 into the "Top Dead Center (TDC)" position.

Fig 22: Identifying Markings -1- On Camshafts Aligned To Point Upward

Courtesy of AUDI OF AMERICA, LLC

The notch on the vibration damper and the marking on the lower cover for timing chain must be opposite one another -arrow-.
The markings -1- on the camshafts must point upward.

-- Remove the cylinder head bolts -1 and 2- with the Polydrive Bit Drive Socket T10070.

Fig 23: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Danger of causing damage to the engine.

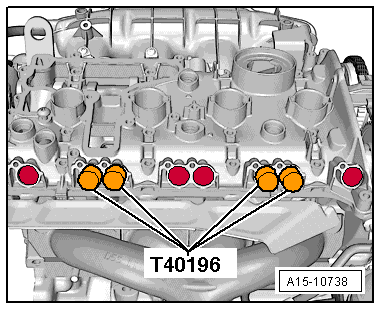

The Camshaft Pins T40196 may be installed only in the positions shown.

-- Install the Camshaft Pins T40196 as illustrated.

Fig 24: Identifying Special Tool T40196 Installation Positions

Courtesy of AUDI OF AMERICA, LLC

-- Turn the crankshaft 4 turns in the direction of engine rotation.

-- Remove the Camshaft Pins T40196.

CAUTION:

The control valve has a left thread.

-- Remove the control valve in direction of -arrow- with the Central Valve Assembly Tool T10352 or Central Valve Assembly Tool T10352/1, depending on the version.

Fig 25: Identifying Assembly Tool T10352 To Remove Control Valve

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the bearing bracket.

Fig 26: Bearing Bracket Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Rotate the vibration damper using the Counterhold - Vibration Damper T10355 into the "TDC" position.

Fig 27: Identifying Markings -1- On Camshafts Aligned To Point Upward

Courtesy of AUDI OF AMERICA, LLC

The notch on the vibration damper and the marking on the lower cover for timing chain must be opposite one another -arrow-.
The markings -1- on the camshafts must point upward.

-- Mark the camshaft timing chain and the cylinder head -arrows- to match the marking on the chain sprockets -1- with a waterproof marker.

Fig 28: Mark camshaft timing chain and the cylinder head

Courtesy of AUDI OF AMERICA, LLC

-- In addition, mark the camshaft timing chain to the camshaft timing chain guide rail -2- with a permanent marker.

-- Remove the plug -arrow-.

Fig 29: Identifying Plug

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

Fig 30: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -arrow-.

Fig 31: Identifying Bolt

Courtesy of AUDI OF AMERICA, LLC

Two Different Chain Tensioners May Be Installed Depending On the Version:

Fig 32: Identifying Version 1

Courtesy of AUDI OF AMERICA, LLC

Version 1

-- Install the Chain Tensioner Lever T40243 -arrows-.

-- Lift up the locking wedge for the chain tensioner by inserting a scriber or a suitable screwdriver into the chain tensioner opening in direction of -arrow 1-. Slowly press and hold the Chain Tensioner Lever T40243 in direction of -arrow 2-.

-- Secure the chain tensioner using the Locking Pin (3 pc.) T40011.

Fig 33: Securing Chain Tensioner

Courtesy of AUDI OF AMERICA, LLC

Version 2

Fig 34: Identifying Version 2

Courtesy of AUDI OF AMERICA, LLC

-- Install the Chain Tensioner Lever T40243 -arrows-.

-- Press the chain tensioner locking ring -1- together and slowly press and hold the Chain Tensioner Lever T40243 in direction of -arrow-.

-- Secure the chain tensioner with the Tensioner Locking Tool T40267.

Fig 35: Securing Chain Tensioner

Courtesy of AUDI OF AMERICA, LLC

All Versions

Fig 36: Bolt Camshaft Locating Tool

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Chain Tensioner Lever T40243.

-- Bolt the Camshaft Locks - Component 2 T40271/2 to the cylinder head and push the chain sprocket splines in the direction of -arrow 2-. If necessary, turn the intake camshaft with a wrench in direction of -arrow 1-.

-- Remove the bolt -1- and guide the tensioning rail -2- downward.

Fig 37: Identifying Tensioning Rail Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Install the Camshaft Lock - Component 1 T40271/1 on the cylinder head.

Fig 38: Attach T40271/1 To Cylinder Head

Courtesy of AUDI OF AMERICA, LLC

-- Turn the exhaust camshaft with the wrench in the direction of -arrow 1- and slide the Camshaft Locks T40271/1 into the chain sprocket splines in direction of -arrow 2-.

-- Remove the upper guide track -arrow- by unlocking the latch with a screwdriver and pushing the guide track forward.

Fig 39: Identifying Upper Guide Track

Courtesy of AUDI OF AMERICA, LLC

-- Remove camshaft timing chain from chain sprockets.

CAUTION:

Risk of damaging valves and piston crowns.

If the camshaft timing chain was removed from the cylinder head, then the crankshaft may not be turn further.

-- Remove the bolts -arrows-.

Fig 40: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

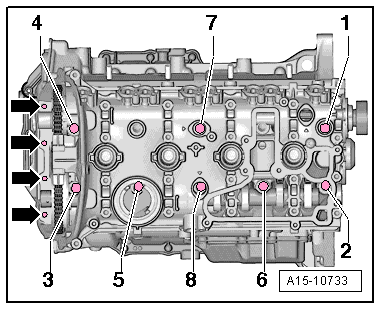

-- Remove the cylinder head bolts with the Polydrive Bit Drive Socket T10070 in the order -1 through 8-.

NOTE:

Make sure all wires and cables are disconnected.

Pay attention to the tension and guide tracks when lifting the cylinder head.

-- Remove the cylinder head.

-- Lay the cylinder head on a soft surface, such as foam.
