Special Tools

Fig 1: Identifying Special Tools -- Camshaft Adjuster, Removing And Installing

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Socket T40080
• Camshaft Clamp T10252
• Toothed Belt Tensioner T10020
• Locking Pin T10115

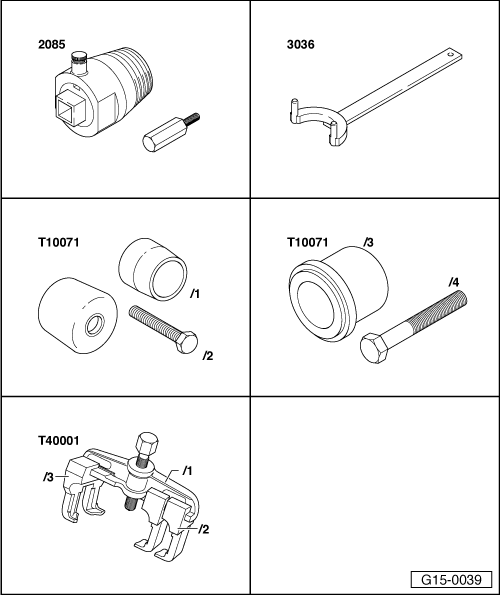

Fig 2: Identifying Special Tools -- Sealing Ring For Exhaust Camshaft, Replacing

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Seal Puller - General Useage 2085
• Retainer 3036
• Assembly Tool T10071
• Puller T40001
• M12 nut, quantity: 2

Fig 3: Identifying Special Tools -- Valve Stem Seals, Cylinder Head Installed, Replacing

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Spark Plug Removal Tool 3122 B
• Valve Seal Removal Tool 3364
• Valve Stem Seal Driver 3365
• Valve Cotters Asm/Dis-Asm Device VAS 5161 with Guide Plate for 2.0L FSI Engine VAS 5161/19B
• Adapter T40012

Special tools and workshop equipment required

• Spark Plug Removal Tool 3122 B
  Fig 4: Identifying Spark Plug Wrench 3122 B

  Courtesy of AUDI OF AMERICA, LLC
• Compression Tester V.A.G 1763
  Fig 5: Identifying Compression Tester V.A.G 1763

  Courtesy of AUDI OF AMERICA, LLC
• Dial Gauge Holder VW 387
  Fig 6: Identifying Dial Gauge Holder VW 387

  Courtesy of AUDI OF AMERICA, LLC
• Dial Gauge 0-10 mm VAS 6079
  Fig 7: Identifying Dial Gauge VAS 6079

  Courtesy of AUDI OF AMERICA, LLC
• Engine Support Bridge 10 - 222 A
  Fig 8: Identifying Engine Support Bridge 10 - 222 A

  Courtesy of AUDI OF AMERICA, LLC
• Shackle 10 - 222 A /12
  Fig 9: Identifying Shackle 10 - 222 A/12

  Courtesy of AUDI OF AMERICA, LLC
• Adapter T40093/6 qty. 2
  Fig 10: Identifying Engine Support Supplement Set T40093

  Courtesy of AUDI OF AMERICA, LLC
• Hose Clip Pliers V.A.G 1921
  Fig 11: Identifying Hose Clamp Pliers V.A.G 1921

  Courtesy of AUDI OF AMERICA, LLC
• Polydrive Bit and Drive Socket T10070
  Fig 12: Identifying Socket T10070

  Courtesy of AUDI OF AMERICA, LLC
• Hose Clamps Up to 25 mm Dia. 3094
  Fig 13: Identifying Hose Clamps 3094

  Courtesy of AUDI OF AMERICA, LLC
• Engine and Transmission Holder VAS 6095
  Fig 14: Identifying Engine and Transmission Holder VAS 6095

  Courtesy of AUDI OF AMERICA, LLC
• Not illustrated:
• Cylinder Head Tensioning Device VAS 6419
