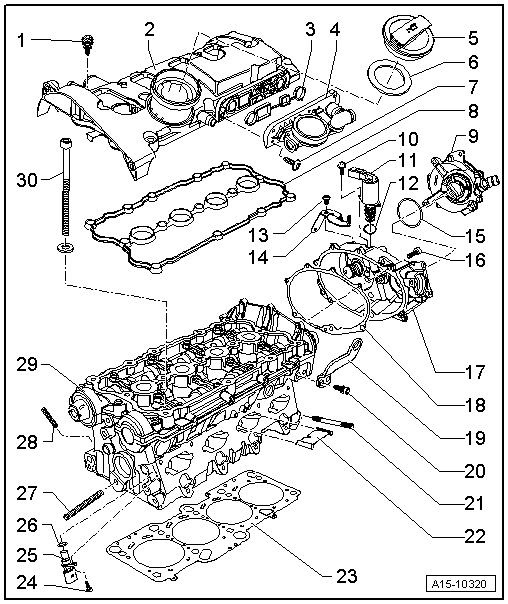

Cylinder Head Cover And Cylinder Head Overview
WARNING: This page is about a different variant/trim than selected.
- Bolt
- Replace if the seal is damaged
- Tightening sequence, refer to Fig 2
- Cylinder Head Cover
- Gasket
- Replace if damaged or leaking
- Pressure Regulator Valve
- For crankcase ventilation
- Cover
- Gasket
- Replace if damaged or leaking
- Bolt
- 4 Nm
- Cylinder Head Cover Gasket
- Replace if damaged or leaking
- Vacuum Pump
- Bolt
- 4 Nm
- Camshaft Adjustment Valve 1 -N205-
- Removing and installing, refer to CAMSHAFT ADJUSTMENT VALVE 1
- Seal
- Removing and installing
- Bolt
- 9 Nm
- Harness Mount
- Seal
- Replace if damaged or leaking
- Bolt
- 9 Nm
- Housing
- For the drive chain
- Gasket
- Replace
- Engine Lifting Eye
- Bolt
- 23 Nm
- Threaded Pin
- 9 Nm
- For intake manifold
- Partition Plate
- Cylinder Head Gasket
- Replace
- Note installation position: The part number faces the cylinder head
- Bolt
- 9 Nm
- Camshaft Position Sensor -G40-
- Seal
- Threaded Pin
- 15 Nm
- For the tensioning roller
- Threaded Pin
- 17 Nm
- For exhaust manifold
- Cylinder Head
- Removing and Installing, refer to CYLINDER HEAD
- Refer toFig 4
- Refer toFig 5
- After replacing, change coolant and engine oil
- Bolt
- Replace
- Follow the sequence when loosening LOOSEN THE CYLINDER HEAD BOLTS IN THE FOLLOWING SEQUENCE -1 THROUGH 10-
- Tightening specification and sequence, refer to Fig 3
| -- Tighten the bolts in the following sequence: -1 to 14- in 2 steps:-- Install bolts by hand as far as the stop.-- Tighten to 10 Nm. |
| -- Tighten bolts in 3 stages in -1 to 10- sequence as follows:-- Tighten to 40 Nm.-- Tighten an additional 90°.-- Tighten an additional 90°. |
-- Check the cylinder head in several places for distortion using a straight edge and a feeler gauge.
- Maximum permissible distortion: 0.05 mm.
Resurfacing cylinder head (face grinding) is only permissible to minimum dimension -a-.
- Minimum dimension -a- = 139.20 mm.
