Special Tools

Fig 1: Identifying Special Tools -- Engine, Securing To Assembly Stand

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Engine Sling 2024 A
• Shop Crane VAS 6100
• Engine and Transmission Holder VAS 6095

Fig 2: Identifying Special Tools

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Drip Tray VAS 6208
• Engine/Transmission Jack V.A.G 1383 A
• Hose Clip Pliers V.A.G 1921
• Step Ladder VAS 5085
• Engine/Trans. Support T10012
• Pry Lever - Rmv Outside Mirror 80 - 200

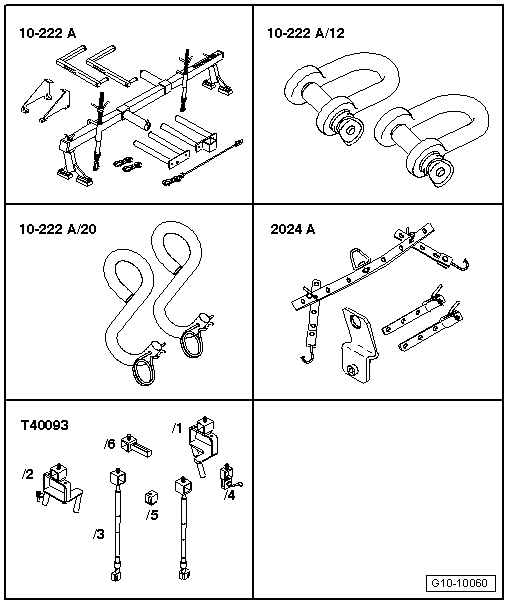

Fig 3: Identifying Special Tools

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Engine Support Bridge 10 - 222 A
• Shackle 10 - 222 A /12
• Special Hook 10 - 222 A /20
• Engine Sling 2024 A
• Adapter T40093/6 qty. 2

Special tools and workshop equipment required

• Ring Spanner 7-Piece Set 3337
  Fig 4: 3337 Oxygen Sensor Ring Spanner

  Courtesy of AUDI OF AMERICA, LLC
• Locking Pin T10060A
  Fig 5: Identifying Locking Pin T10060 A

  Courtesy of AUDI OF AMERICA, LLC
• Puller T10369
  Fig 6: Identifying Puller T10369

  Courtesy of AUDI OF AMERICA, LLC
• Shop Crane VAS 6100
  Fig 7: Identifying Shop Crane VAS 6100

  Courtesy of AUDI OF AMERICA, LLC
• Not illustrated:
• Engine Bung Set VAS 6122
