Engine, Securing To Engine And Transmission Holder
WARNING: This page is about a different variant/trim than selected.
Special tools and workshop equipment required
- Engine Sling 2024 A
- Shop Crane VAS 6100
- Engine and Transmission Holder VAS 6095
Procedure
- Transmission separated from engine.

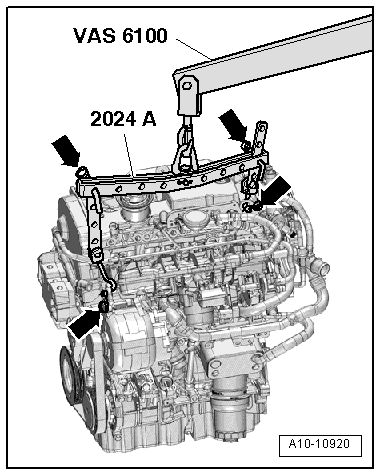

-- Engage the 2024 A on engine and on the VAS 6100 as shown in the illustration.
NOTE:
To be aligned to the center of gravity on the engine assembly, the hole rails of the lifting hook must be inserted as shown in the illustration.
WARNING:
Loose engine support bridge components could cause an accident.
- Secure the mounting hooks and pins on the engine support bridge using securing pins -arrows-.
-- Raise the engine from the VAS 6100 using the T10012.
-- Secure the transmission side of the engine to the VAS 6095 as illustrated.
