Engine And S-TRONIC Transmission, Separating

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

Procedure

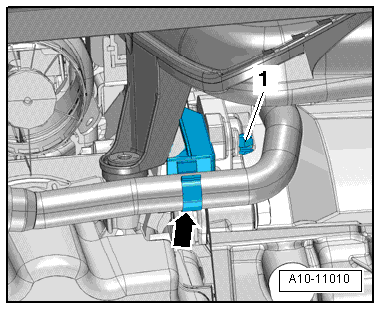

-- Free up the coolant hose -arrow-.

Fig 1: Free Up Wiring Harnesses

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wiring harnesses -arrows- and the electrical connector -1- at the bracket.

Fig 2: Identifying Wiring Harnesses And Connector On Hot Side Charge Air Pipe

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1- and -2- and then remove the starter from the transmission.

Fig 3: Identifying Starter Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the coolant hoses -arrows- from the ATF cooler.

Fig 4: Transmission Oil Cooler Coolant Hoses

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the bolts -1- and remove the bolts -2-.

Fig 5: Identifying Oil Level Thermal Sensor Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Attach the 2024 A hooks to the transmission lifting eyes and secure it with the securing pin -arrow-.

Fig 6: Installing 2024 A To Transmission

Courtesy of AUDI OF AMERICA, LLC

-- Attach the VAS 6100 and 10 - 222 A /20 to the 2024 A hook.

-- Remove engine to transmission connecting bolts -1, 3, 5, 6, 7, 8, 9, 10-.

Fig 7: Identifying Direct Shift Automatic Transmission To Engine Mounting Bolts

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore -2, 4 and A-.

-- Remove transmission from engine.
