Fastener Tightening Specifications

WARNING: This page is about a different variant/trim than selected.
Component Bolt Size Nm
Air Guide Pipe, Nut/Bolt - 10
Bearings For charge air cooler - 5
Bracket to Turbocharger5, 6 - 30
Bracket to Turbocharger7 - 23
Charge Air Pressure Sensor - 5
Connection - 7
Coolant Supply Pipe
-Bolt - 23
-Banjo Bolt - 35
Fastening Strip1, 2 - 30
Heat Shield - 9
Oil Return Pipe3 - 9
Oil Return Pipe4 -
-Bolt - 9
-Banjo Bolt - 35
Oil Supply Pipe
-Bolt - 9
-Banjo Bolt - 30
Turbocharger, Nut1, 2 - 21
Turbocharger Recirculating Valve - 7
Turbocharger Vacuum Diaphragm
-Bolts1 - 9
-Lock Nut8 - 9
Ring Connection, Banjo Bolt - 8
Wastegate Bypass Regulator Valve - 3
  • 1 Replace
  • 2 Coat the exhaust manifold threaded pins with hot bolt paste.

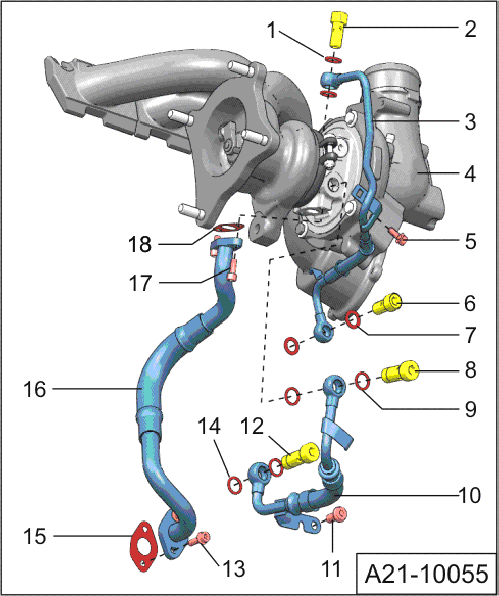

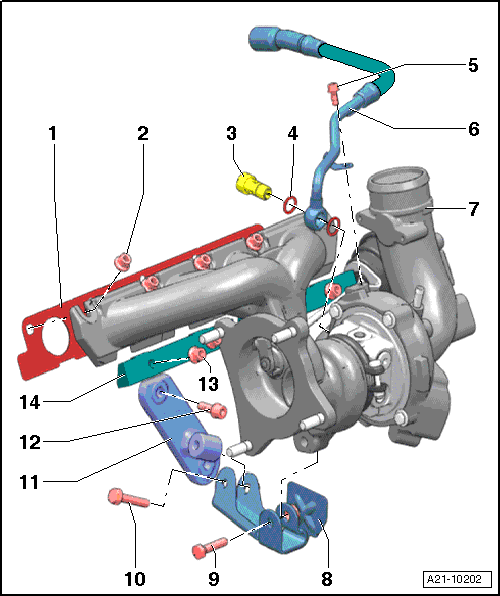

  • 3 For bolt tightening clarification, refer to item Figure and see items -13, 16 and 18-
  • 4 For bolt tightening clarification, refer to item Figure and see items -3, 5 and 6-
  • 5 For bolt tightening clarification, refer to item Figure and see items -8 and 9-
  • 6 Insert with hot bolt paste
  • 7 For bolt tightening clarification, refer to item Figure and see items -11 and 12-
  • 8 Secure with sealing wax after tightening
