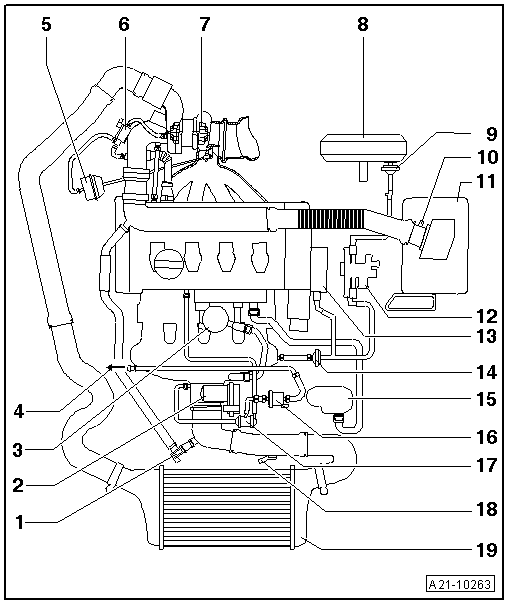

Hose Diagram
WARNING: This page is about a different variant/trim than selected.
-- Follow the guidelines for cleanliness. Refer to CLEAN WORKING CONDITIONS .
NOTE:
Before testing or performing a repair, check all air guide pipes and hoses and all vacuum lines for leaks and secure seating.
- Turbocharger Recirculating Valve -N249-
- Throttle Valve Control Module -J338-
- Pressure Regulator Valve for the Crankshaft Housing Ventilation
- To the EVAP Canister
- Pressure Cell
- Wastegate Bypass Regulator Valve -N75-
- Turbocharger
- Brake Booster
- Non-Return Valve
- Mass Airflow (MAF) Sensor -G70-
- Air Filter Housing
- Coolant Connection
- Vacuum Pump
- Non-Return Valve
- Oil Filter Bracket
- Evaporative Emission (EVAP) Canister Purge Regulator Valve 1 -N80-
- Double Check-Valve
- Charge Air Pressure Sensor -G31-
- Charge Air Cooler
