Special Tools

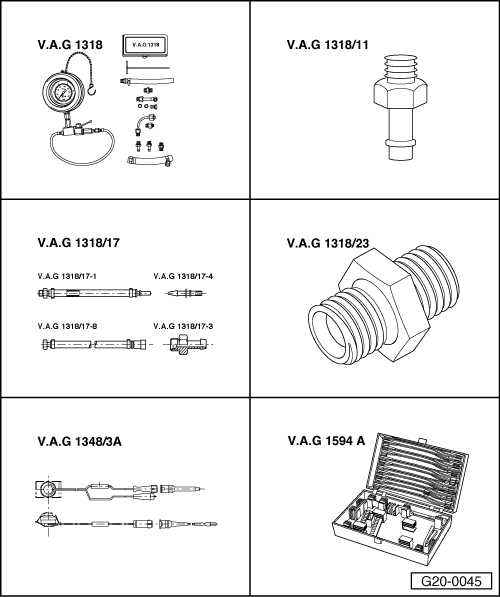

Fig 1: Identifying Special Tools -- Fuel Pressure And Residual Pressure Before High Pressure Pump, Checking

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Pressure gauge K-Jetronic V.A.G 1318
• Adapter V.A.G 1318/11
• Adapter V.A.G 1318/17-1 from adapter kit V.A.G 1318/17
• Double connection V.A.G 1318/23
• Remote control V.A.G 1348/3 A with adapter cable V.A.G 1348/3-3
• Connector test kit V.A.G 1594 C or V.A.G 1594 A

Special tools and workshop equipment required

• Adapter cable -V.A.G 1598/39-1-
• Adapter cable -V.A.G 1598/39-2-
• Test box -V.A.G 1598/42-
  Fig 2: Identifying Adapter Cable V.A.G 1598/39 & Test Box V.A.G 1598/42

  Courtesy of AUDI OF AMERICA, LLC
• Assembly tool T10118
  Fig 3: Identifying Assembly Tool T10118

  Courtesy of AUDI OF AMERICA, LLC
• Socket wrench insert 27 mm VAS 5301/7
  Fig 4: Identifying VAS 5301/7

  Courtesy of AUDI OF AMERICA, LLC
• Tool set with puller T10133
  Fig 5: Identifying Tool Set T10133

  Courtesy of AUDI OF AMERICA, LLC
• Ring spanner 7-piece set for oxygen sensor 3337
  Fig 6: Identifying Oxygen Sensor Ring Spanner 3337

  Courtesy of AUDI OF AMERICA, LLC
• Heat gun -1- (from the wiring harness repair kit VAS 1978)
  Fig 7: Identifying Heat Gun, Adapter Nozzle And Pliers

  Courtesy of AUDI OF AMERICA, LLC
